Available Stock: 17

Selected accessories will also be added to cart

$10.36 / Each

Quantity:

6204-2RS, 20mm x 47mm x 14mm

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	62042RDC3
Group	Deep Groove Ball Bearings

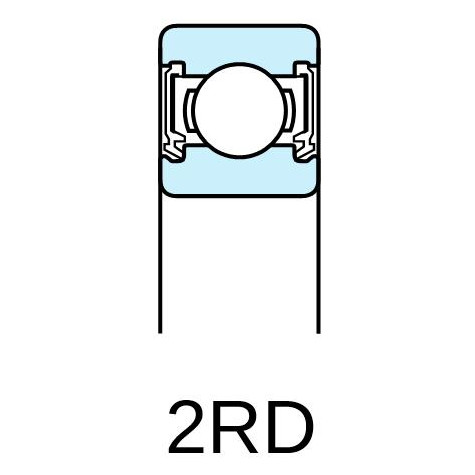

Type	Extremely Light Contact Sealed (2RD)

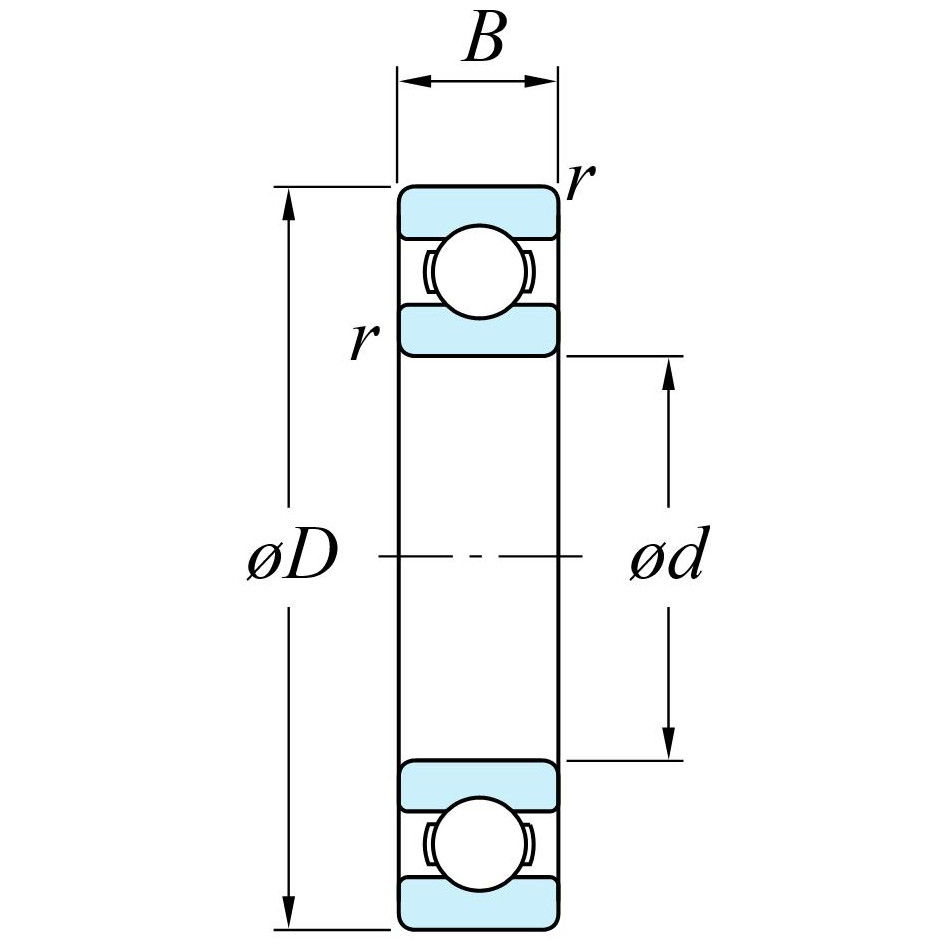

Bore / Inside Diameter (d)	20 mm
Housing / Outside Diameter (D)	47 mm
Width (B)	14 mm
Minimum Radius (r)	1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 12.8 kN C_0r 6.65 kN
Limiting Speeds (Grease Lubrication)	14,000 min^-1
Mass	0.106 kg 0.24 lbs
UPC	4549250154232
Country of Manufacture	Japan
