Available Stock: 10

Selected accessories will also be added to cart

$13.28 / Each

Quantity:

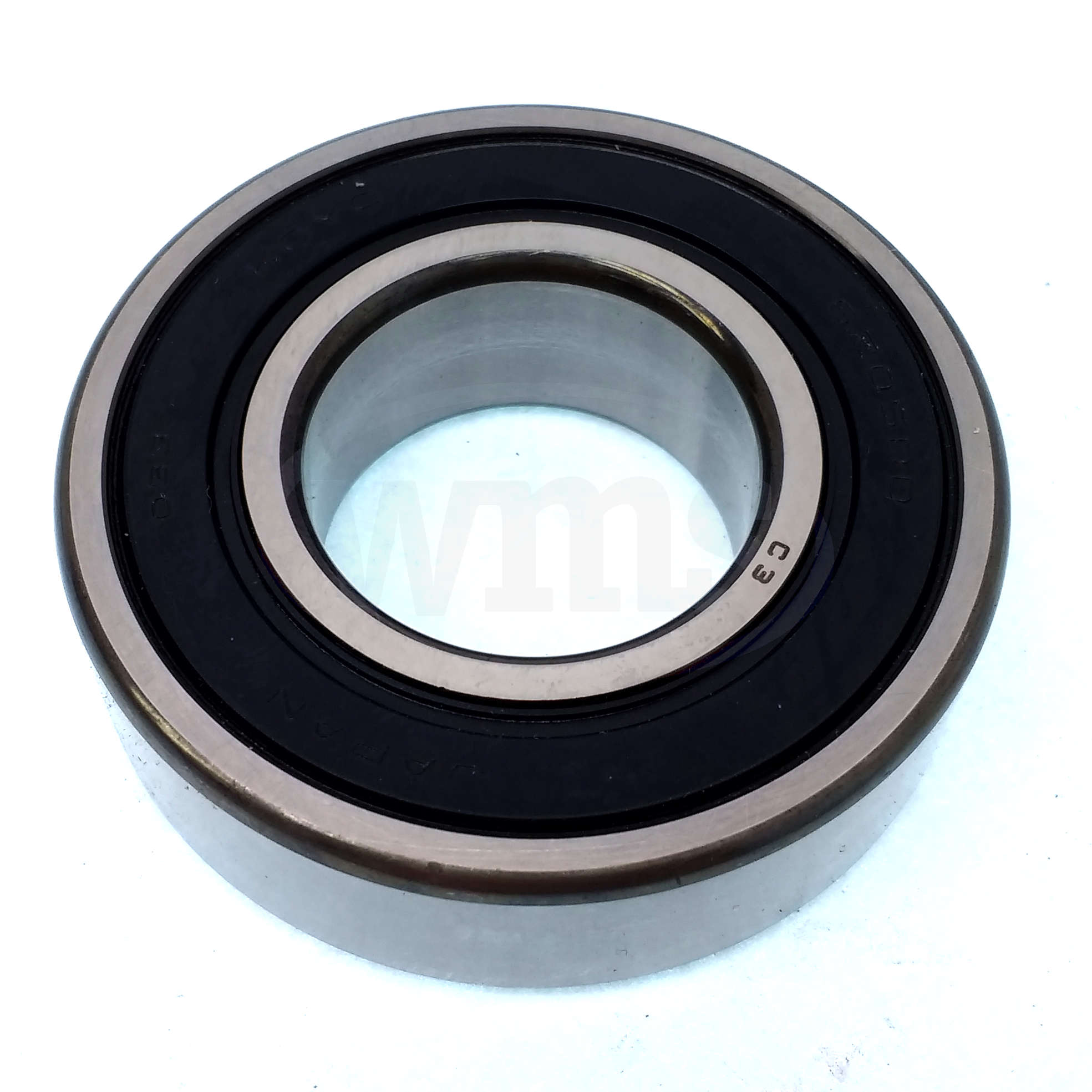

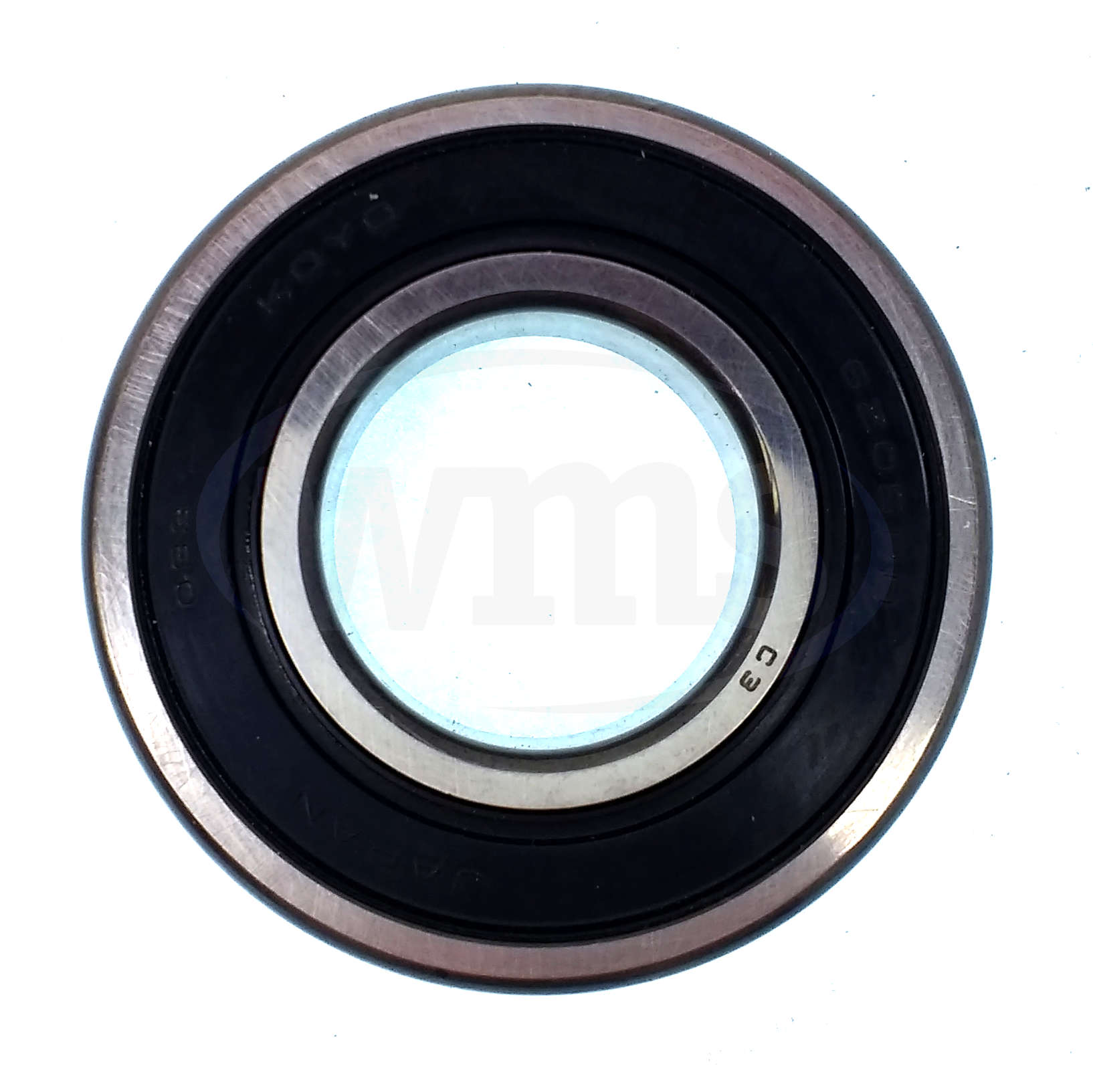

6205-2RS

Brand	Koyo Seiko Company, LTD

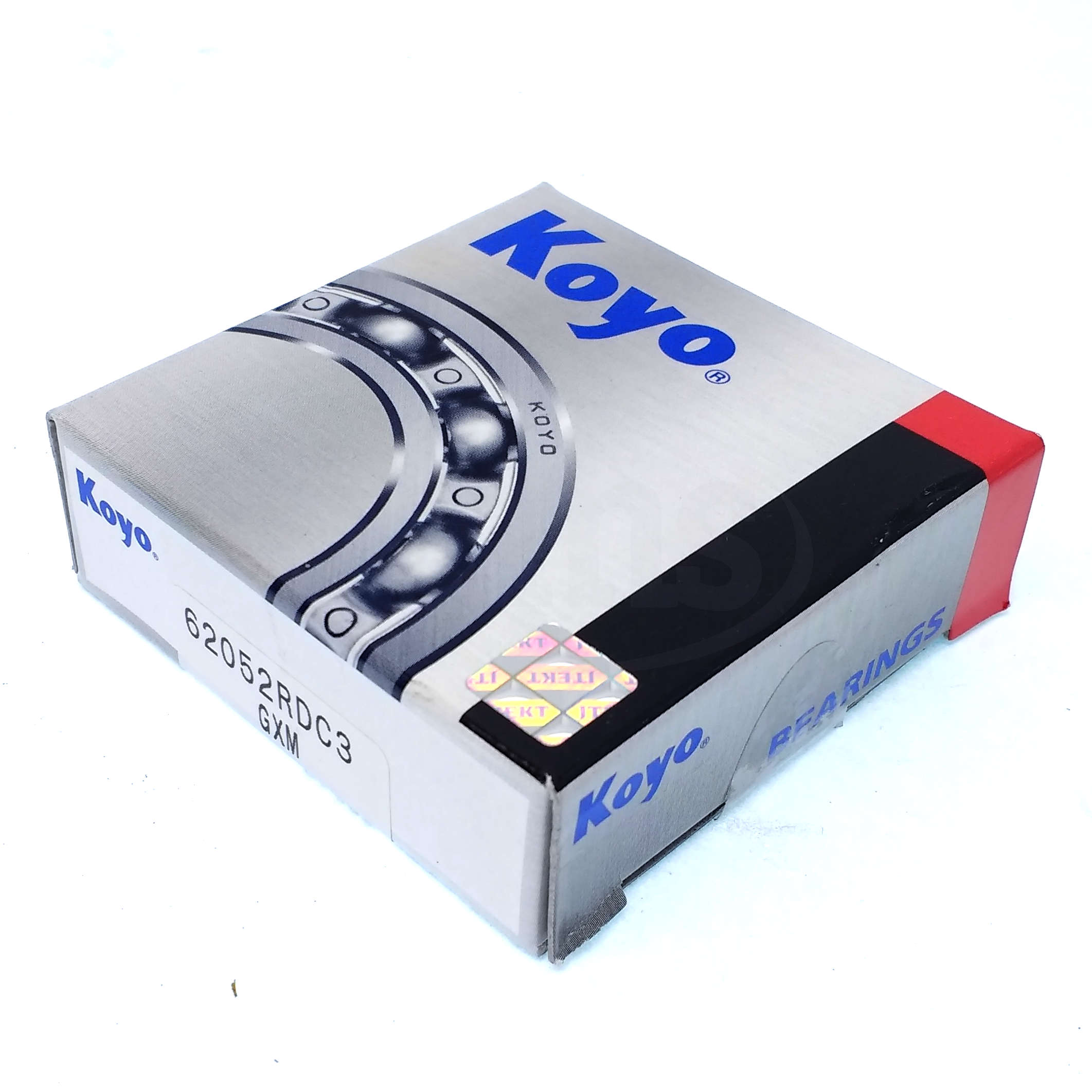

Manufacturer Part Number	62052RDC3
Group	Deep Groove Ball Bearings
Type	Extremely Light Contact Sealed (2RD)

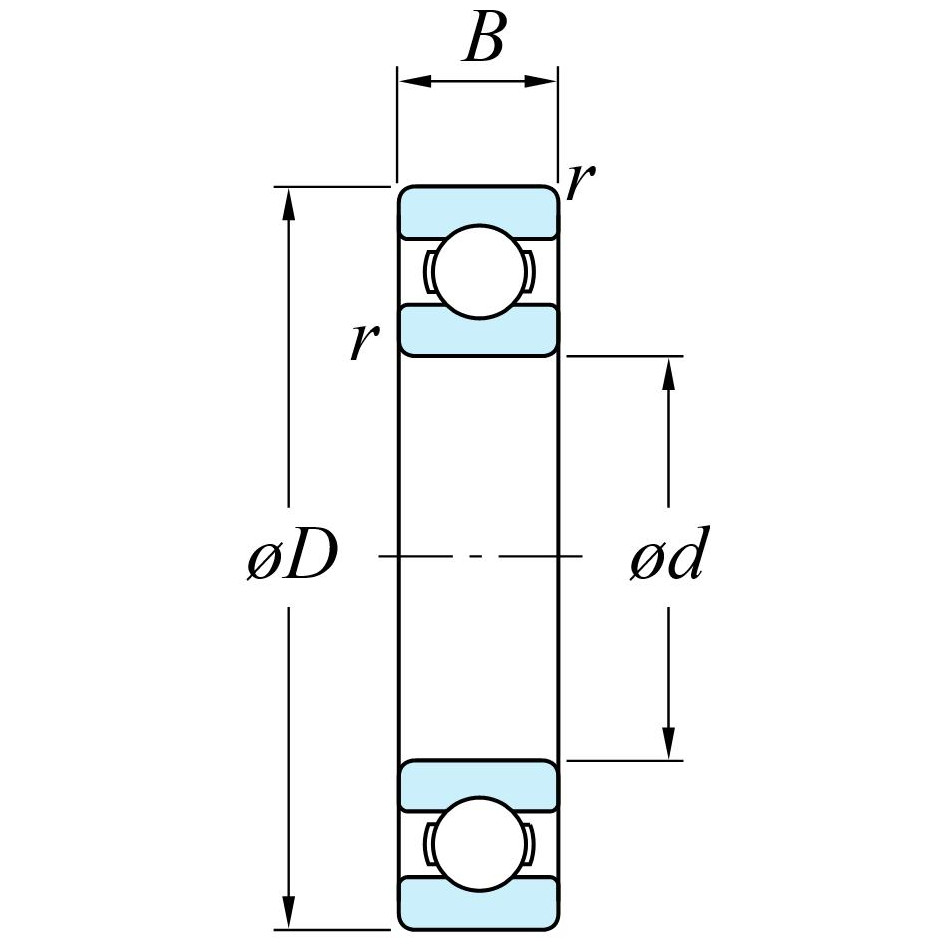

Bore / Inside Diameter (d)	25 mm
Housing / Outside Diameter (D)	52 mm
Width (B)	15 mm
Minimum Radius (r)	1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 14.0 kN C_0r 7.85 kN
Limiting Speeds (Grease Lubrication)	12,000 min^-1
Mass	0.128 kg 0.29 lbs
UPC	4549250155338
Country of Manufacture	Japan
