/Products/Ball Bearings/6200 Series Ball Bearings/62062RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6206-2RS

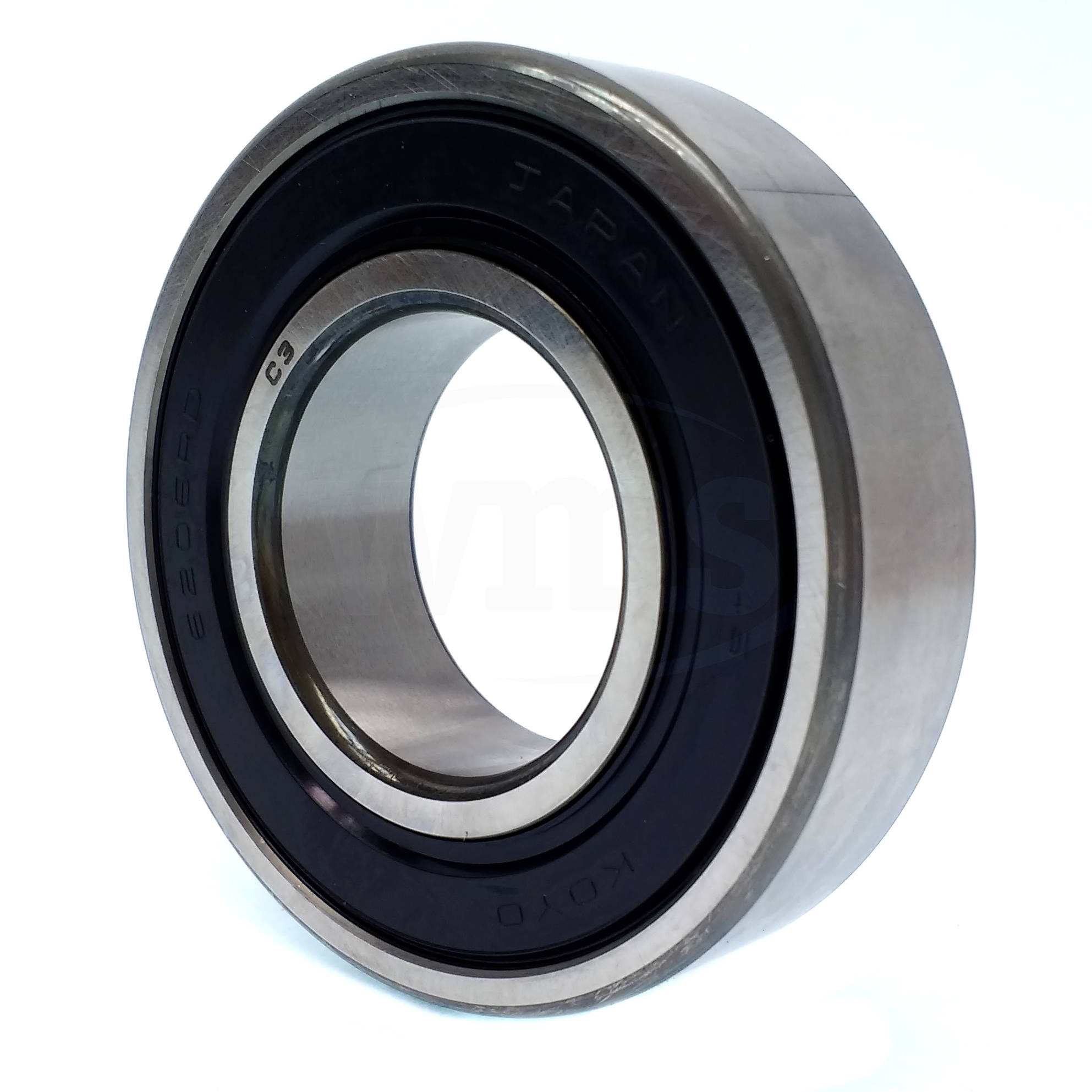

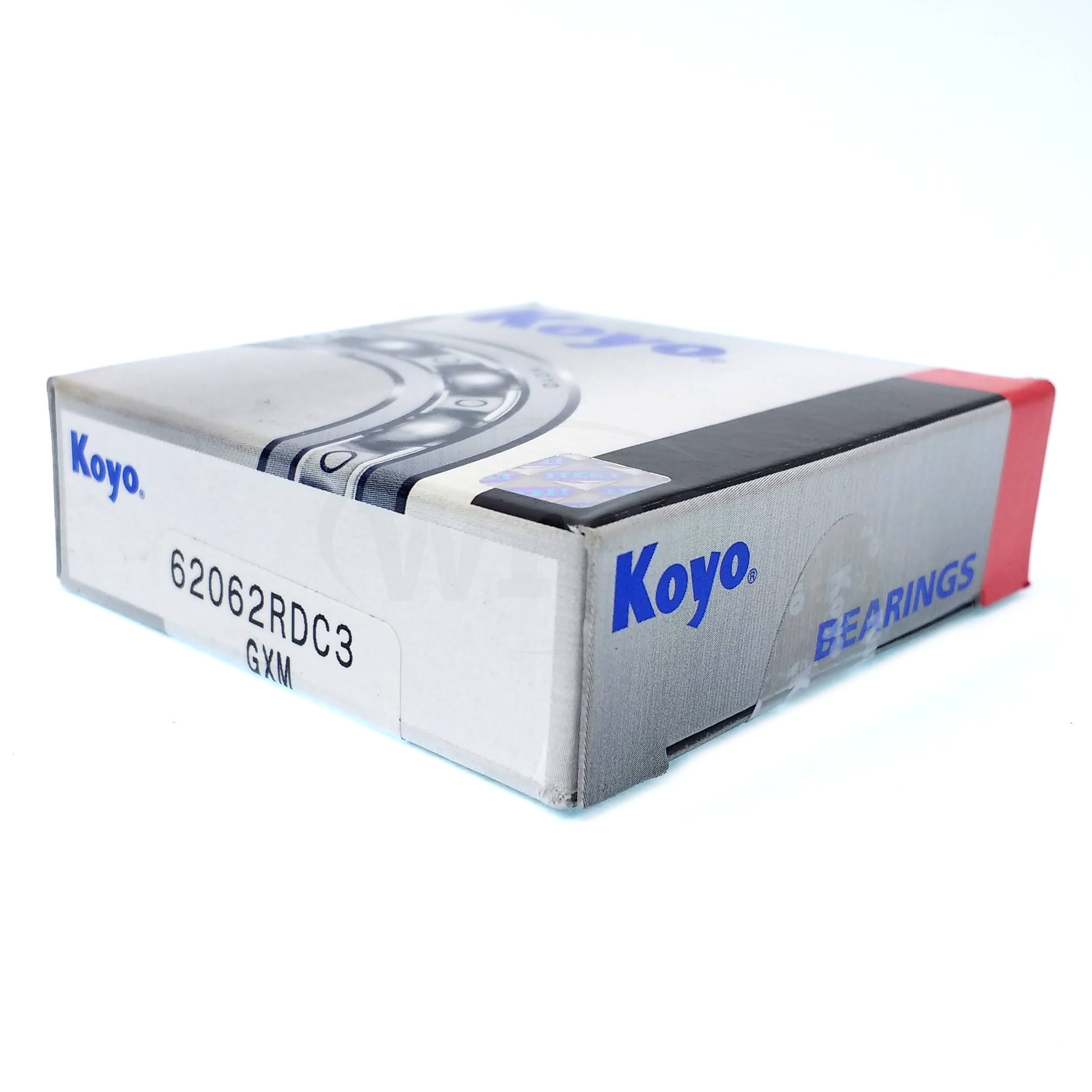

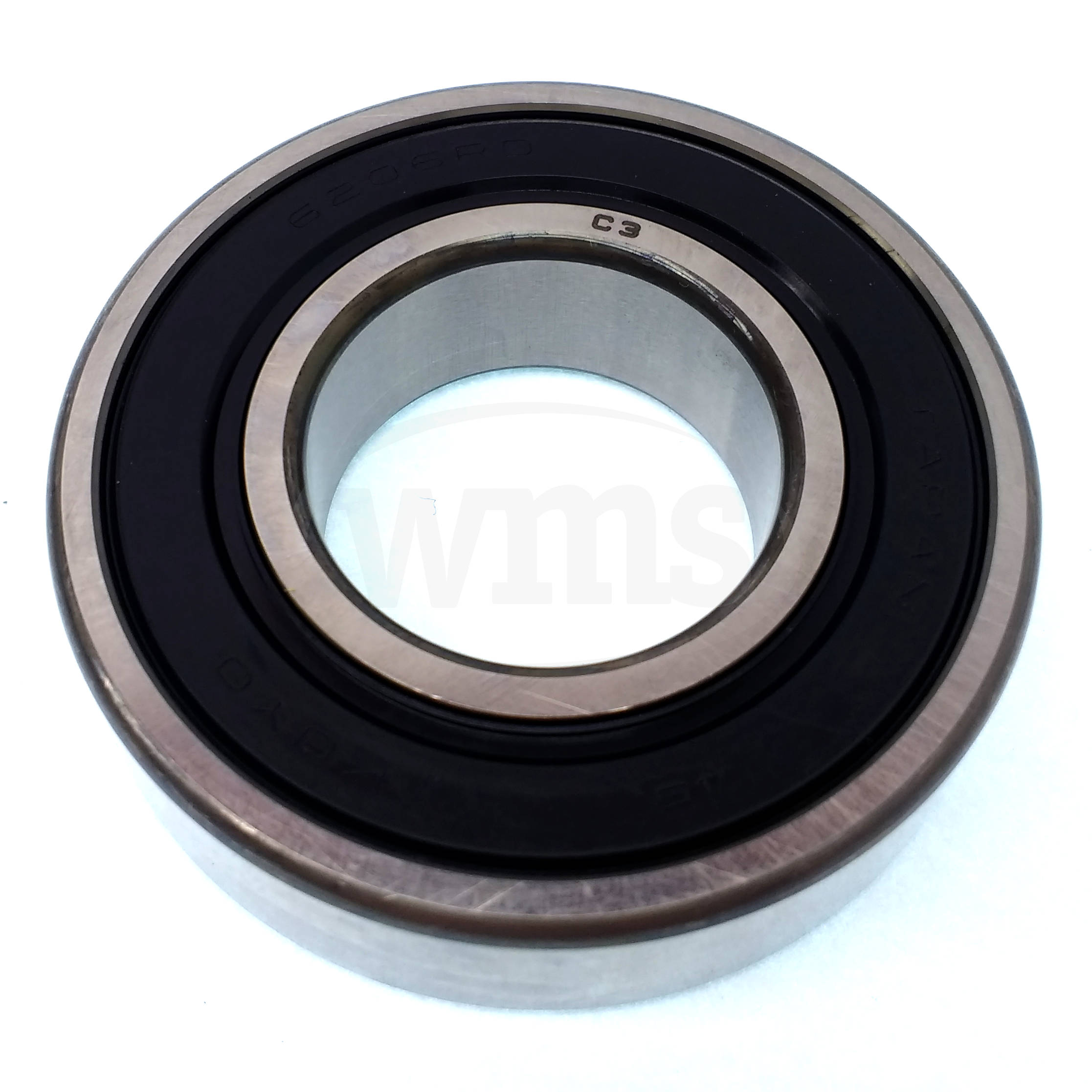

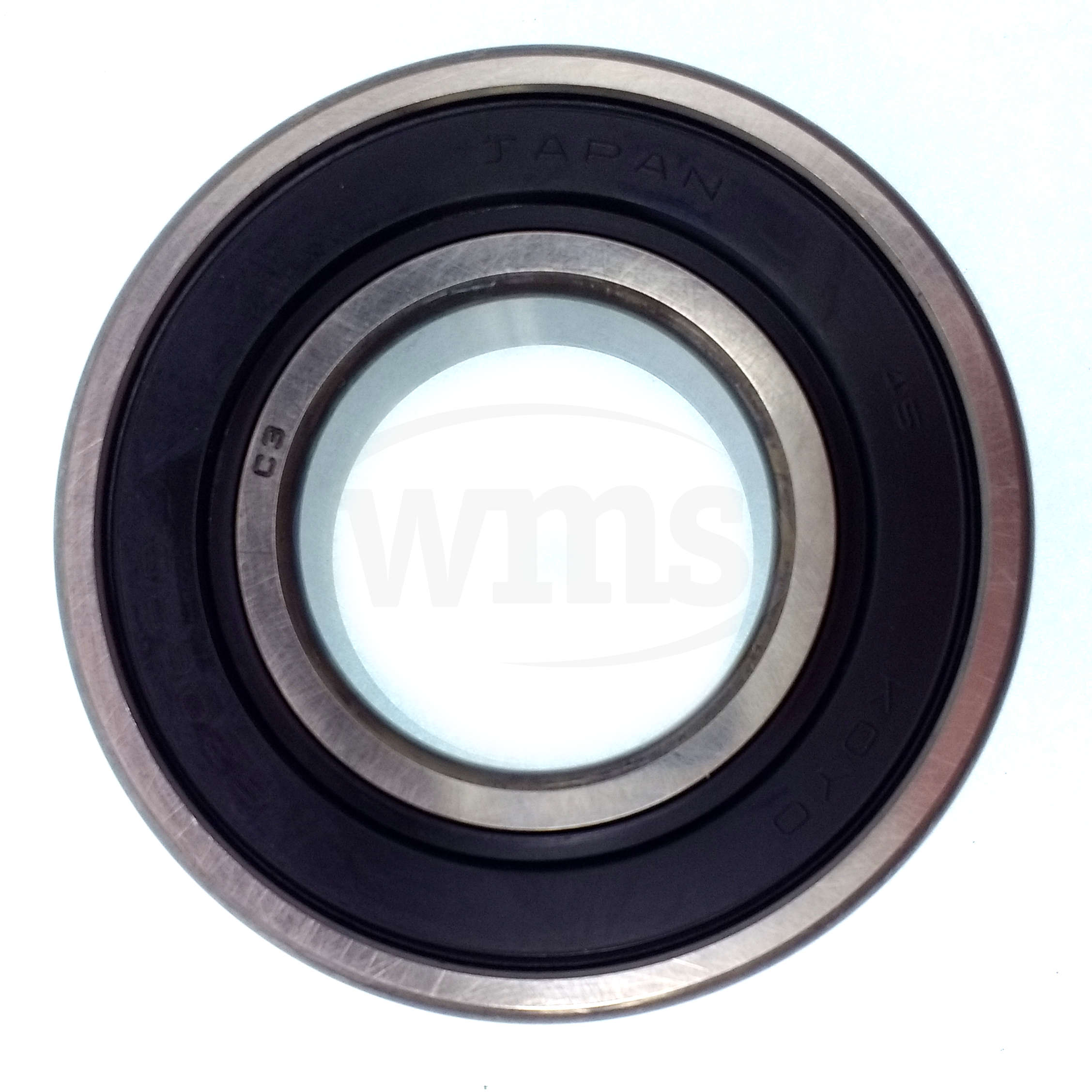

62062RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 62062RDC3

Available Stock: 12
Selected accessories will also be added to cart
$17.12 / Each
Quantity:
6206-2RS, 30mm x 62mm x 16mm

Specifications

BrandKoyo Seiko Company, LTD
Manufacturer Part Number62062RDC3
GroupDeep Groove Ball Bearings

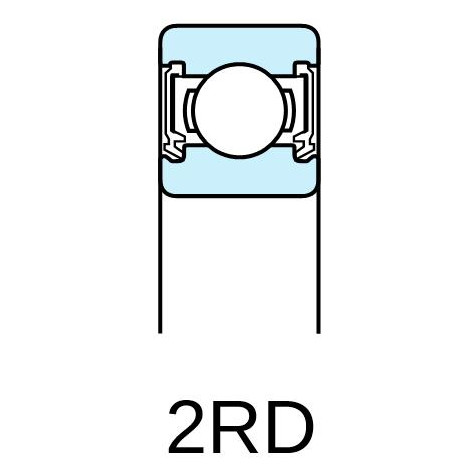

TypeExtremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d)30 mm
Housing / Outside Diameter (D)62 mm
Width (B)16 mm
Minimum Radius (r)1 mm
Operating Temperature-30 to 110°C
Cage TypePressed Steel Cage
ConfigurationSingle-row
TolerancesJIS B 1514
Allowable Misalignment.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load RatingCr 19.5 kN
C0r 11.3 kN
Limiting Speeds (Grease Lubrication)9,900 min-1
Mass0.199 kg
0.44 lbs
UPC4549250156359
Country of ManufactureJapan
Type
Ball Bearing
