Available Stock: 12

Selected accessories will also be added to cart

$13.96 / Each

Quantity:

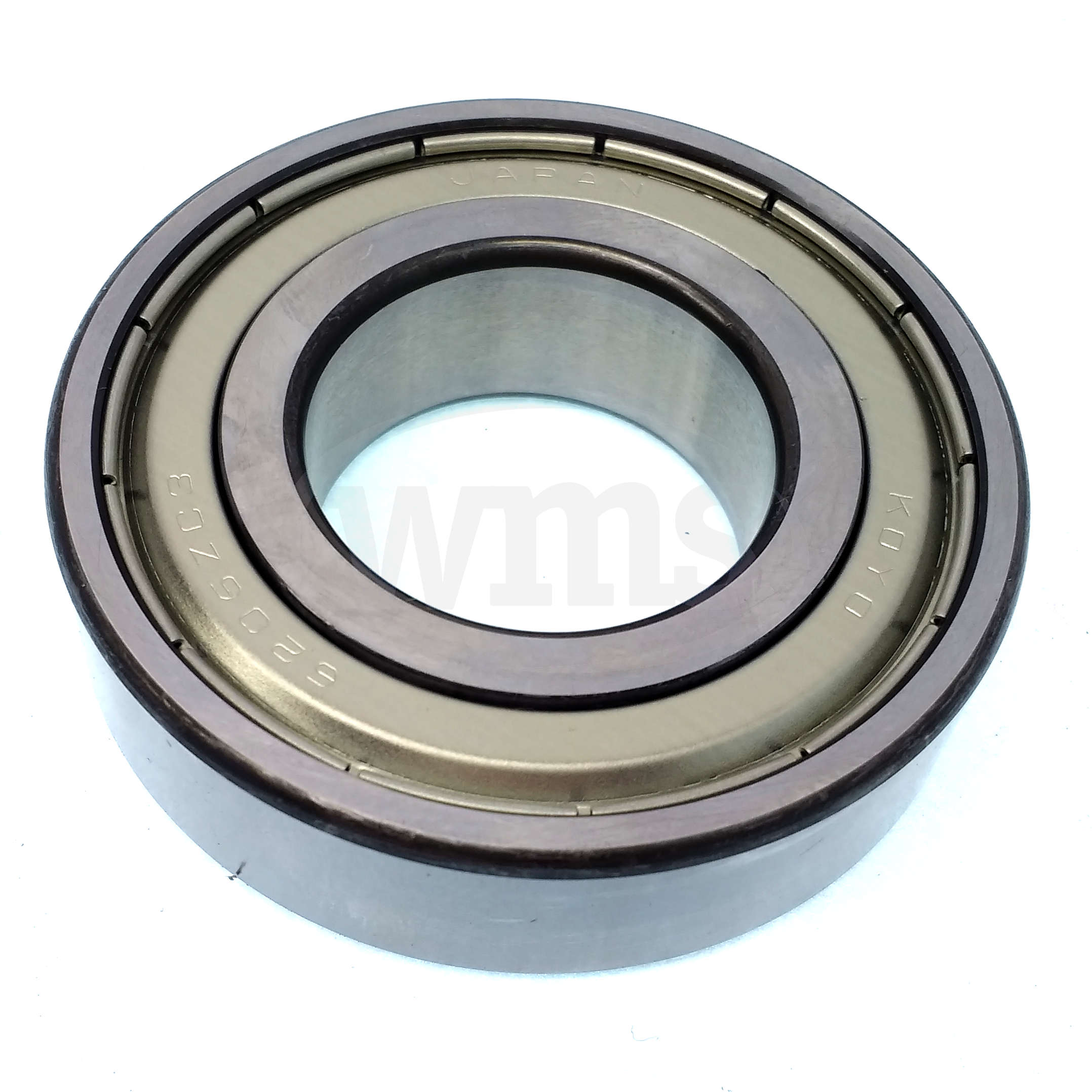

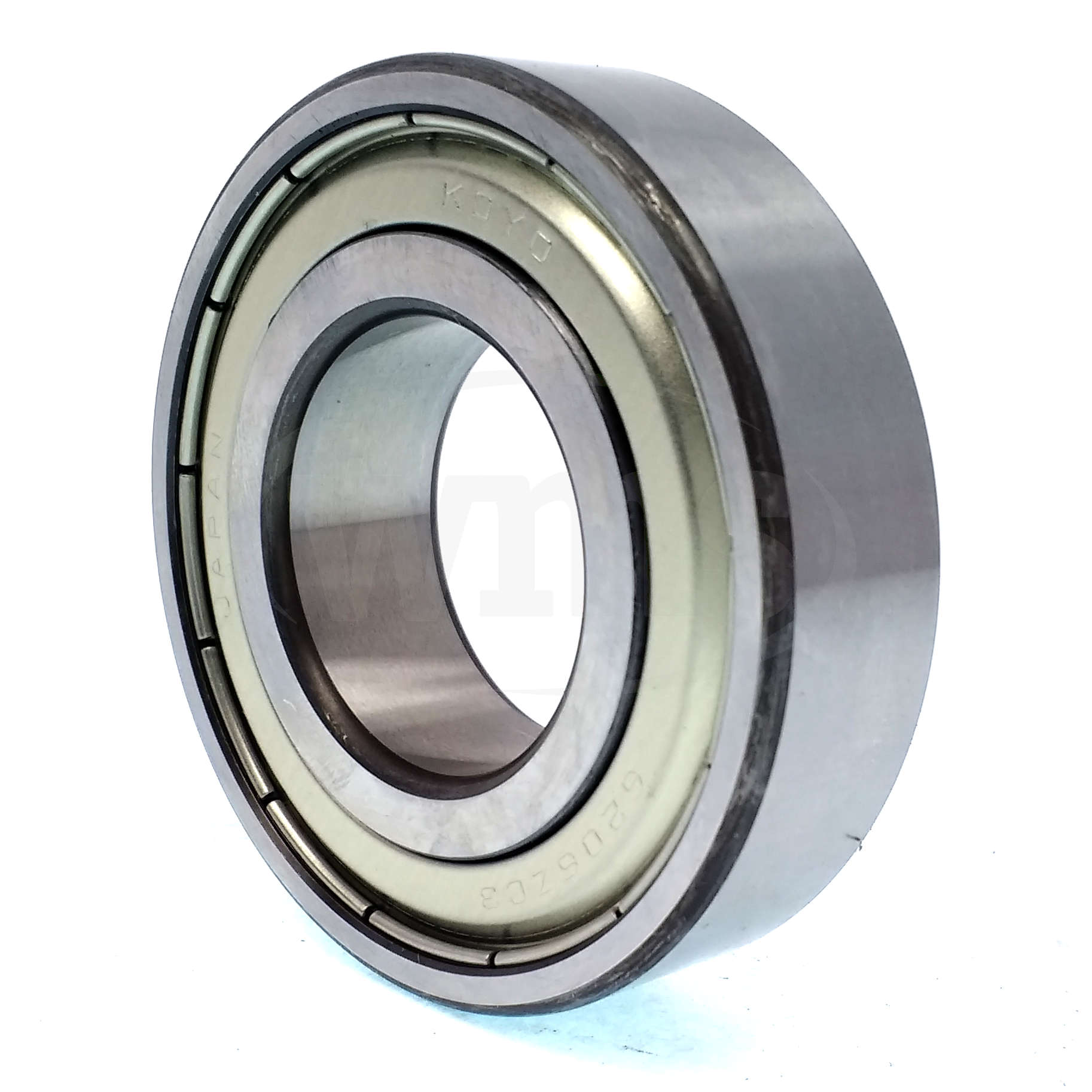

6206-ZZC3, 30mm x 62mm x 16mm

Accessories

Select any of the accessories below to purchase them with this inventory item:

$24.44 / Each

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	6206ZZC3
Group	Deep Groove Ball Bearings

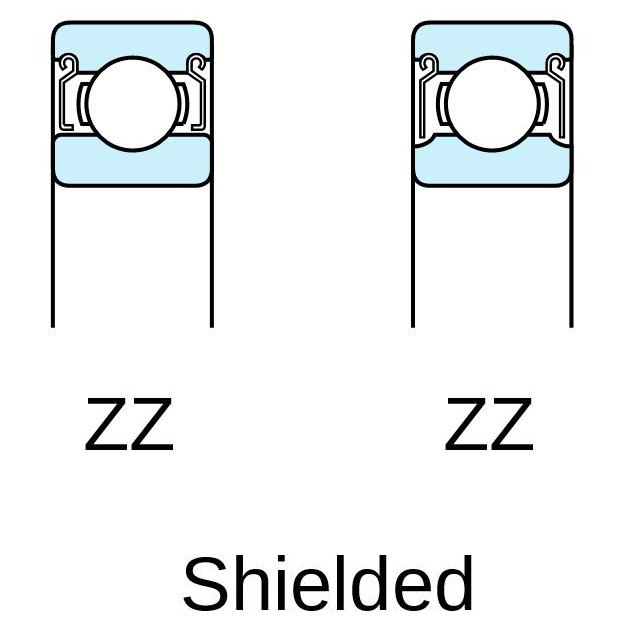

Type	Shielded (ZZ)
Bore / Inside Diameter (d)	30 mm
Housing / Outside Diameter (D)	62 mm
Width (B)	16 mm
Minimum Radius (r)	1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 19.5 kN C_0r 11.3 kN
Fatigue Load Limit (C_u)	0.800 kN
Factor (f0)	13.9
Limiting Speeds (Grease Lubrication)	11,000 min^-1
Shaft Shoulder Mounting Dimension (d_a)	35 mm Minimum 37.5 mm Maximum
Housing Shoulder Mounting Dimension (D_a)	57 mm Maximum
Shoulder Radius (r_a)	1 mm Maximum
Mass	0.199 kg 0.44 lbs
UPC	4549250156199
Country of Manufacture	Japan
