Available Stock: 9

Selected accessories will also be added to cart

$32.94 / Each

Quantity:

6208-2RS, 40mm x 80mm x 18mm

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	62082RDC3
Group	Deep Groove Ball Bearings

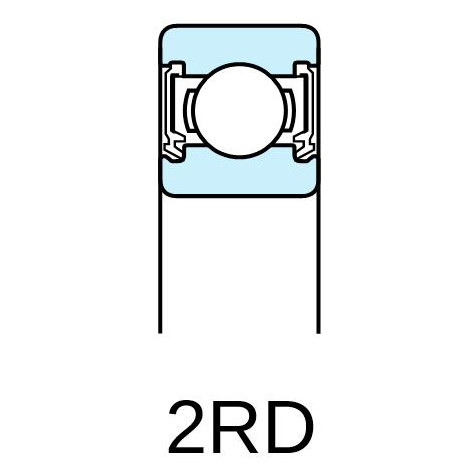

Type	Extremely Light Contact Sealed (2RD)

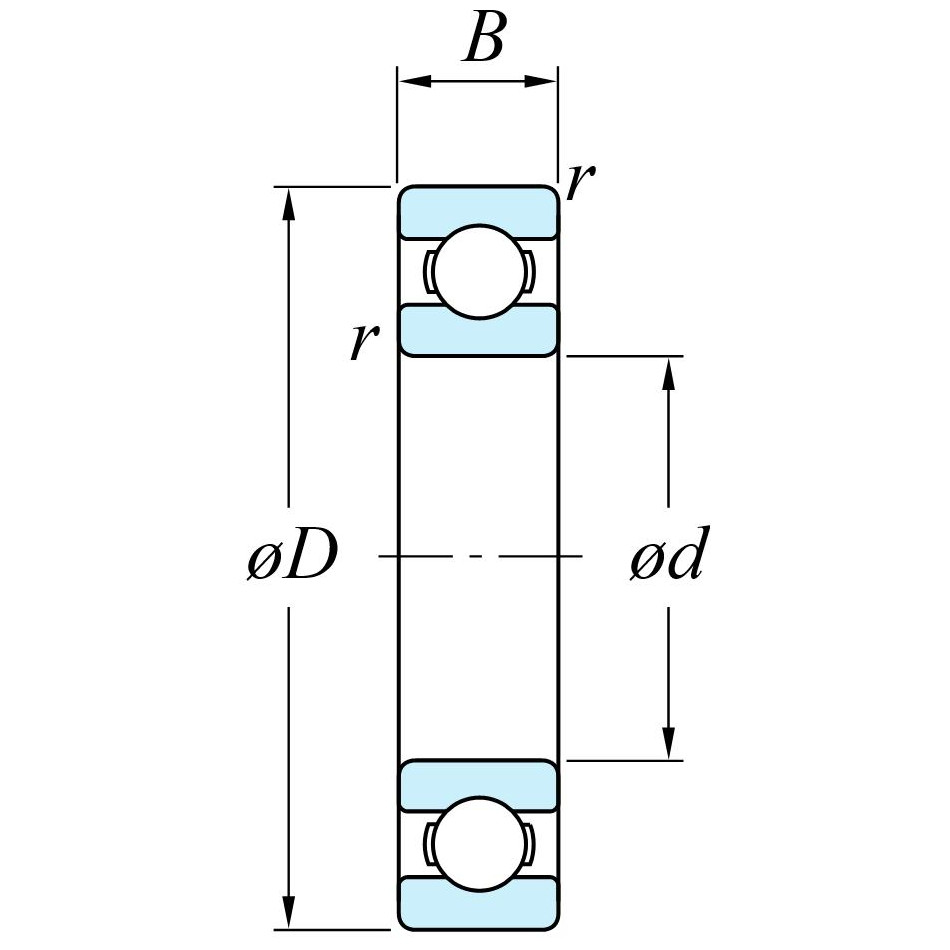

Bore / Inside Diameter (d)	40 mm
Housing / Outside Diameter (D)	80 mm
Width (B)	18 mm
Minimum Radius (r)	1.1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 29.1 kN C_0r 17.8 kN
Limiting Speeds (Grease Lubrication)	7,500 min^-1
Mass	0.366 kg 0.81 lbs
UPC	4549250158292
Country of Manufacture	Japan
