Available Stock: 8

Selected accessories will also be added to cart

$33.62 / Each

Quantity:

6209-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	62092RDC3
Group	Deep Groove Ball Bearings

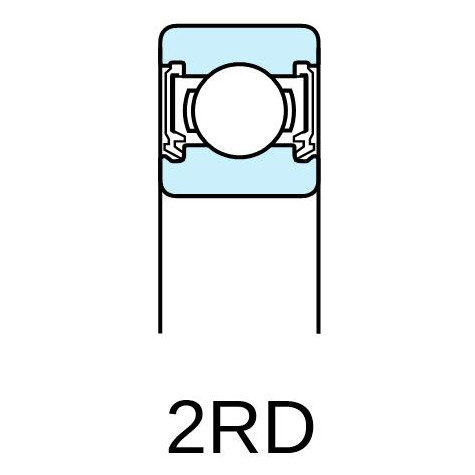

Type	Extremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d)	45 mm
Housing / Outside Diameter (D)	85 mm
Width (B)	19 mm
Minimum Radius (r)	1.1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 32.7 kN C_0r 20.3 kN
Limiting Speeds (Grease Lubrication)	6,900 min^-1
Mass	0.407 kg 0.90 lbs
UPC	4549250158971
Country of Manufacture	Japan
