Product ID: 6210-ZZC3

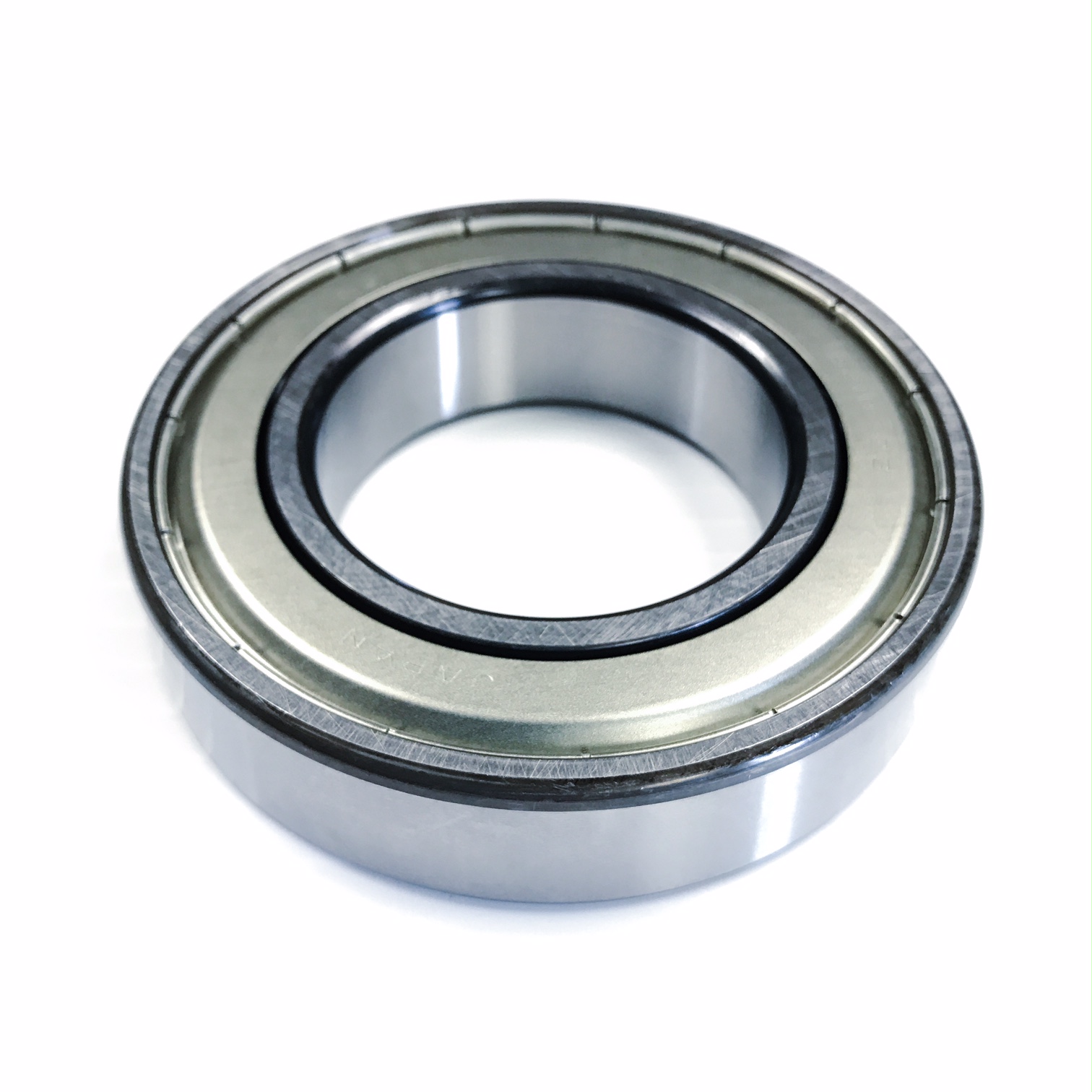

6210ZZC3 Koyo Ball Bearing, Shielded
MFG: JTEKT Corporation
MFG Part Number: 6210ZZC3
Available Stock:
4
Selected accessories will also be added to cart
$33.50 / Each
Quantity:
6210-ZZC3
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$24.44 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6210ZZC3
Group
Deep Groove Ball Bearings

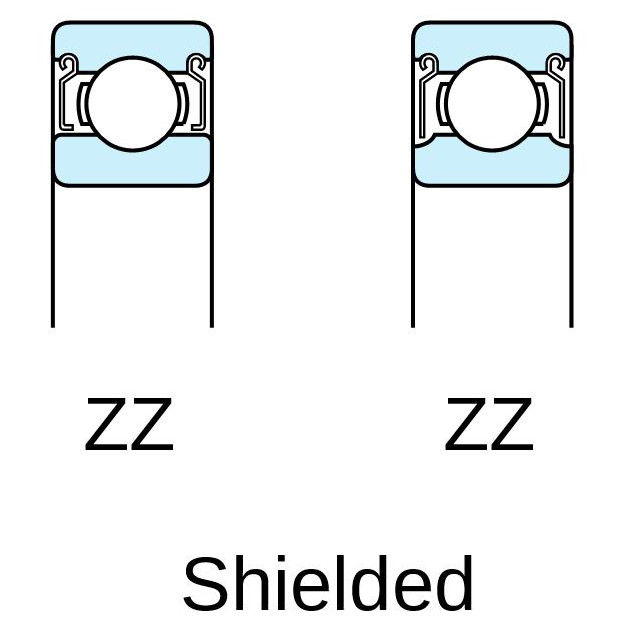

Type
Shielded (ZZ)

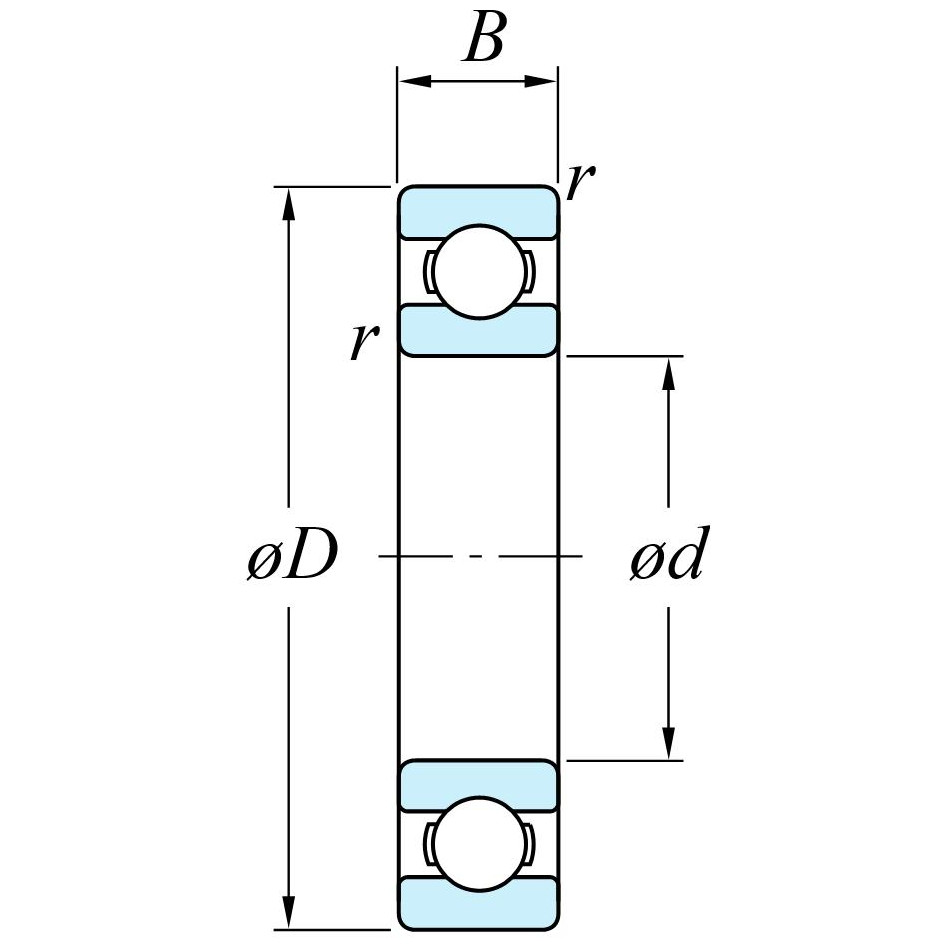

Bore / Inside Diameter (d)
50 mm
Housing / Outside Diameter (D)
90 mm
Width (B)
20 mm
Minimum Radius (r)
1.1 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
35.1 kN
C
0r
23.3 kN
Fatigue Load Limit (C
u
)
1.55 kN
Factor (f0)
14.4
Limiting Speeds (Grease Lubrication)
7,100 min
-1
Shaft Shoulder Mounting Dimension (d
a
)
56.5 mm Minimum
59 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
83.5 mm Maximum
Shoulder Radius (r
a
)
1 mm Maximum
Mass
0.463 kg
1.03 lbs
UPC
4549250159503
Country of Manufacture
Japan
