/Products/Ball Bearings/6200 Series Ball Bearings/62142RDTC3 Koyo Ball Bearing, Rubber Sealed,
Click Image to Expand

Product ID: 6214-2RS

62142RDTC3 Koyo Ball Bearing, Rubber Sealed,

MFG: JTEKT Corporation
MFG Part Number: 62142RDTC3

Available Stock: 3
Selected accessories will also be added to cart
$84.09 / Each
Quantity:
6214-2RS

Specifications

Brand Koyo Seiko Company, LTD
Manufacturer Part Number 62142RDTC3
Group Deep Groove Ball Bearings

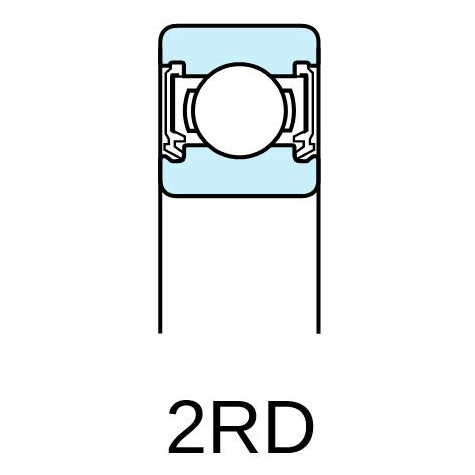

Type Extremely Light Contact Sealed (2RD)

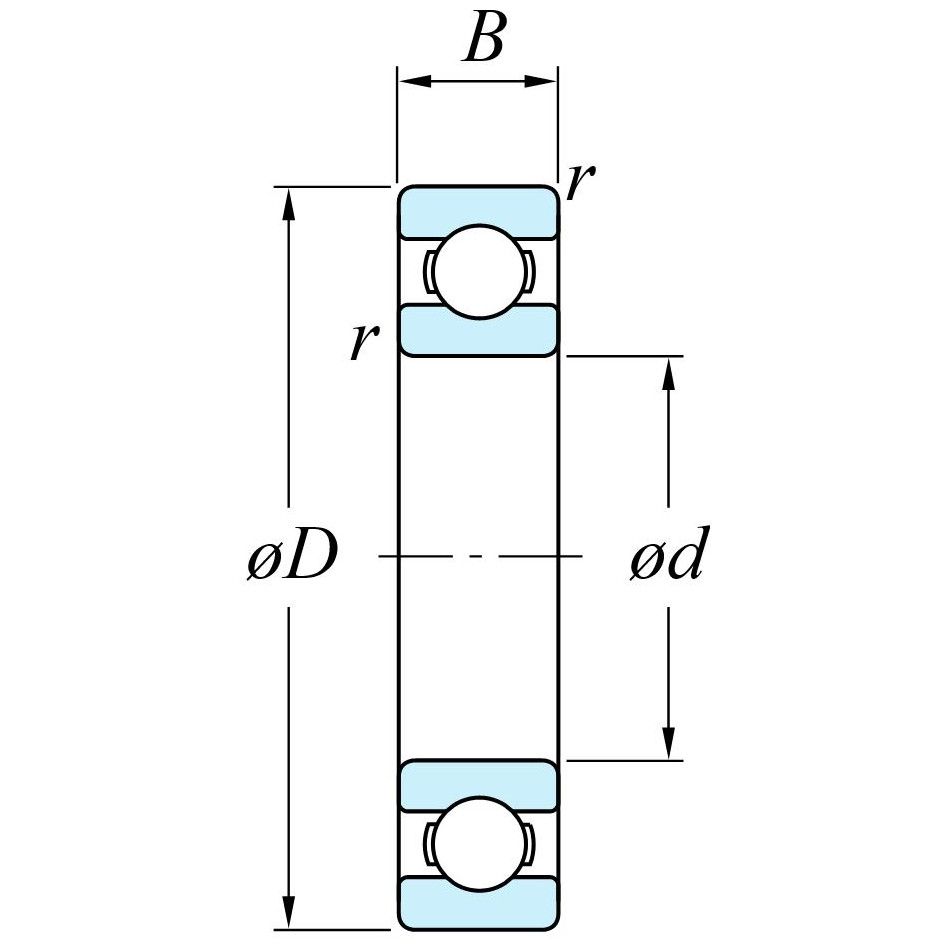

Bore / Inside Diameter (d) 70 mm
Housing / Outside Diameter (D) 125 mm
Width (B) 24 mm
Minimum Radius (r) 1.5 mm
Operating Temperature -30 to 110°C
Cage Type Pressed Steel Cage
Configuration Single-row
Tolerances JIS B 1514
Allowable Misalignment .002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating Cr 62.2 kN
C0r 44.1 kN
Limiting Speeds (Grease Lubrication) N/A
Mass 1.07 kg
2.36 lbs
UPC
Country of Manufacture Japan
