/Products/Ball Bearings/6200 Series Ball Bearings/62142RDTC3 Koyo Ball Bearing, Rubber Sealed,
Click Image to Expand

Product ID: 6214-2RS

62142RDTC3 Koyo Ball Bearing, Rubber Sealed,

MFG: JTEKT Corporation
MFG Part Number: 62142RDTC3

Available Stock: 3
Selected accessories will also be added to cart
$87.05 / Each
Quantity:
6214-2RS

Specifications

BrandKoyo Seiko Company, LTD
Manufacturer Part Number62142RDTC3
GroupDeep Groove Ball Bearings

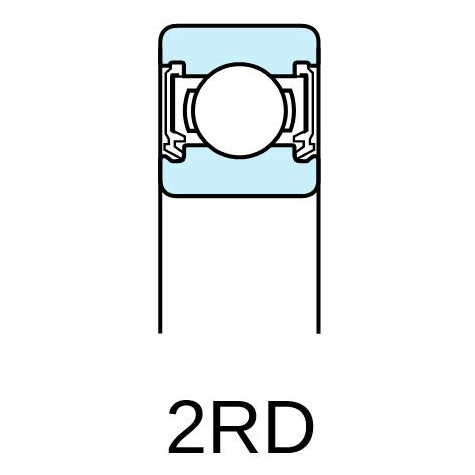

TypeExtremely Light Contact Sealed (2RD)

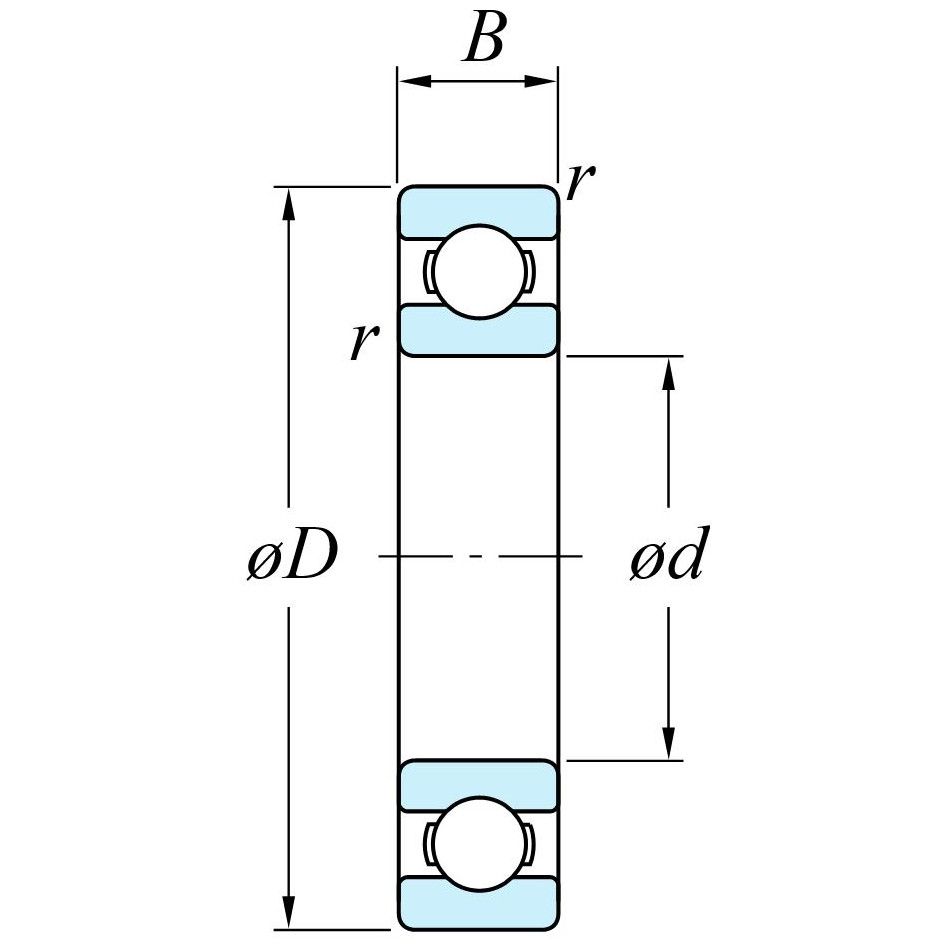

Bore / Inside Diameter (d)70 mm
Housing / Outside Diameter (D)125 mm
Width (B)24 mm
Minimum Radius (r)1.5 mm
Operating Temperature-30 to 110°C
Cage TypePressed Steel Cage
ConfigurationSingle-row
TolerancesJIS B 1514
Allowable Misalignment.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load RatingCr 62.2 kN
C0r 44.1 kN
Limiting Speeds (Grease Lubrication)N/A
Mass1.07 kg
2.36 lbs
UPC
Country of ManufactureJapan
Type
Ball Bearing
