Available Stock: 2

Selected accessories will also be added to cart

$76.58 / Each

Quantity:

6215-ZZC3

Accessories

Select any of the accessories below to purchase them with this inventory item:

$24.44 / Each

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	6215ZZC3
Group	Deep Groove Ball Bearings

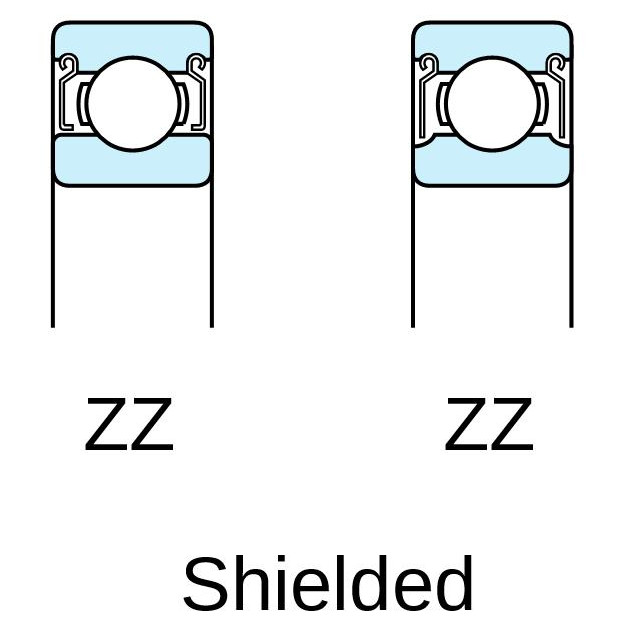

Type	Shielded (ZZ)
Bore / Inside Diameter (d)	75 mm
Housing / Outside Diameter (D)	130 mm
Width (B)	25 mm
Minimum Radius (r)	1.5 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 67.4 kN C_0r 48.3 kN
Fatigue Load Limit (C_u)	3.10 kN
Factor (f0)	14.5
Limiting Speeds (Grease Lubrication)	4,800 min^-1

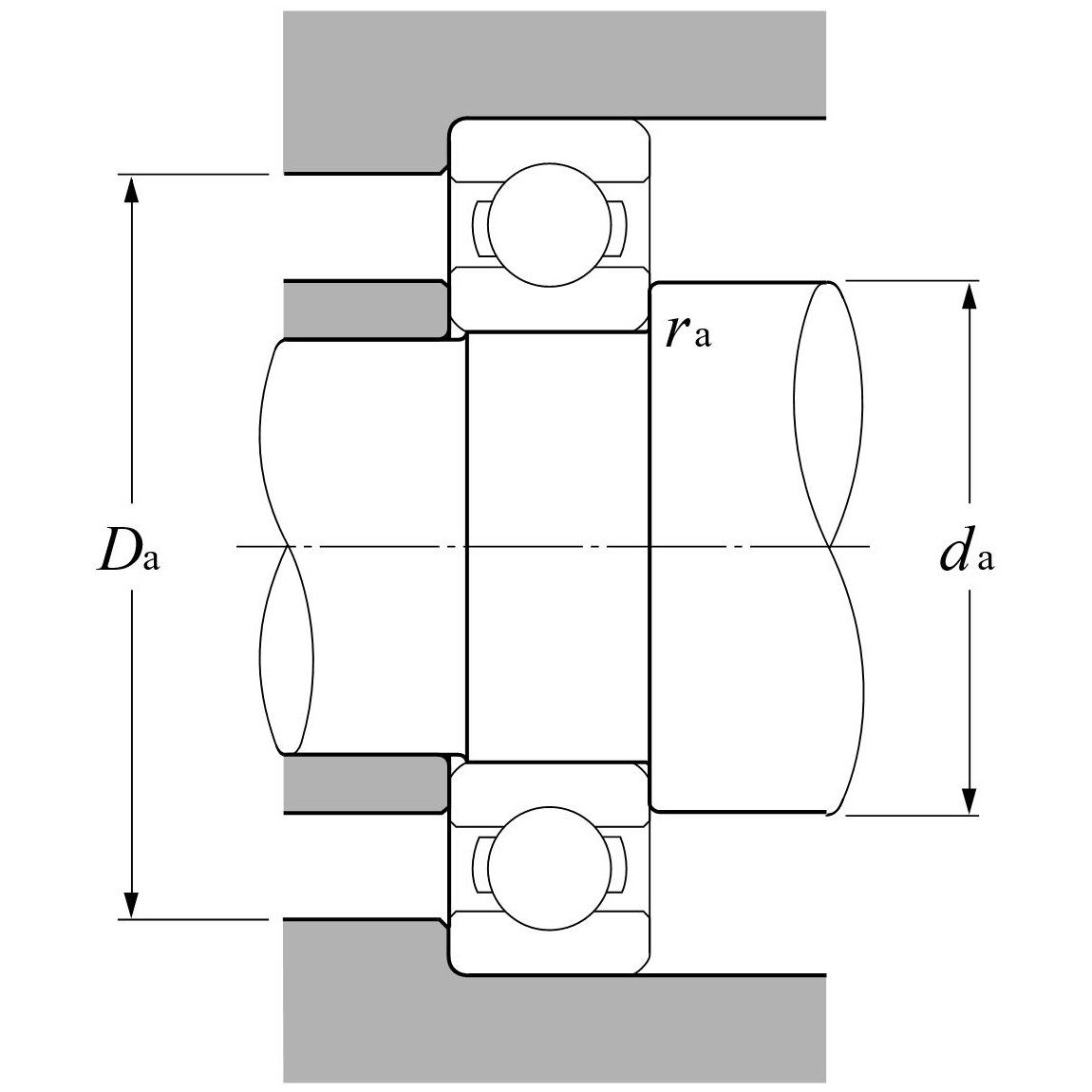

Shaft Shoulder Mounting Dimension (d_a)	83 mm Minimum 88.5 mm Maximum
Housing Shoulder Mounting Dimension (D_a)	122 mm Maximum
Shoulder Radius (r_a)	1.5 mm Maximum
Mass	1.18 kg 2.61 lbs
UPC	4549250161889
Country of Manufacture	Japan
