Available Stock: 10

Selected accessories will also be added to cart

$16.40 / Each

Quantity:

6305-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	63052RDC3
Group	Deep Groove Ball Bearings

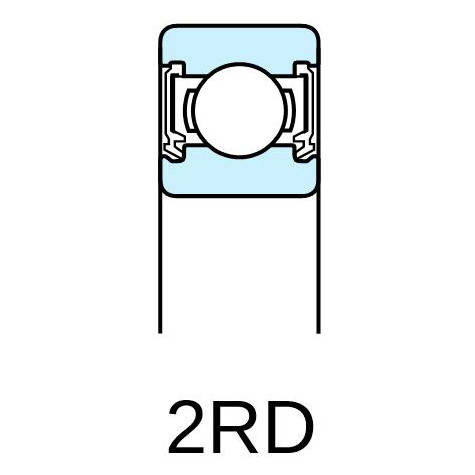

Type	Extremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d)	25 mm
Housing / Outside Diameter (D)	62 mm
Width (B)	17 mm
Minimum Radius (r)	1.1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 20.6 kN C_0r 11.3 kN
Limiting Speeds (Grease Lubrication)	9,900 min^-1
Mass	0.232 kg 0.52 lbs
UPC	4549250168499
Country of Manufacture	Japan
