/Products/Ball Bearings/6300 Series Ball Bearings/63062RDC3 Koyo Ball Bearing, Rubber Sealed
Click Image to Expand

Product ID: 6306-2RS

63062RDC3 Koyo Ball Bearing, Rubber Sealed

MFG: JTEKT Corporation
MFG Part Number: 63062RDC3

Available Stock: 4
Selected accessories will also be added to cart
$28.81 / Each
Quantity:

Specifications

BrandKoyo Seiko Company, LTD
Manufacturer Part Number63062RDC3
GroupDeep Groove Ball Bearings

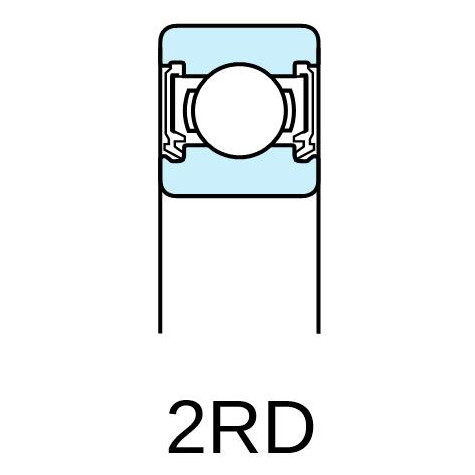

TypeExtremely Light Contact Sealed (2RD)

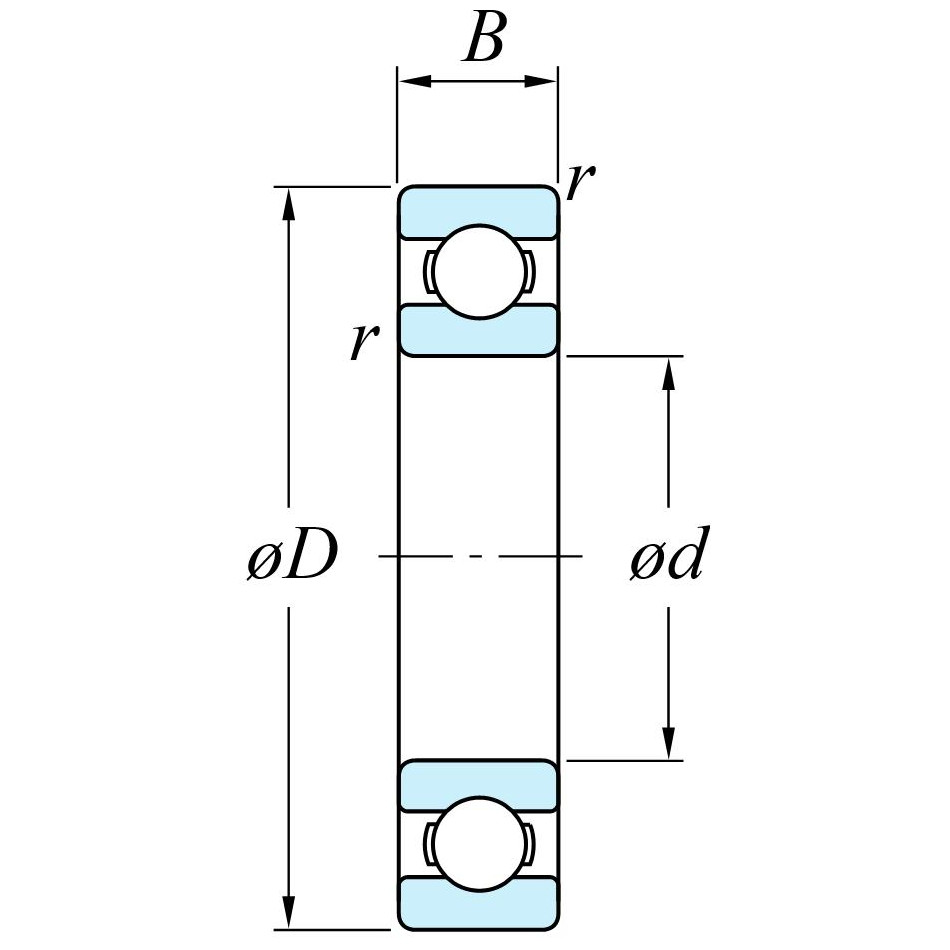

Bore / Inside Diameter (d)30 mm
Housing / Outside Diameter (D)72 mm
Width (B)19 mm
Minimum Radius (r)1.1 mm
Operating Temperature-30 to 110°C
Cage TypePressed Steel Cage
ConfigurationSingle-row
TolerancesJIS B 1514
Allowable Misalignment.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load RatingCr 26.7 kN
C0r 15.0 kN
Limiting Speeds (Grease Lubrication)8,600 min-1
Mass.346 kg
0.77 lbs
UPC4549250169458
Country of ManufactureJapan
Type
Ball Bearing
