Available Stock: 5

Selected accessories will also be added to cart

$29.80 / Each

Quantity:

6307-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	63072RDC3
Group	Deep Groove Ball Bearings

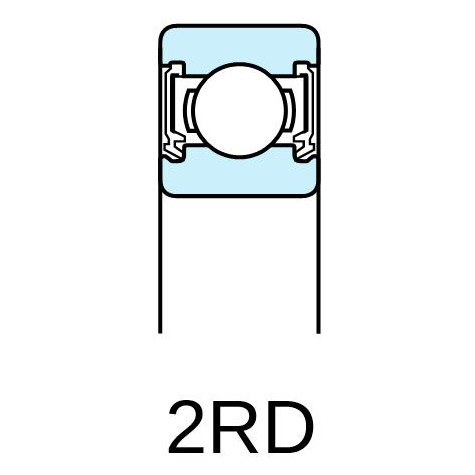

Type	Extremely Light Contact Sealed (2RD)

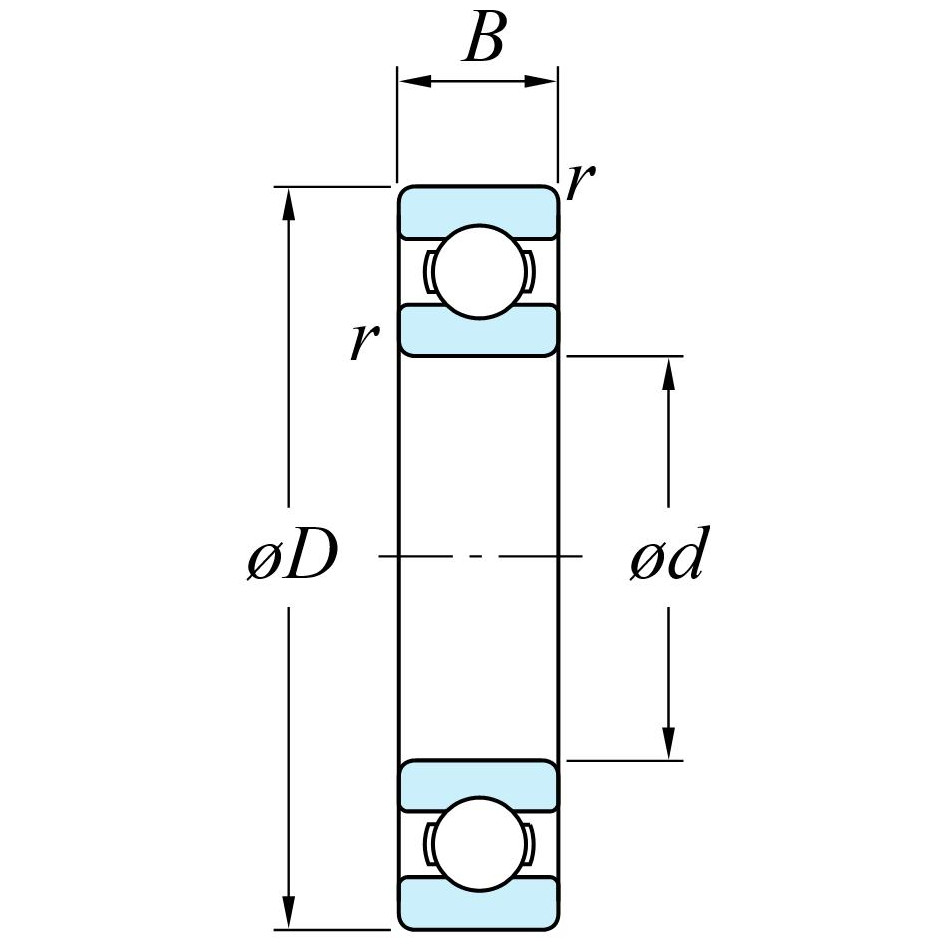

Bore / Inside Diameter (d)	35 mm
Housing / Outside Diameter (D)	80 mm
Width (B)	21 mm
Minimum Radius (r)	15 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 33.4 kN C_0r 19.3 kN
Limiting Speeds (Grease Lubrication)	7,700 min^-1
Mass	0.457 kg 1.01 lbs
UPC	4549250170225
Country of Manufacture	Japan
