Available Stock: 2

Selected accessories will also be added to cart

$154.32 / Each

Quantity:

6314-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	63142RDTC3
Group	Deep Groove Ball Bearings

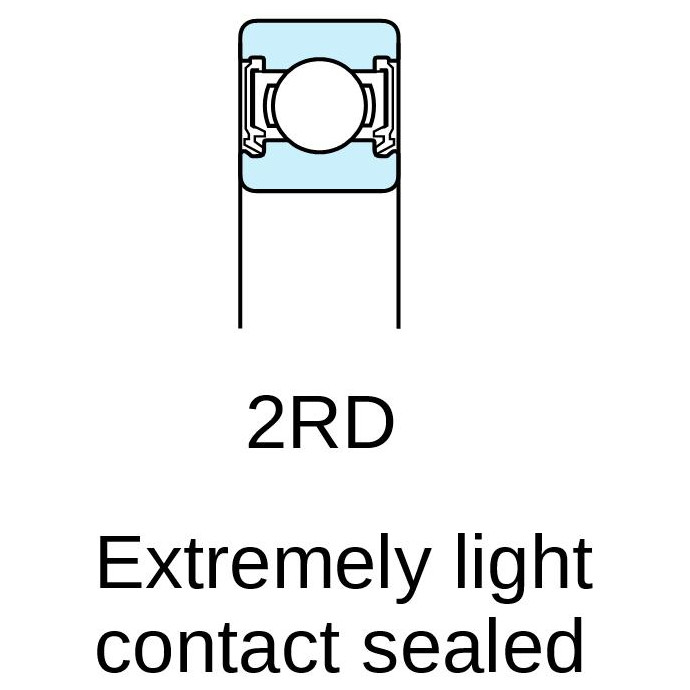

Type	Extremely Light Contact Sealed (2RD)
Bore / Inside Diameter (d)	70 mm
Housing / Outside Diameter (D)	150 mm
Width (B)	35 mm
Minimum Radius (r)	2.1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 104 kN C_0r 68.2 kN
Fatigue Load Limit (C_u)	4.95 kN
Factor (f0)	13.2
Limiting Speeds (Grease Lubrication)	N/A

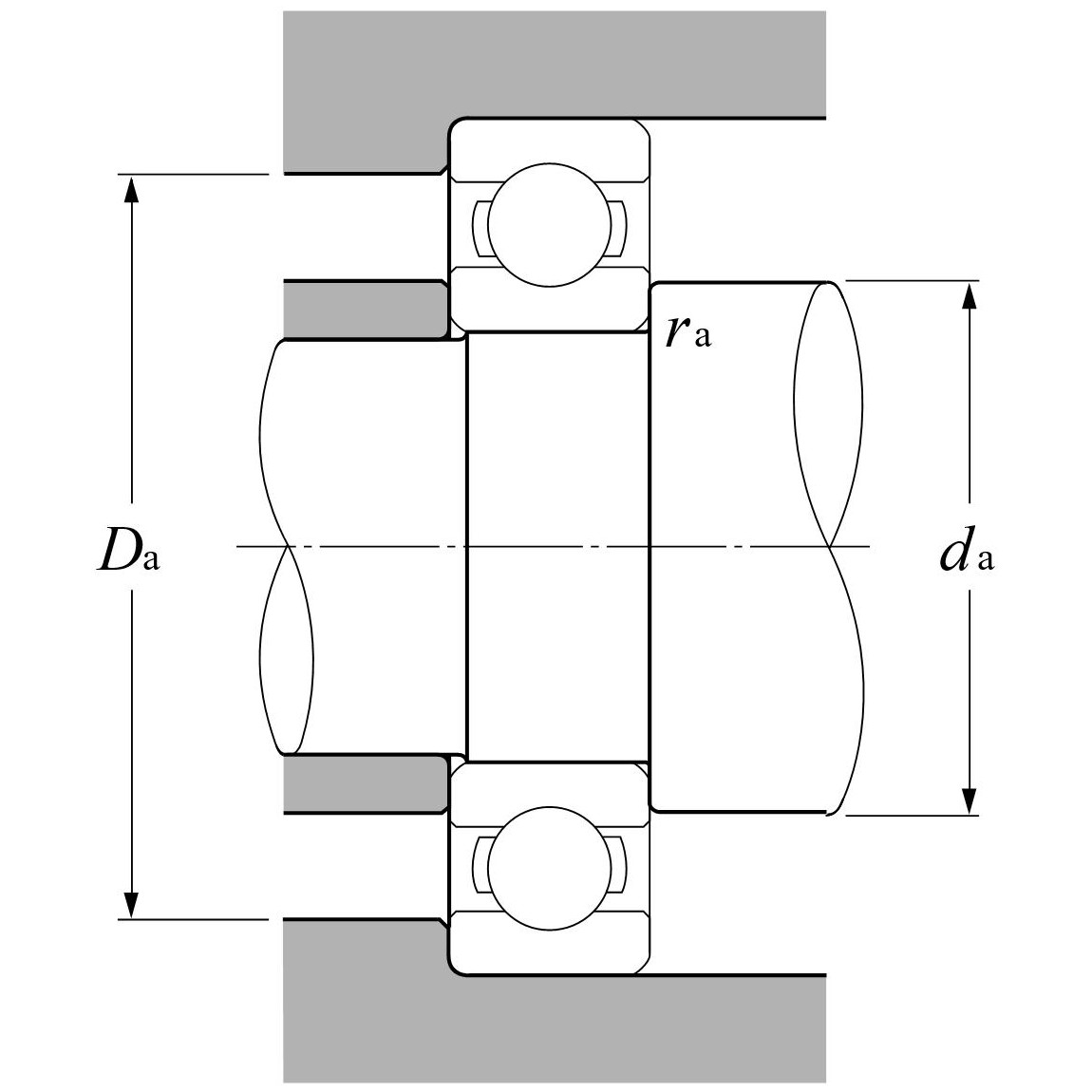

Shaft Shoulder Mounting Dimension (d_a)	81 mm Minimum 92 mm Maximum
Housing Shoulder Mounting Dimension (D_a)	139 mm Maximum
Shoulder Radius (r_a)	2 mm Maximum
Mass	2.52 kg 5.56 lbs
UPC
Country of Manufacture	Japan
