6319ZZXC3 Koyo Ball Bearing, Shielded
Click Image to Expand
Previous
Next
Product ID: 6319-ZZC3
6319ZZXC3 Koyo Ball Bearing, Shielded
MFG: JTEKT Corporation
MFG Part Number: 6319ZZXC3
Available Stock:
1
Selected accessories will also be added to cart
$320.50 / Each
Quantity:
6319-ZZ
Accessories
Select any of the accessories below to purchase them with this inventory item:
105330 Mobil Polyrex EM Grease
$24.44 / Each
Details
Specifications
Brand
Koyo Seiko Company, LTD
Manufacturer Part Number
6319ZZXC3
Group
Deep Groove Ball Bearings

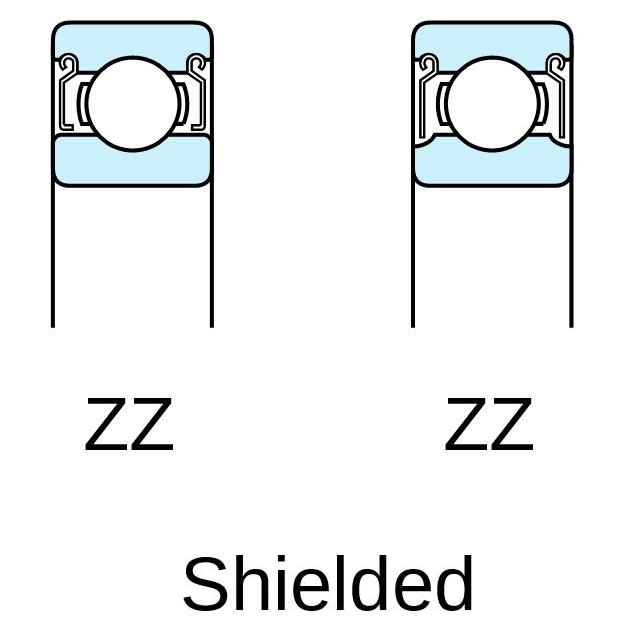

Type
Shielded (ZZX)

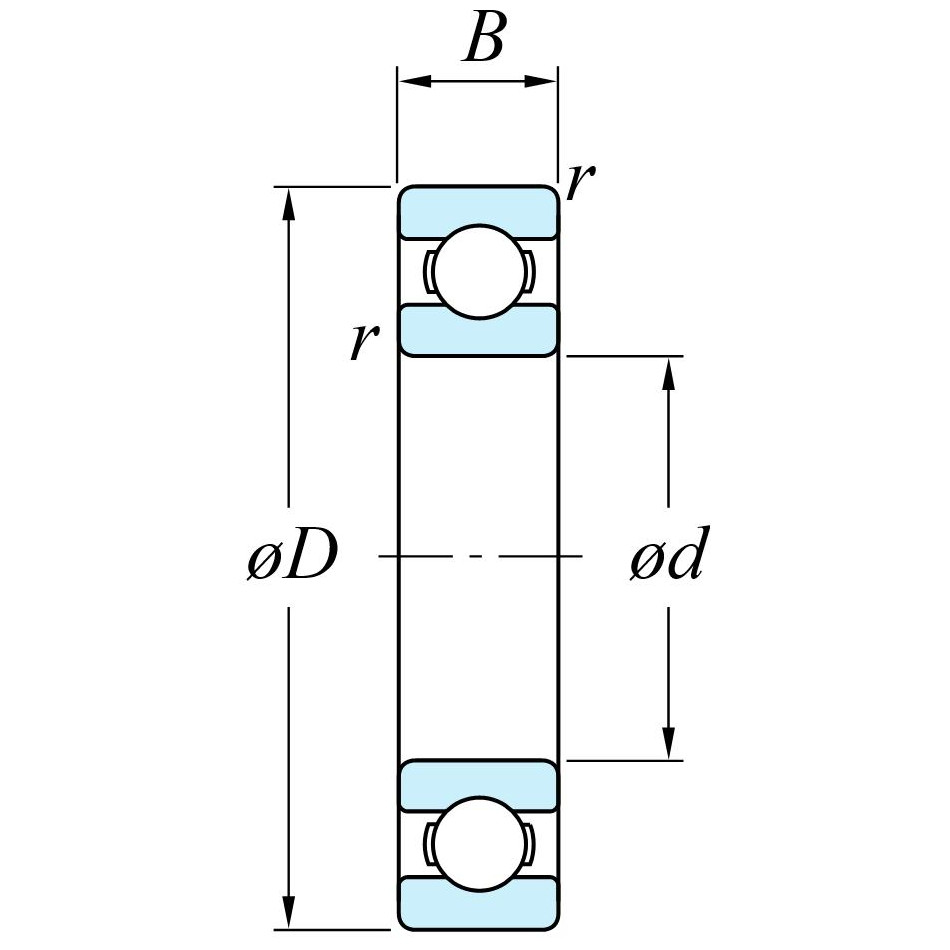

Bore / Inside Diameter (d)
95 mm
Housing / Outside Diameter (D)
200 mm
Width (B)
45 mm
Minimum Radius (r)
3 mm
Operating Temperature
-30 to 110°C
Cage Type
Pressed Steel Cage
Configuration
Single-row
Tolerances
JIS B 1514
Allowable Misalignment
.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating
C
r
153 kN
C
0r
119 kN
Fatigue Load Limit (C
u
)
9.45 kN
Factor (f0)
13.3
Limiting Speeds (Grease Lubrication)
3,300 min
-1

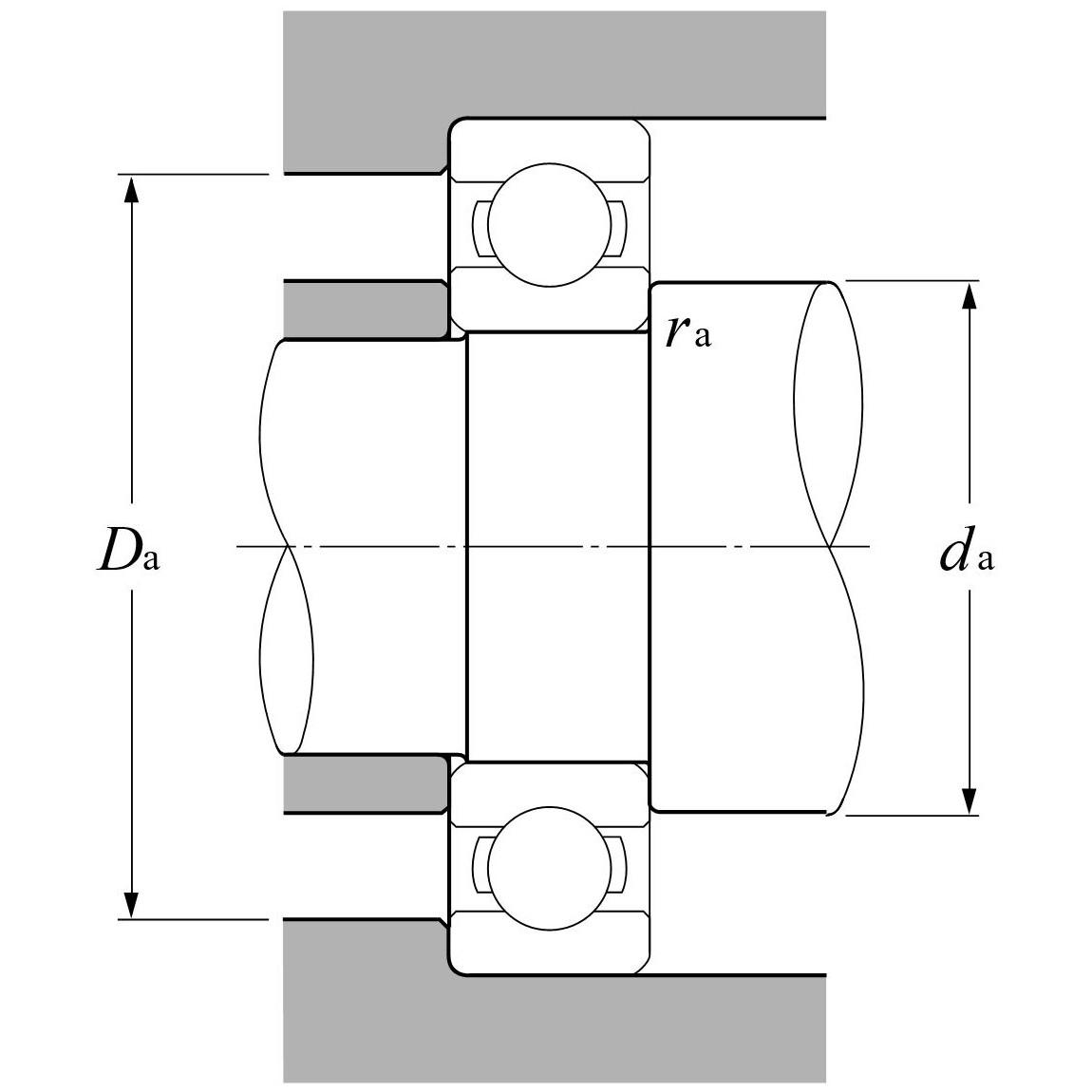

Shaft Shoulder Mounting Dimension (d
a
)
108 mm Minimum
122 mm Maximum
Housing Shoulder Mounting Dimension (D
a
)
187 mm Maximum
Shoulder Radius (r
a
)
2.5 mm Maximum
Mass
5.67 kg
12.51 lbs
UPC
4549250175992
Country of Manufacture
Japan
