/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/65036ET3G588/9S-W22 WEG 650HP Severe Duty Electric Motor, 3600RPM

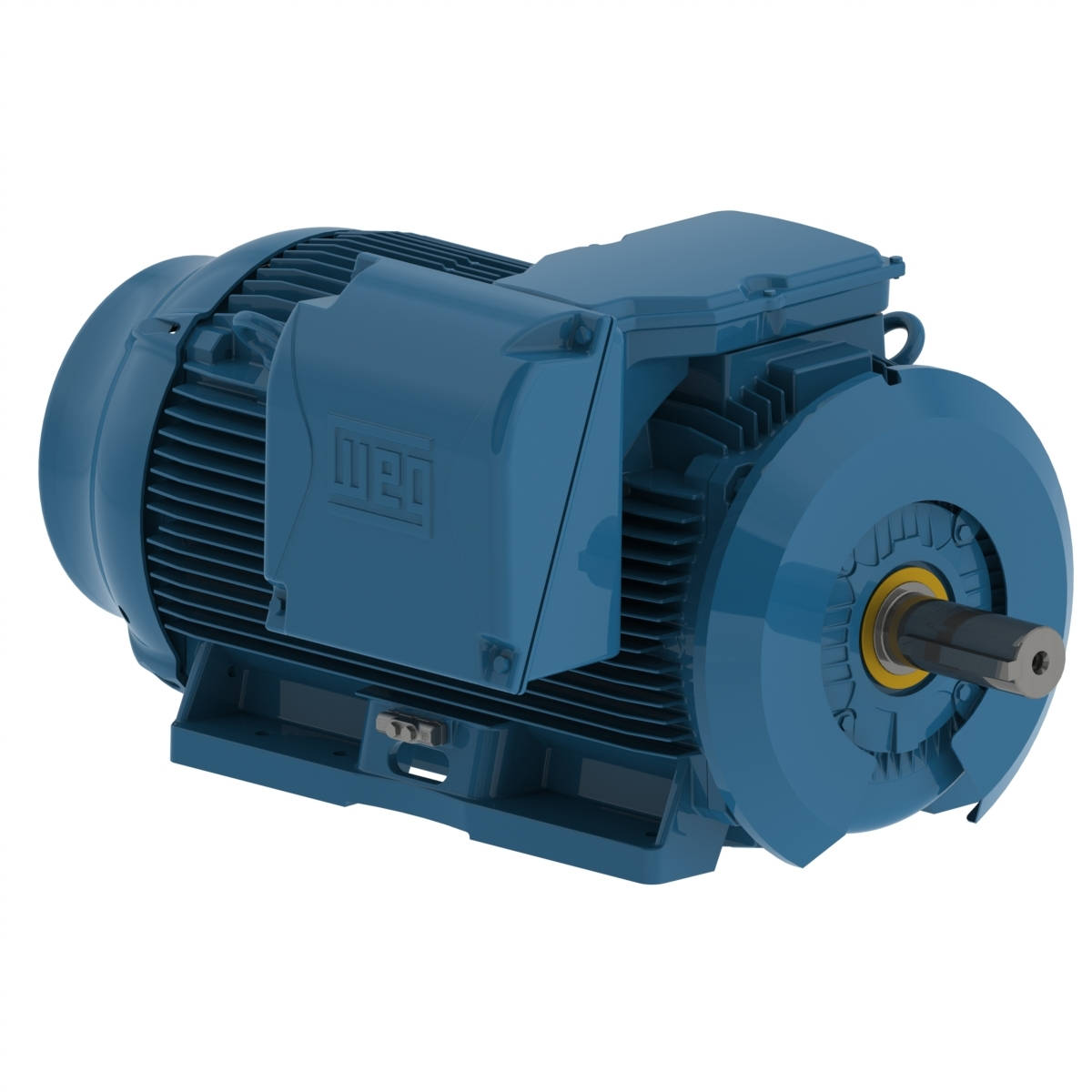

65036ET3G588/9S-W22 WEG 650HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 65036ET3G588/9S-W22

65036ET3G588/9S-W22 WEG 650HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 65036ET3G588/9S-W22

Selected accessories will also be added to cart
$59,483.15 / Each
Quantity:
IC411 - TEFC, IP55, 588TS/589TS Frame, 460VAC 60Hz 3 Phase, 14384658, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame588/9TS
Output650 HP (480 kW)
Number of Poles2
Frequency60 Hz
Rated speed3585 rpm
Slip0.42 %
Rated voltage460 V
Rated current685 A
L. R. Amperes4864 A
LRC7.1x(Code G)
No load current140 A
Rated torque952 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time100s (cold) 56s (hot)
Moment of inertia (J)176 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?89.0 dB(A)
Approx. weight?4636 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.1  96.6  96.6

Power factor

50%75%100%
0.86  0.90  0.91
Frame588/9TS
Output550 HP (400 kW)
Number of Poles2
Frequency50 Hz
Rated speed2985 rpm
Slip0.50 %
Rated voltage380 V
Rated current692 A
L. R. Amperes4636 A
LRC6.7x(Code F)
No load current138 A
Rated torque968 ft.lb
Locked rotor torque190 %
Breakdown torque229 %
Locked rotor time90s (cold) 50s (hot)
Moment of inertia (J)176 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?83.0 dB(A)
Approx. weight?4636 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.2  96.5  96.5

Power factor

50%75%100%
0.86  0.90  0.91
Frame588/9TS
Output550 HP (400 kW)
Number of Poles2
Frequency50 Hz
Rated speed2985 rpm
Slip0.50 %
Rated voltage400 V
Rated current657 A
L. R. Amperes4928 A
LRC7.5x(Code G)
No load current149 A
Rated torque968 ft.lb
Locked rotor torque210 %
Breakdown torque260 %
Locked rotor time90s (cold) 50s (hot)
Moment of inertia (J)176 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?83.0 dB(A)
Approx. weight?4636 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.2  96.5  96.5

Power factor

50%75%100%
0.85  0.89  0.91
Frame588/9TS
Output550 HP (400 kW)
Number of Poles2
Frequency50 Hz
Rated speed2985 rpm
Slip0.50 %
Rated voltage415 V
Rated current641 A
L. R. Amperes5128 A
LRC8.0x(Code H)
No load current158 A
Rated torque968 ft.lb
Locked rotor torque220 %
Breakdown torque280 %
Locked rotor time90s (cold) 50s (hot)
Moment of inertia (J)176 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?83.0 dB(A)
Approx. weight?4636 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.2  96.5  96.5

Power factor

50%75%100%
0.83  0.86  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
650HP
Input Voltage
460VAC
Frame
588TS
Frame
589TS
