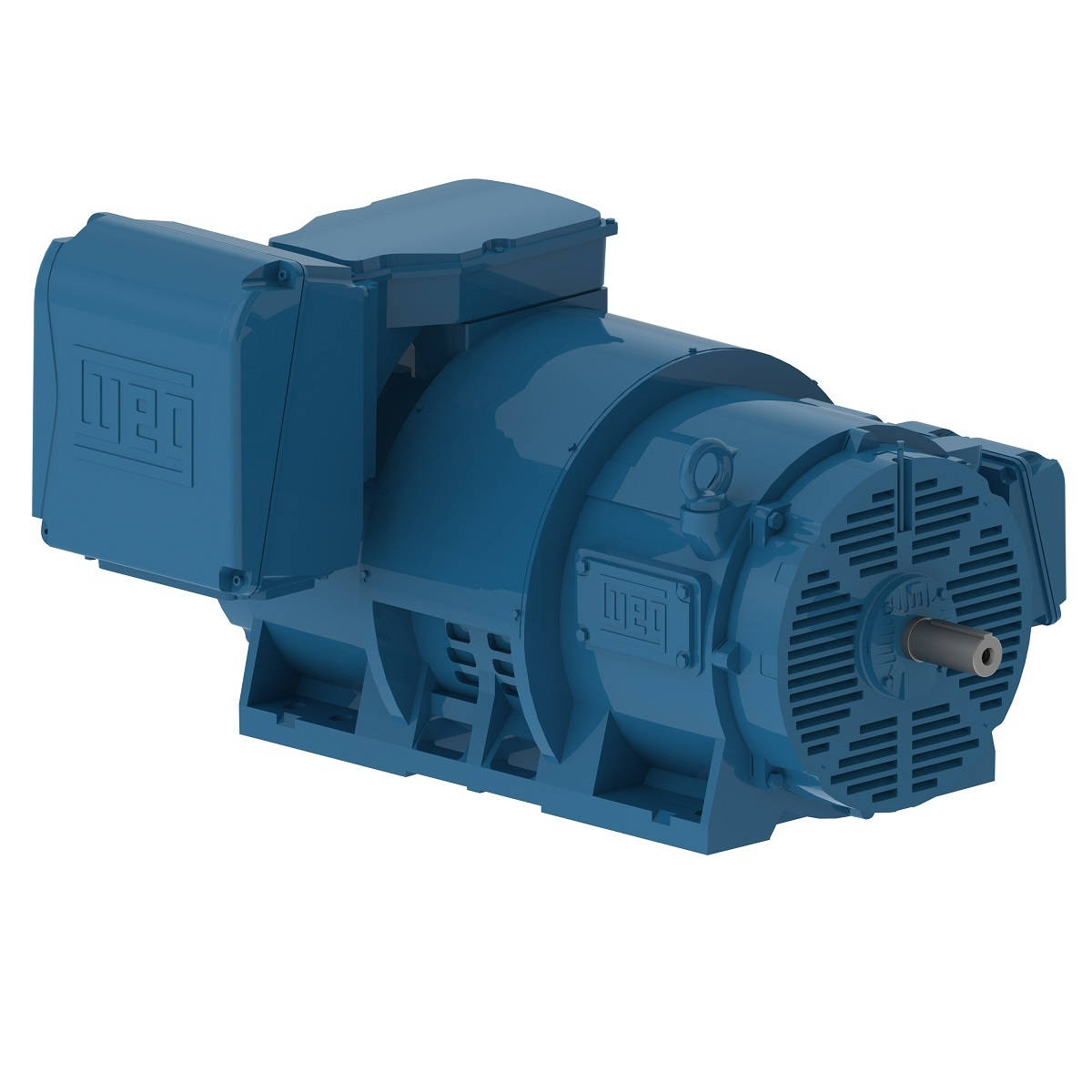

70036OT3G5010S-RF WEG 700HP Refrigeration Electric Motor, 3600RPM
Enlarge Photo

Product ID: 70036OT3G5010S-RF

70036OT3G5010S-RF WEG 700HP Refrigeration Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 70036OT3G5010S-RF

Selected accessories will also be added to cart
$43,603.77 / Each
Quantity:
IC01 - ODP, IP23, 5010TS/5011TS Frame, 460VAC 60Hz 3 Phase, 11601950, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-5/8" Keyed Shaft

Electric Motors

Frame5010/11TS
Output700 HP (515 kW)
Number of Poles2
Frequency60 Hz
Rated speed3578 rpm
Slip0.61 %
Rated voltage460 V
Rated current760 A
L. R. Amperes6080 A
LRC8.0x(Code H)
No load current205 A
Rated torque1030 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)78.5 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?86.0 dB(A)
Approx. weight?4212 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.0  96.5  96.6

Power factor

50%75%100%
0.77  0.85  0.88

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage110-127/200-240 V
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsTriple
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
700HP
Input Voltage
460VAC
Frame
5010TS/5011TS
Application
Refrigeration
