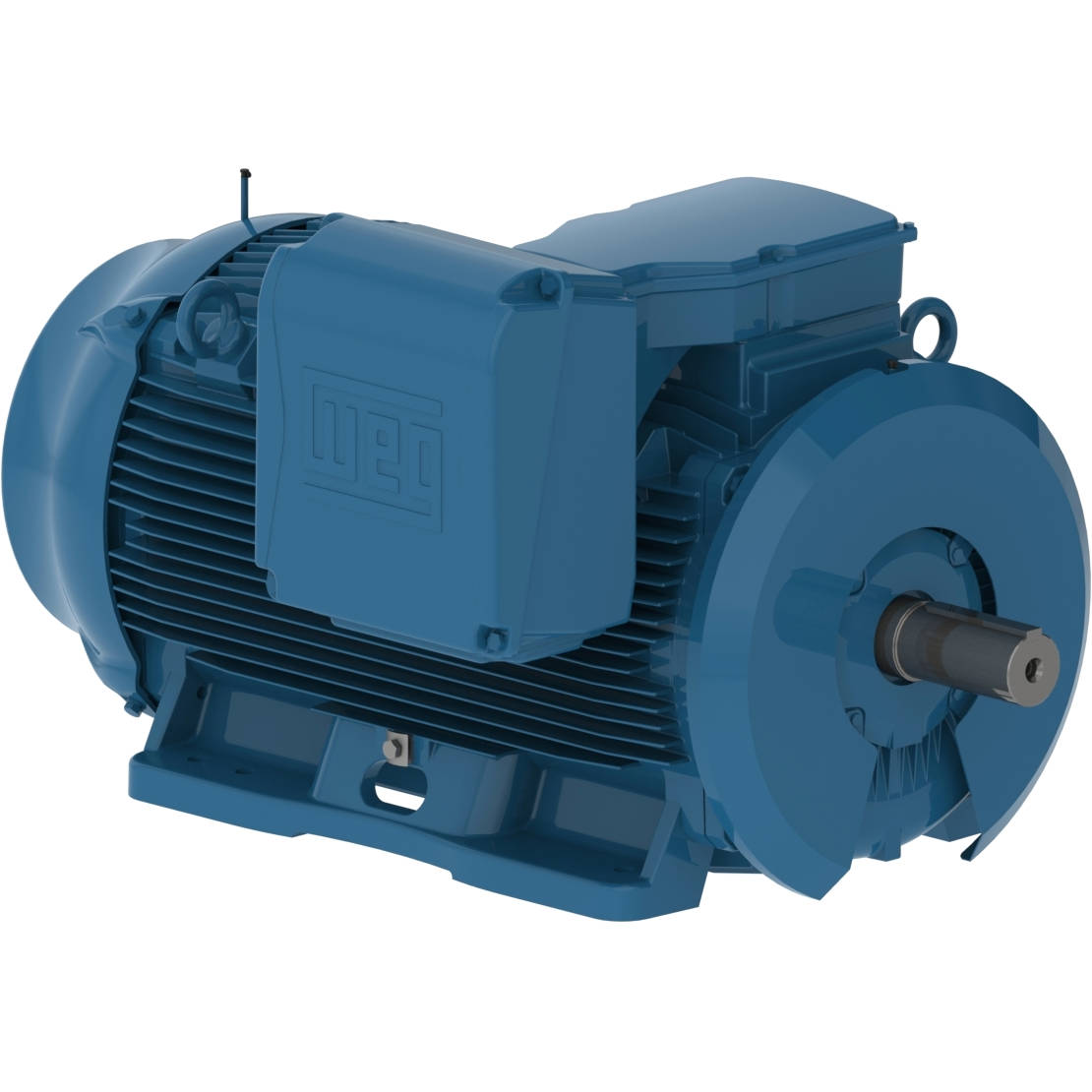

70036ET3G588/9S-W22 WEG 700HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 70036ET3G588/9S-W22

70036ET3G588/9S-W22 WEG 700HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 70036ET3G588/9S-W22

Selected accessories will also be added to cart
$63,416.06 / Each
Quantity:
IC411 - TEFC, IP55, 588TS/589TS Frame, 460VAC 60Hz 3 Phase, 12088976, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame588/9TS
Output700 HP (515.20 kW)
Number of Poles2
Frequency60 Hz
Rated speed3585 rpm
Slip0.42 %
Rated voltage460 V
Rated current736 A
L. R. Amperes5299 A
LRC7.2x(Code G)
No load current155 A
Rated torque1030 ft.lb
Locked rotor torque229 %
Breakdown torque250 %
Locked rotor time61s (cold) 34s (hot)
Moment of inertia (J)183 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?89.0 dB(A)
Approx. weight?5321 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
96.2  96.6  96.6

Power factor

50%75%100%
0.86  0.90  0.91

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemExtended, at Drive end and Non-drive end
Space Heater Voltage200 - 240 V
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Enclosure
TEFC
Horsepower
700HP
Input Voltage
460VAC
Frame
588TS/589TS
