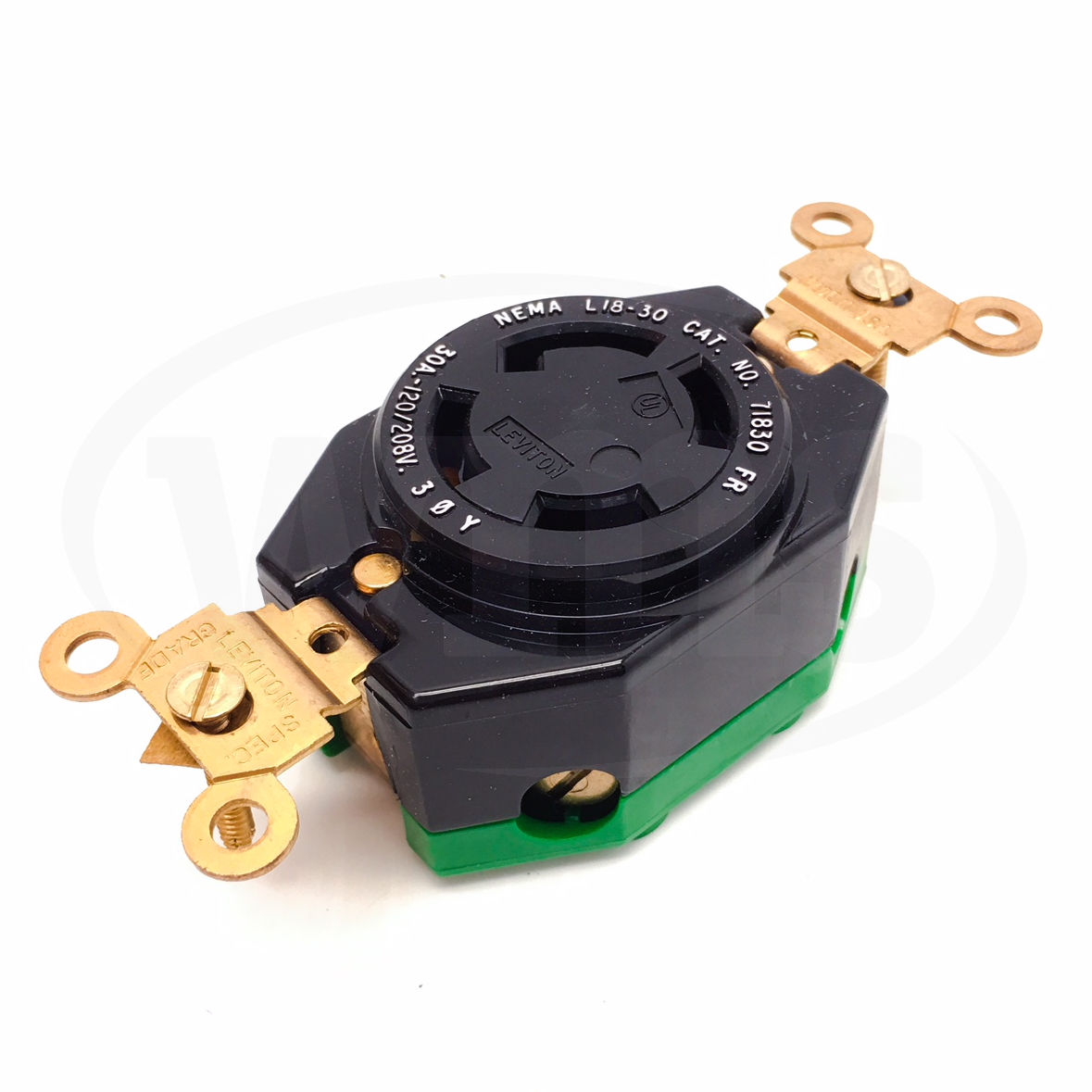

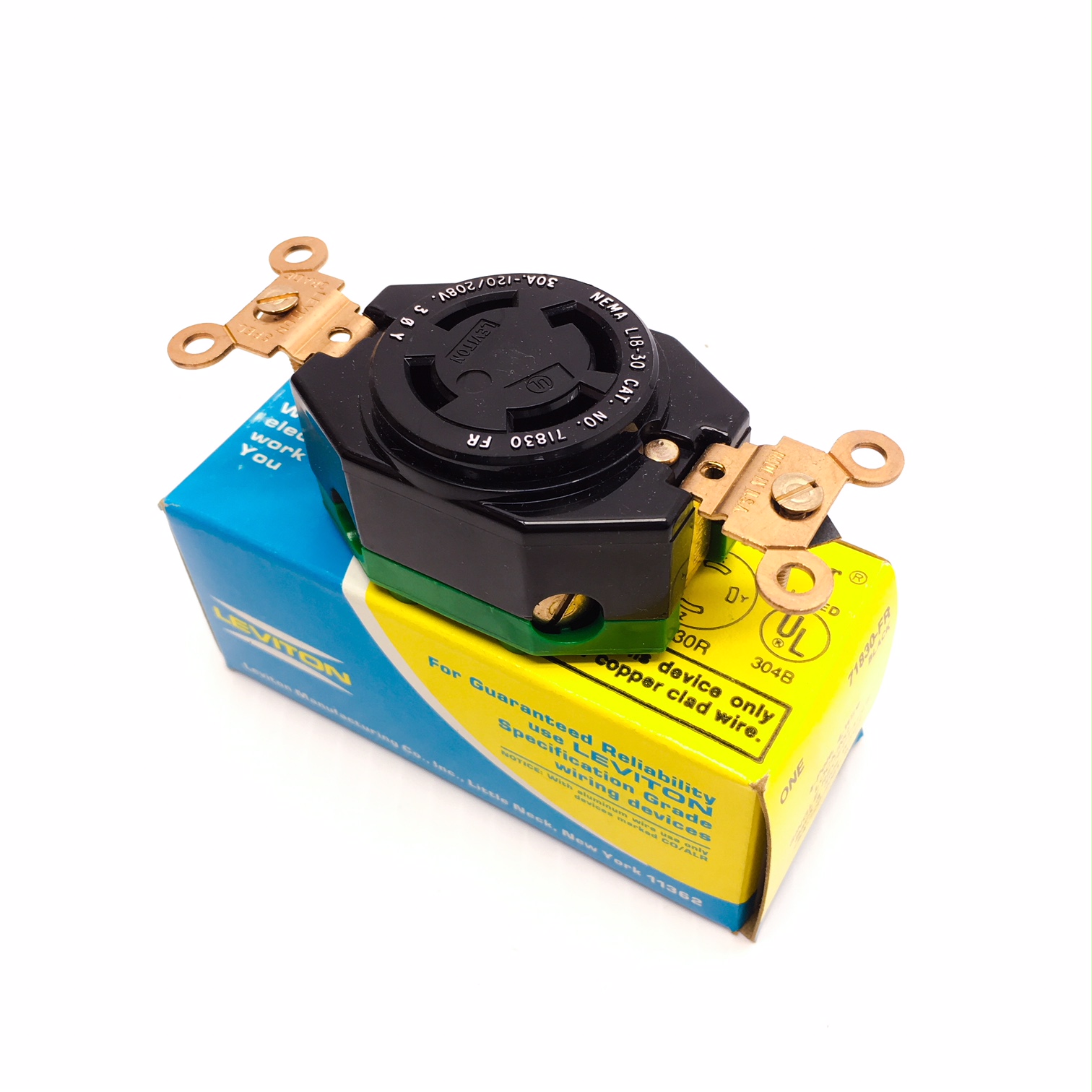

| Product Specifications |
|---|
| Product Style |
Standard Locking.
|
| Amperage |
30A
|
| Device Type |
Flush Receptacle.
|
| Poles and Wires |
4 Pole, 4 Wire.
|
| Voltage |
3ph 120/208V AC
|
| Product Variation |
Standard.
|
| Color |
Black.
|
| Configuration Type |
L18-30
|

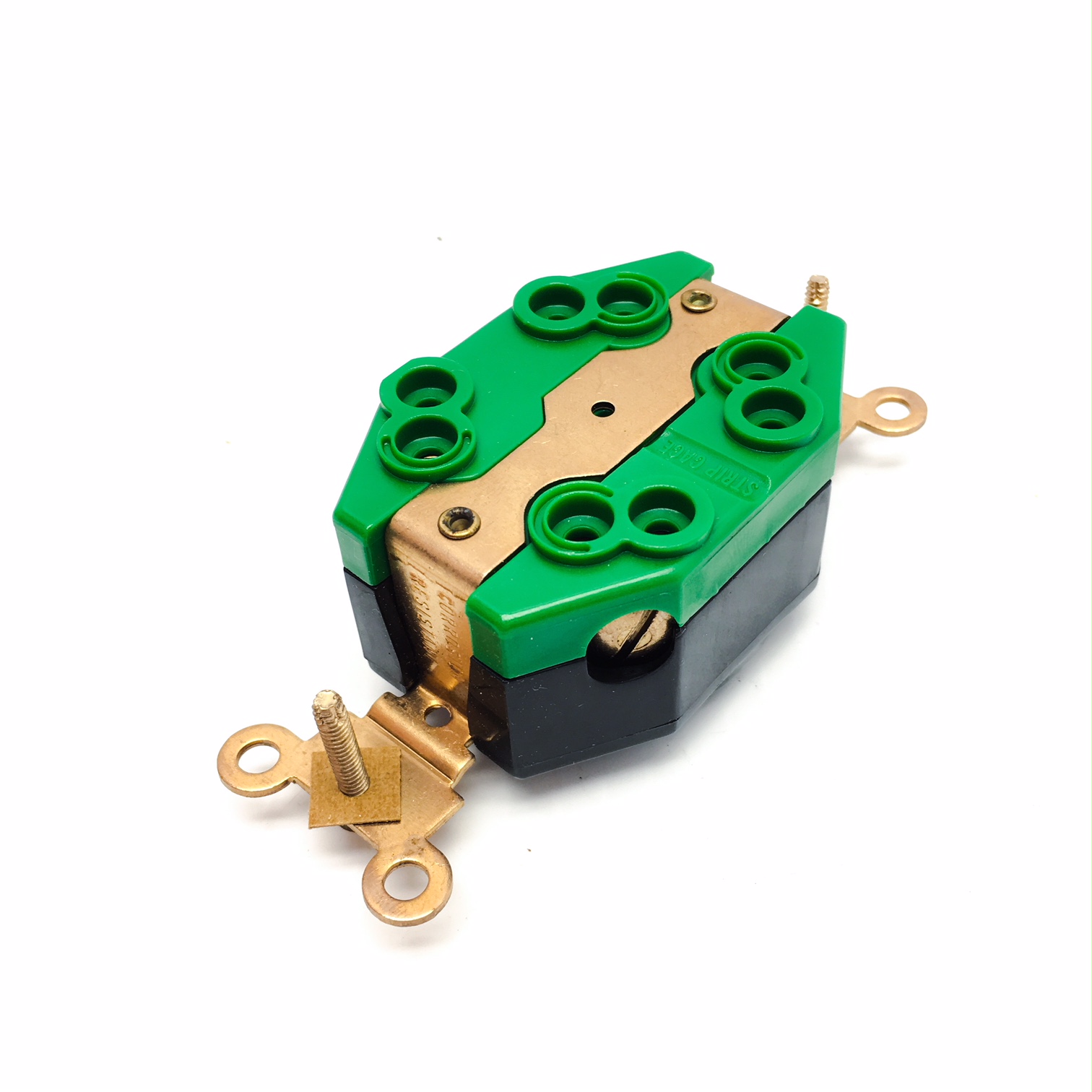

| Base |
Reinforced Thermoplastic Polyester.
|
| Face |
Nylon.
|
| Terminals |
0.40" (1.0) Copper Alloy.
|
| Terminal Clamp |
0.40" (1.0) Copper Alloy.
|
| Ground Contact |
0.40" (1.0) Copper Alloy.
|
| Ground Shunt |
.015" (.3) Copper Alloy.
|
| Mounting Strap |
.050" (1.3) Steel (Nickel-Plated).
|
| Back Plate |
.040" (1.0) Plated Copper Alloy.
|
| Terminal Screws |
#10 Bronze.
|
| Self Ground Clip |
Stainless Steel.
|
| Mounting Screws |
Plated Steel.
|
| Dielectric Voltage |
Withstands 3500V per UL498.
|
| Max Working Voltage |
600V AC or 250V DC.
|
| Current Interrupting |
Certified for current interrupting at full rated current.
|
| Temperature Rise |
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498
|
| Terminal Identification |
(X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral).
|
| Terminal Accommodation |
#14-#8 AWG solid or stranded copper wire.
|
| Product Identification |
Ratings and NEMA identification are permanently marked on device.
|
| Flammability |
UL 94 V2 Minimum.
|
| Operating Temperatures |
-40 deg C to 85 deg C (continuous w/o impact).
|
| UL Standard |
UL Listed to Standard 498 (Attachment Plug and Receptacles).
|
| CSA Standard |
Certified to CSA Standard C22.2 No.42M1984 (General Use Receptacles) and C22.2 No. 182.2M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable.
|
| UL Listing File |
Ul Listed File #E2258- Guide #RTRT
|
| CSA Certification File |
CSA Certified File #LR16215- Guide #365-E-1.
|
| Fed Spec |
Federal Specifications WC596 (where applicable).
|
| Complies with: |
Complies with NEMA Standards WD-1, WD-6 and UL 498.
|
| Overseas Apporvals |
NOM, CE.
|
