/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TEFC, C-Face, Foot Mount/.7509ET3EHD56C WEG 3/4HP Hydroduty Washdown Electric Motor, 900 RPM
Click Image to Expand

Product ID: .7509ET3EHD56C

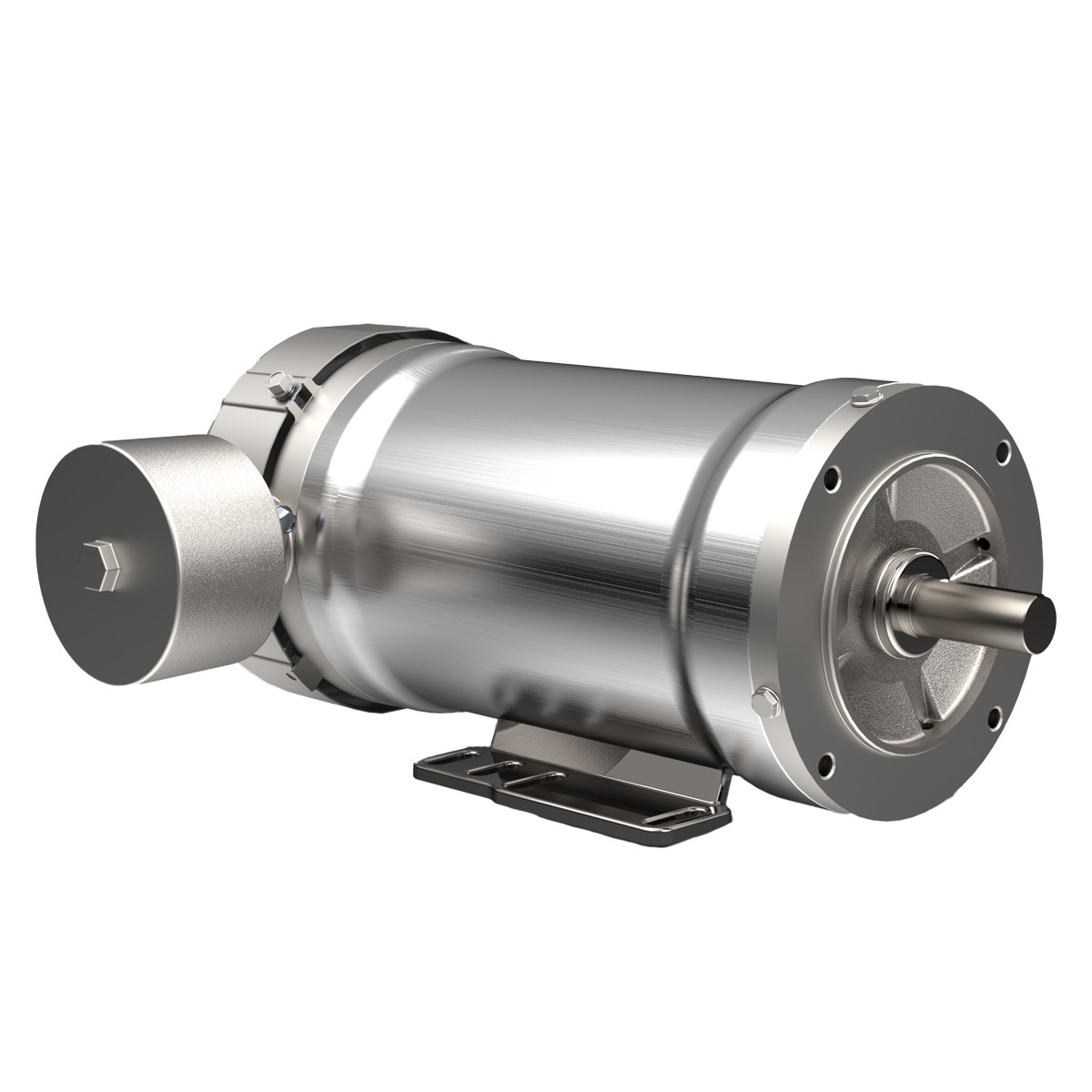

.7509ET3EHD56C WEG 3/4HP Hydroduty Washdown Electric Motor, 900 RPM

MFG: WEG Electric Corporation
MFG Part Number: .7509ET3EHD56C

Selected accessories will also be added to cart
$1,596.66 / Each
Quantity:
TEFC, IP66, 56C Frame, 230/460VAC 3-Phase 60Hz, 14418941, 63994, C-Face, Foot Mounted, Stainless Steel, Standard Efficiency

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating0.75 HP
EnclosureTEFC
Number of poles8P
Motor ApplicationHydroDuty
MountingFoot-mounted
EfficiencyStandard Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed900/750 rpm

Promo Video

Documents

Type
Electric Motor
Frame
56C
Input Phase
3-Phase
Horsepower
3/4HP
Enclosure
TEFC
Speed
900RPM
