/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/Foot Mount/.7512ES1B56-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

Product ID: .7512ES1B56-S

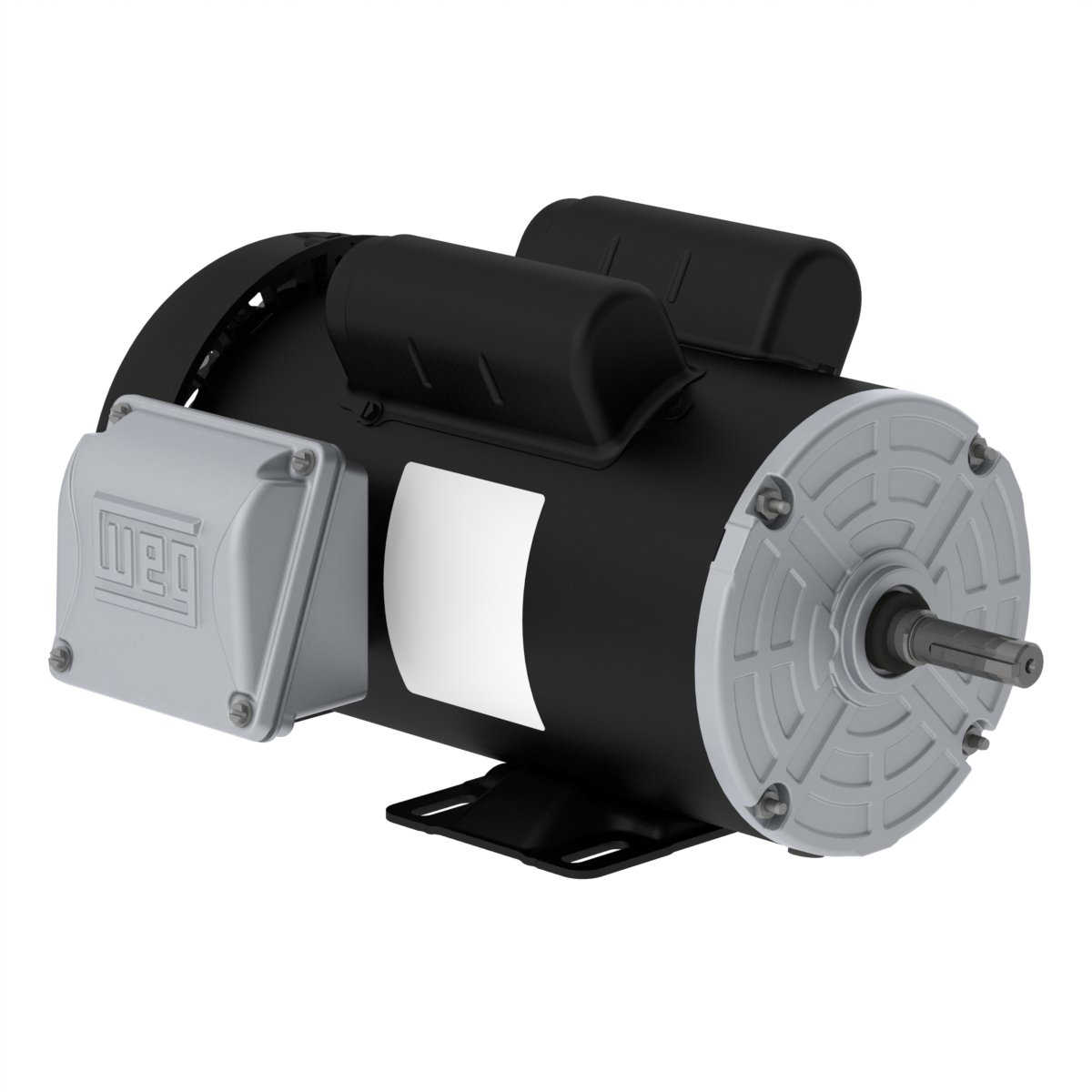

.7512ES1B56-S WEG 3/4HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: .7512ES1B56-S

Selected accessories will also be added to cart

$576.72 / Each

Quantity:

IC411 - TEFC, 56 Frame, 115/208-230VAC Single Phase 60Hz, 13656436, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame	56
Output	0.75 HP (0.550 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1170 rpm
Slip	2.50 %
Rated voltage	115/208-230 V
Rated current	9.40/5.20-4.70 A
L. R. Amperes	60.2/33.3-30.1 A
LRC	6.4x(Code L)
No load current	6.00/2.59-3.00 A
Rated torque	3.32 ft.lb
Locked rotor torque	220 %
Breakdown torque	240 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	0.1597 sq.ft.lb
Design	L
Insulation Class	F
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	54.0 dB(A)
Approx. weightÂ³	41.3 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
59.0	67.0	70.0

Power factor

50%	75%	100%
0.58	0.67	0.73

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Plastic
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 15

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

1200RPM

Enclosure

TEFC

Frame

56

Horsepower

3/4HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC
