/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Farm Duty - Poultry Fan/.7518AS1BRBPF56-S WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

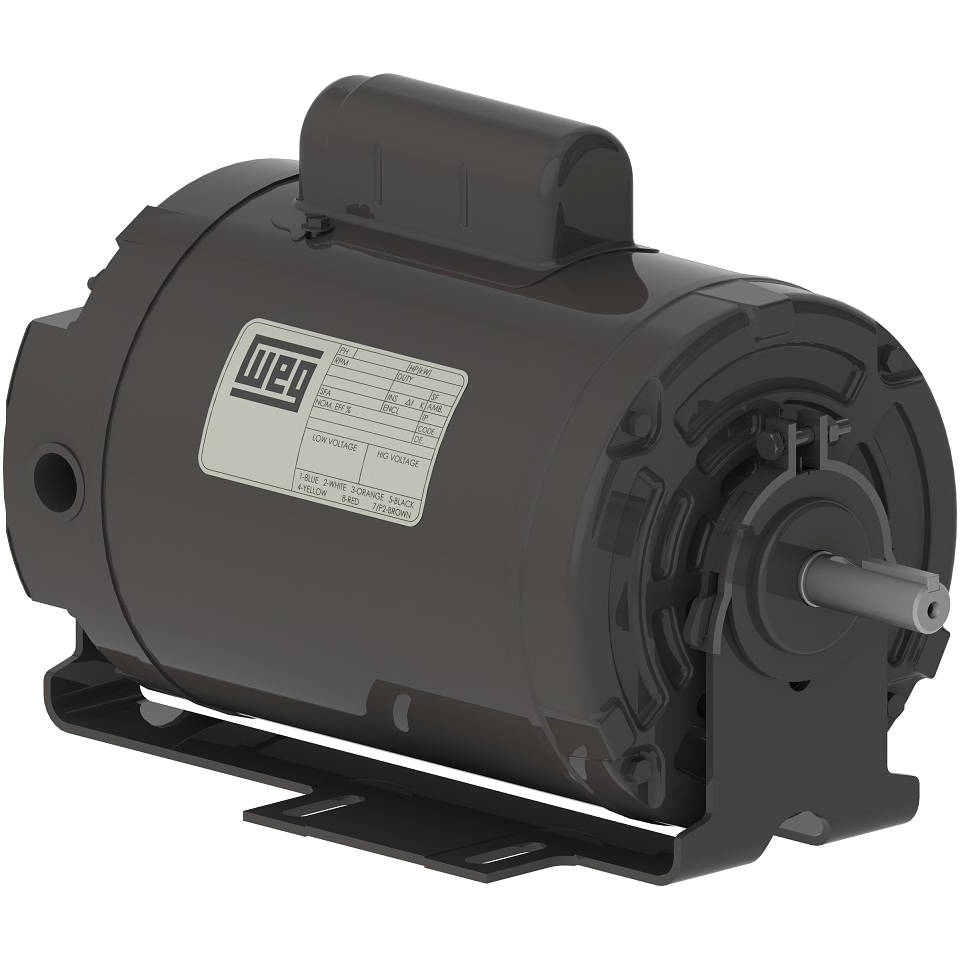

.7518AS1BRBPF56-S WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM
Enlarge Photo

Product ID: .7518AS1BRBPF56-S

.7518AS1BRBPF56-S WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518AS1BRBPF56-S

Selected accessories will also be added to cart
$356.00 / Each
Quantity:
IC410 - TEAO, IP55, 56 Frame, 115/208-230VAC 60Hz Single Phase, 15498046, Rolled Steel, Foot Mounted, 5/8" Keyed Shaft

Electric Motors

Frame56
Output0.75 HP (0.550 kW)
Number of Poles4
Frequency60 Hz
Rated speed1750 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current11.3/5.40-5.63 A
L. R. Amperes70.1/33.5-34.9 A
LRC6.2x(Code M)
No load current9.40/3.80-4.70 A
Rated torque2.25 ft.lb
Locked rotor torque330 %
Breakdown torque300 %
Locked rotor time0s (cold) 0s (hot)
DesignN
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³28.7 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
57.565.068.5

Power factor

50%75%100%
0.430.530.62

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWith
Overload protector (phenolic)Automatic
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEAO
Frame
56
Horsepower
3/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
Application
Poultry Fan
