/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Shark/TENV, C-Face, Footless/.7518EP3ESS56CFL WEG 3/4HP Shark Stainless Steel Electric Motor, 1800RPM
Click Image to Expand

Product ID: .7518EP3ESS56CFL

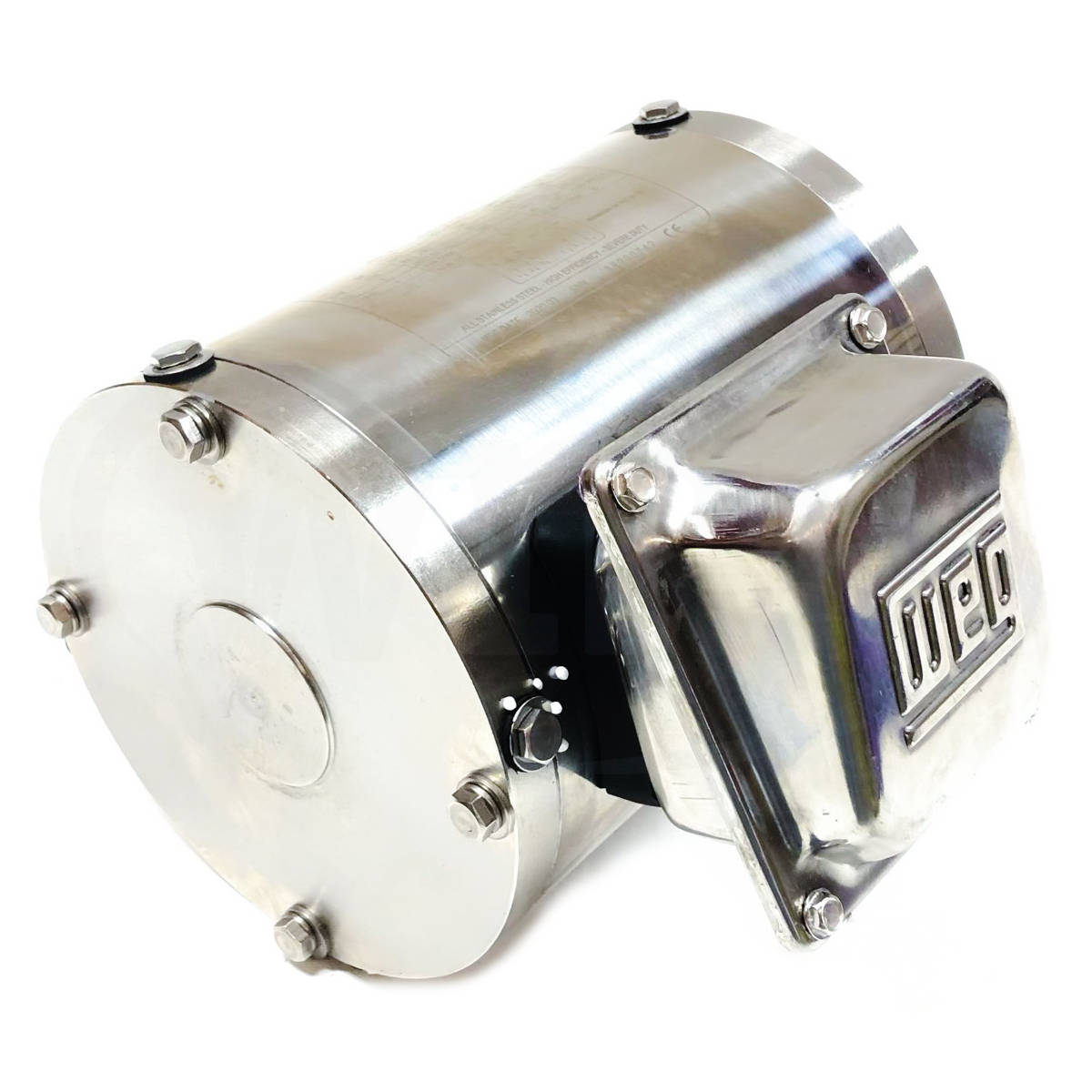

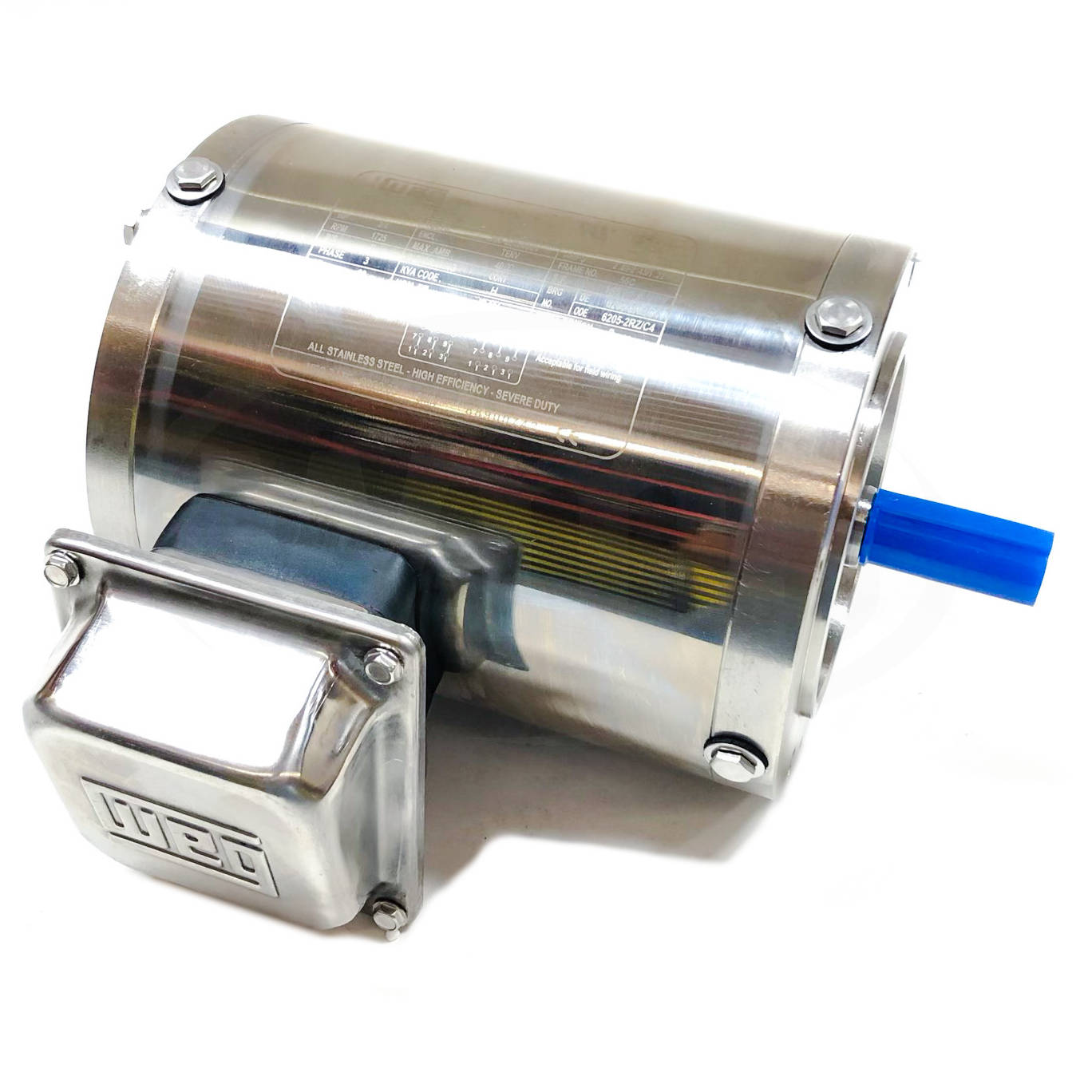

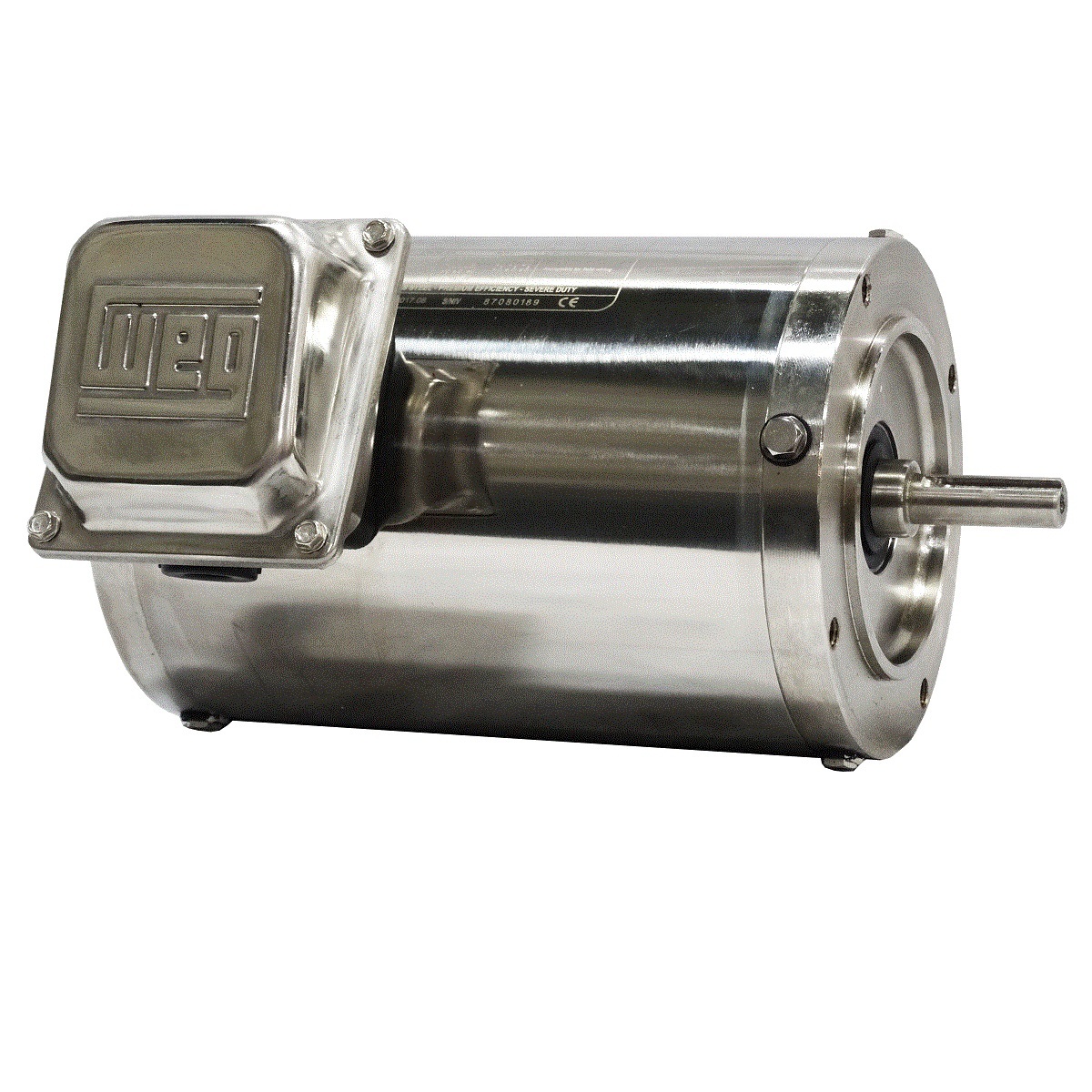

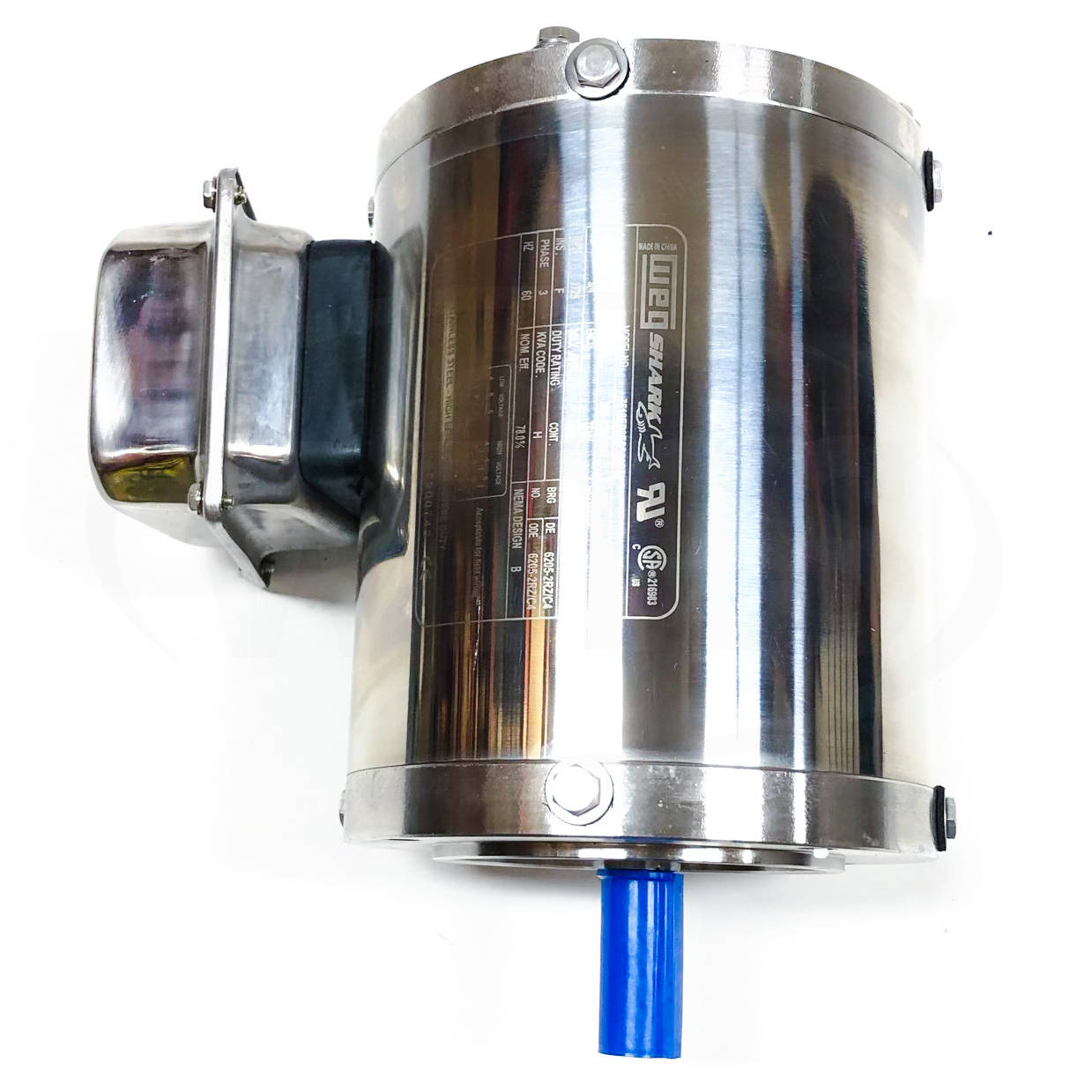

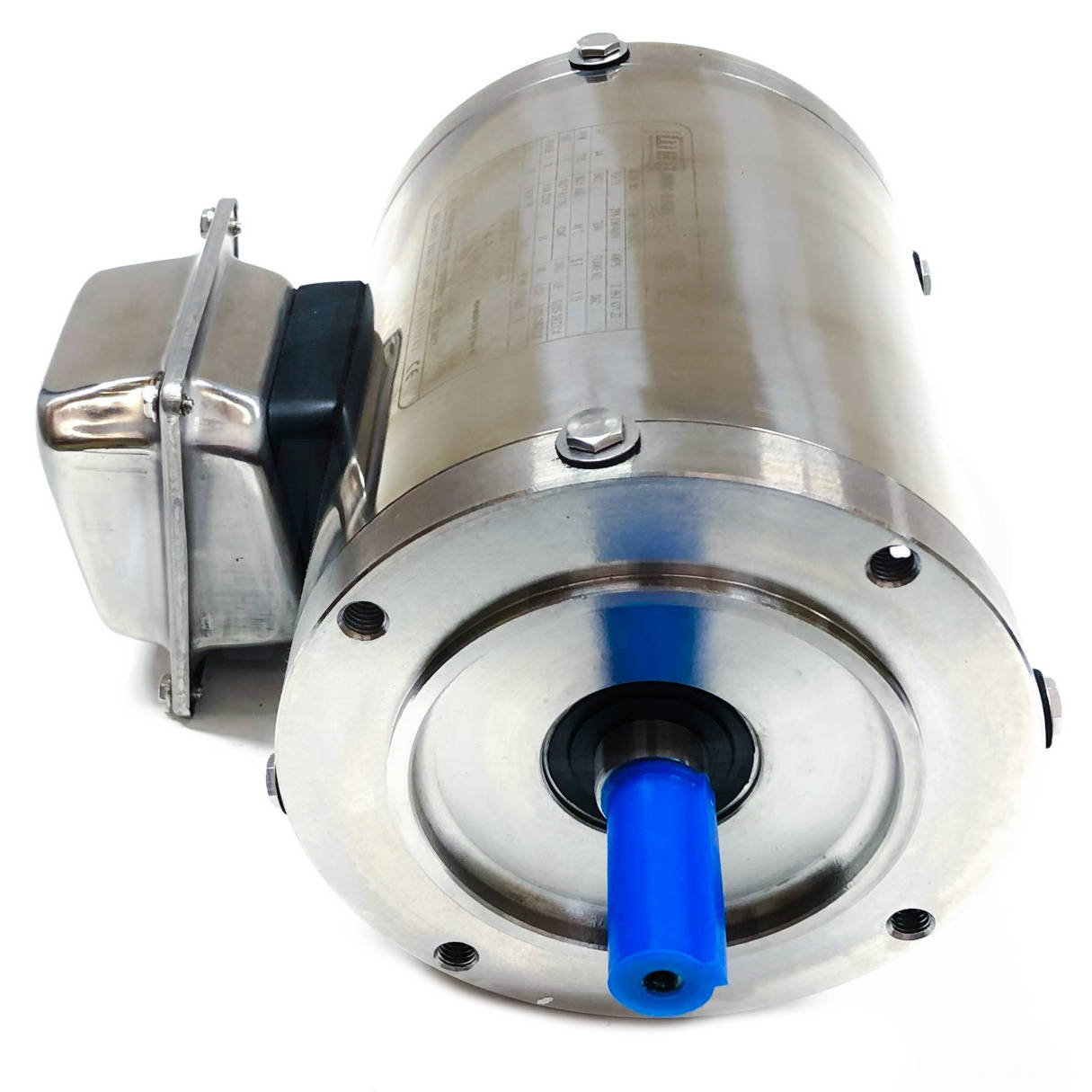

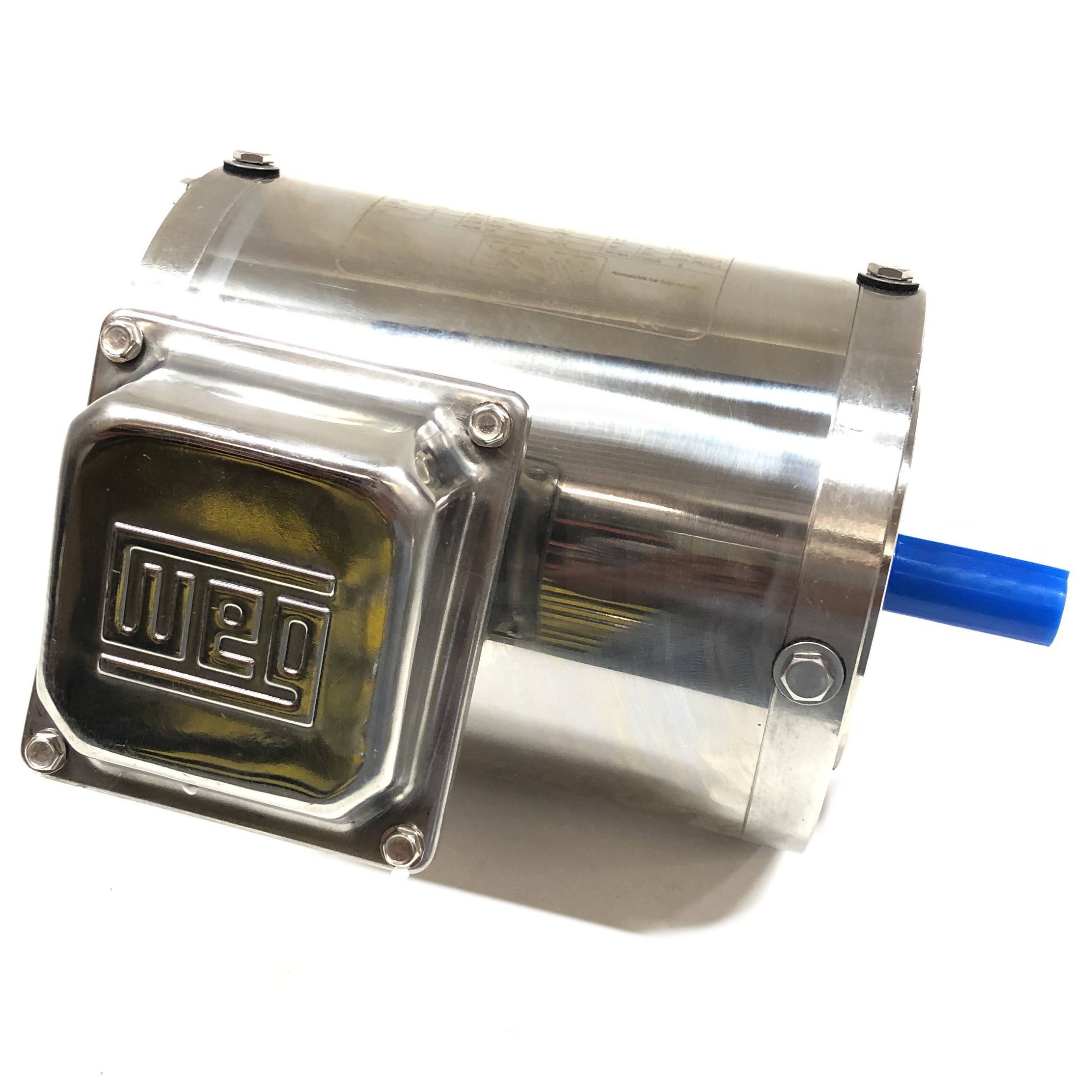

.7518EP3ESS56CFL WEG 3/4HP Shark Stainless Steel Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518EP3ESS56CFL

Available Stock: 1
Selected accessories will also be added to cart
$701.22 / Each
Quantity:
TENV, IP55, 56C Frame, 208-230/460V 3-Phase 60Hz, 14418930, C-Face, Footless, High Efficiency
Accessories
Select any of the accessories below to purchase them with this inventory item:

Description

For use in food processing, pharmaceutical and other environments requiring extreme cleanliness and frequent washdowns.

Product Features

StandardNEMA MG-1
Degree of ProtectionIP55
MountingF-1
FlangeC
Frequency60 Hz
Output rating0.75 HP
EnclosureTENV
Number of poles4P
MountingFootless
EfficiencyHigh Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed1800 rpm

Product Details

StandardNEMA MG-1
Degree of ProtectionIP55
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60 Hz
Output rating0.75 HP
EnclosureTENV
Number of poles4P
Motor ApplicationShark
MountingFootless
EfficiencyHigh Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed1800 rpm

This document doesn't exist for this product.

Type
Electric Motor
Speed
1800RPM
Frame
56C
Enclosure
TENV
Input Phase
3-Phase
Horsepower
3/4HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
