.7518ES1B56C-S WEG 3/4HP Electric Motor, 1800RPM

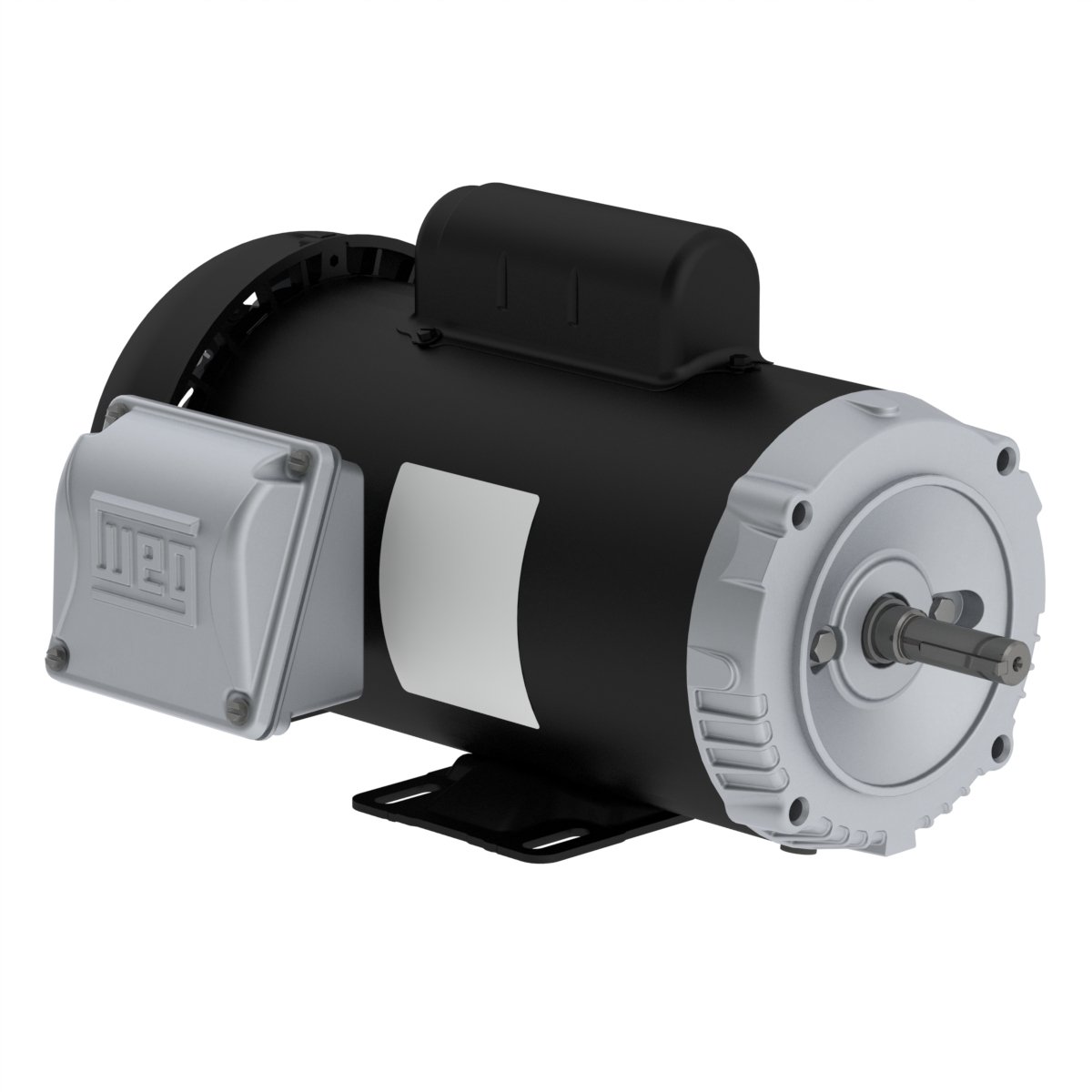

Enlarge Photo

Product ID: .7518ES1B56C-S

.7518ES1B56C-S WEG 3/4HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES1B56C-S

Selected accessories will also be added to cart
$329.30 / Each
Quantity:
IC411 - TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 13386544, C-Face, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output0.75 HP (0.550 kW)
Number of Poles4
Frequency60 Hz
Rated speed1745 rpm
Slip3.06 %
Rated voltage115/208-230 V
Rated current10.6/5.86-5.30 A
L. R. Amperes67.8/37.5-33.9 A
LRC6.4x(Code M)
No load current8.00/3.45-4.00 A
Rated torque2.23 ft.lb
Locked rotor torque300 %
Breakdown torque270 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0778 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Approx. weight³30.8 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
57.065.068.5

Power factor

50%75%100%
0.470.580.67

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Frame
56C
Enclosure
TEFC
Horsepower
3/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
