/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Farm Duty - Poultry Fan/.7518ES1BRBPFB56 WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

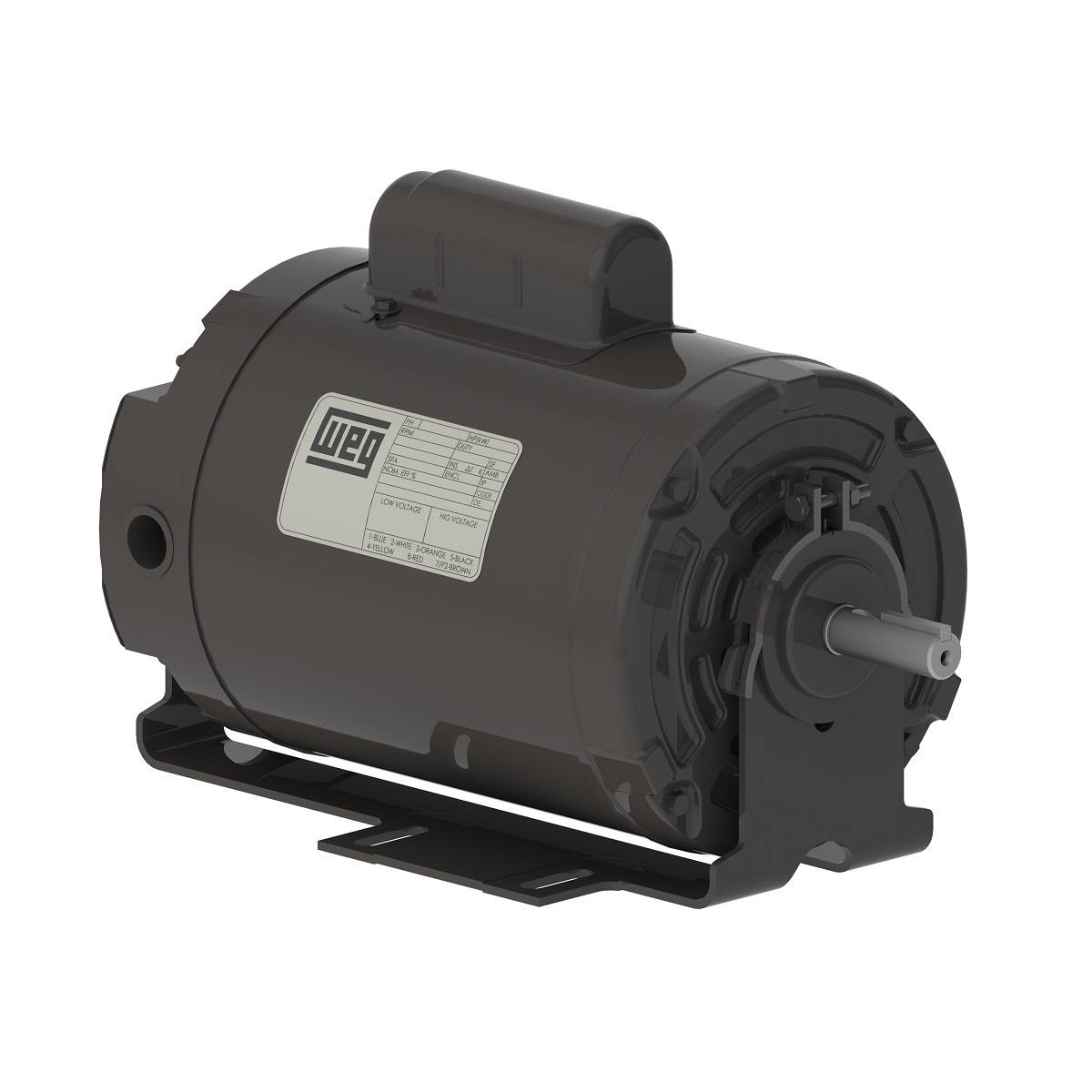

.7518ES1BRBPFB56 WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM
Enlarge Photo

Product ID: .7518ES1BRBPFB56

.7518ES1BRBPFB56 WEG 3/4HP Farm Duty Poultry Fan Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ES1BRBPFB56

Selected accessories will also be added to cart
$356.00 / Each
Quantity:
IC410 - TEAO, IP44, B56 Frame, 115/208-230V, 60 Hz, Single Phase

Electric Motors

FrameB56
Output0.75 HP (0.550 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage115/208-230 V
Rated current11.2/5.30-5.60 A
L. R. Amperes69.4/32.9-34.7 A
LRC6.2x(Code M)
No load current9.00/3.88-4.50 A
Rated torque2.21 ft.lb
Locked rotor torque300 %
Breakdown torque300 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0975 sq.ft.lb
Insulation ClassB
Temperature rise80 K
Service factor1.25 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP44
EnclosureIC410 - TEAO
MountingF-1
Rotation¹Both (CW and CCW)
Approx. weight³32.1 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
59.067.070.0

Power factor

50%75%100%
0.430.520.62

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
Painting
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Shaft EndKey
Resilient BaseWith

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 ZZ 6202 ZZ
SealingWithout Bearing SealWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
49 lb81 lb
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEAO
Horsepower
3/4HP
Frame
B56
Application
Poultry Fan
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
