/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, TEFC/Foot Mount/.7518ET3J56-S WEG 3/4HP General Purpose Electric Motor, 1800RPM

Product ID: .7518ET3J56-S

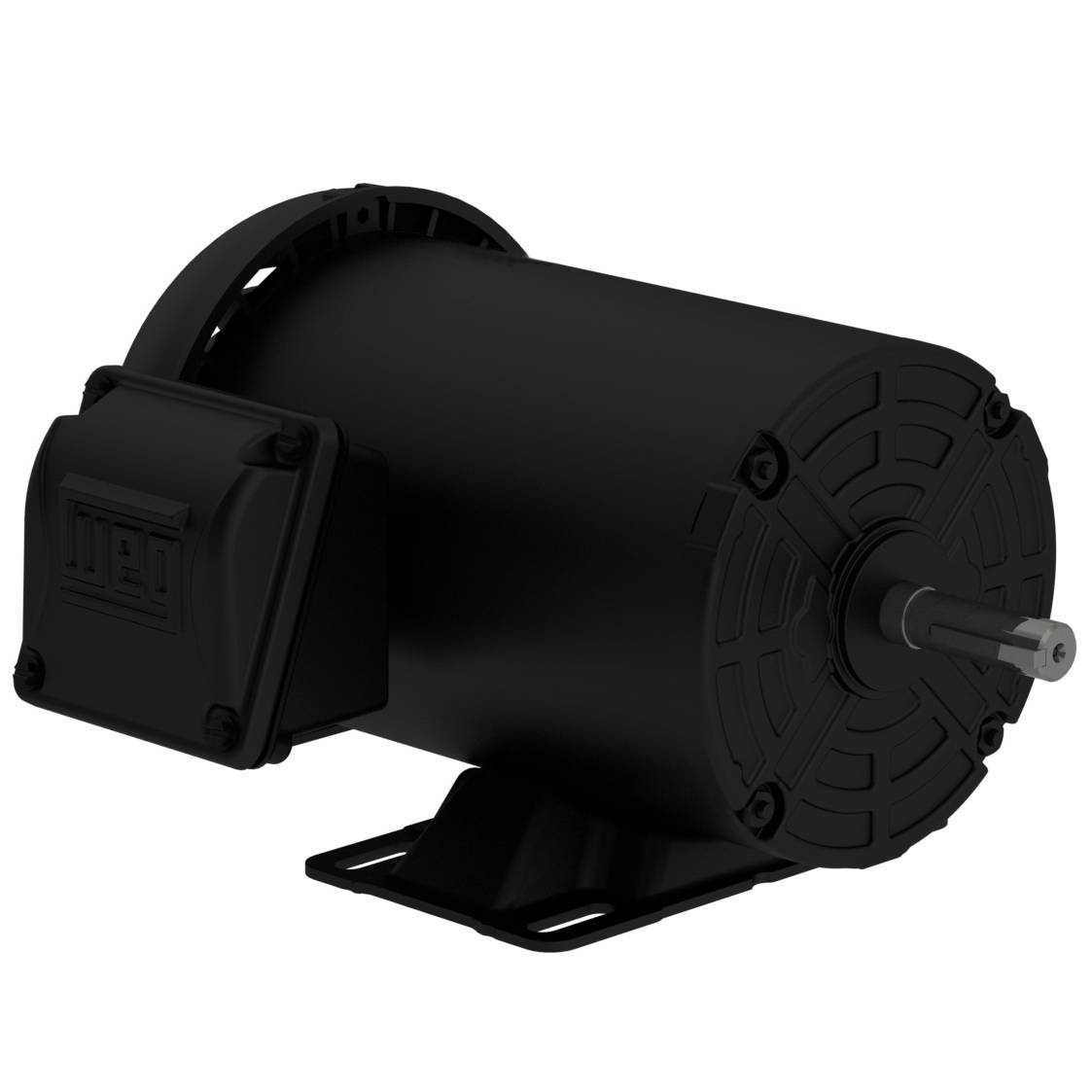

.7518ET3J56-S WEG 3/4HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518ET3J56-S

Selected accessories will also be added to cart

$350.66 / Each

Quantity:

IC411 - TEFC, IP55, 56 Frame, 380/660VAC 60Hz 3 Phase, 14817724, Premium Efficiency, Rolled Steel Frame, Foot Mounted, 5/8" Keyed Shaft

Electric Motors

Frame	56
Output	0.75 HP (0.550 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	380/660 V
Rated current	1.44/0.829 A
L. R. Amperes	11.1/6.38 A
LRC	7.7x(Code L)
No load current	0.995/0.573 A
Rated torque	2.24 ft.lb
Locked rotor torque	240 %
Breakdown torque	360 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	0.0854 sq.ft.lb
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +50?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	52.0 dB(A)
Approx. weight?	30.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
75.5	80.0	81.5

Power factor

50%	75%	100%
0.49	0.62	0.71

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	0.881"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	Only primer
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6

6203ZZC3 Koyo Ball Bearing, Shielded

6203ZZC3 Koyo Ball Bearing, Shielded

6203-ZZC3, 17mm x 40mm x 12mm
Available Stock: 14

MFG: JTEKT Corporation

6203-ZZC3

$6.00 / Each

Type

Electric Motor

Input Phase

3-Phase

Speed

1800RPM

Frame

56

Enclosure

TEFC

Horsepower

3/4HP

Input Voltage

380VAC

Input Voltage

660VAC
