.7518OS1DEC56 WEG 3/4HP Fan and Exhaust Electric Motor, 1800RPM

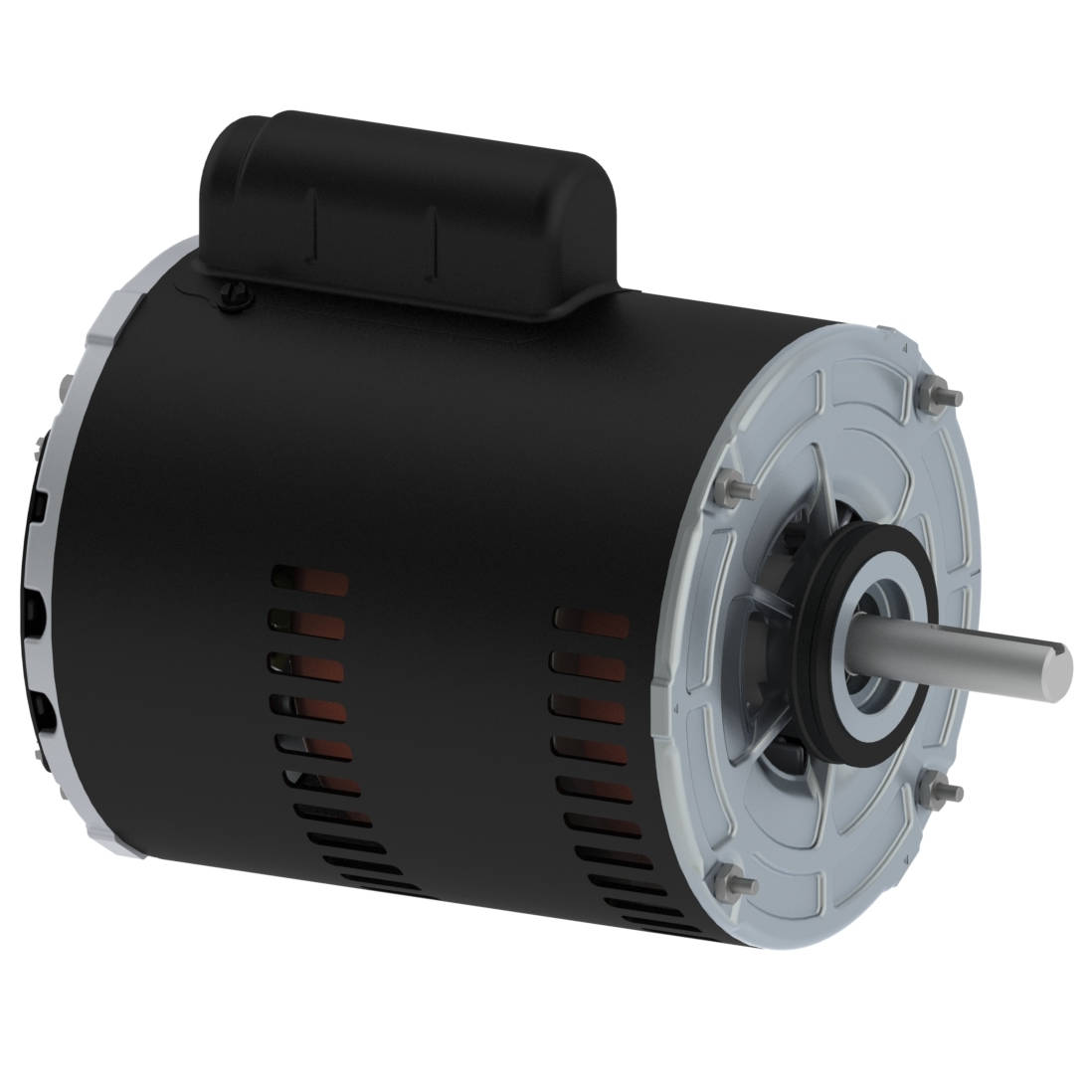

Enlarge Photo

Product ID: .7518OS1DEC56

.7518OS1DEC56 WEG 3/4HP Fan and Exhaust Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: .7518OS1DEC56

Selected accessories will also be added to cart
$178.89 / Each
Quantity:
IC01 - ODP, IP21, E56 Frame, 240VAC 60Hz Single Phase, 13898194, Rolled Steel Frame, Footless, 1/2" Flatted Shaft

Electric Motors

FrameE56
Output0.75 HP (0.550 kW)
Number of Poles4
Frequency60 Hz
Rated speed1725 rpm
Slip4.17 %
Rated voltage240 V
Rated current5.47 A
L. R. Amperes31.7 A
LRC5.8x(Code M)
No load current4.60 A
Rated torque2.28 ft.lb
Locked rotor torque105 %
Breakdown torque210 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0902 sq.ft.lb
Insulation ClassB
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP21
EnclosureIC01 - ODP
MountingF-1
Rotation¹CW
Approx. weight³19.0 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
51.959.159.0

Power factor

50%75%100%
0.470.590.71

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Winding thermal protectionThermostat - 2 wires 1 per phase 130°C
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
3/4HP
Frame
E56
