/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/C-Face, Foot Mount/.7536ES1B56C-S WEG 3/4HP Electric Motor, 3600RPM
.7536ES1B56C-S WEG 3/4HP Electric Motor, 3600RPM

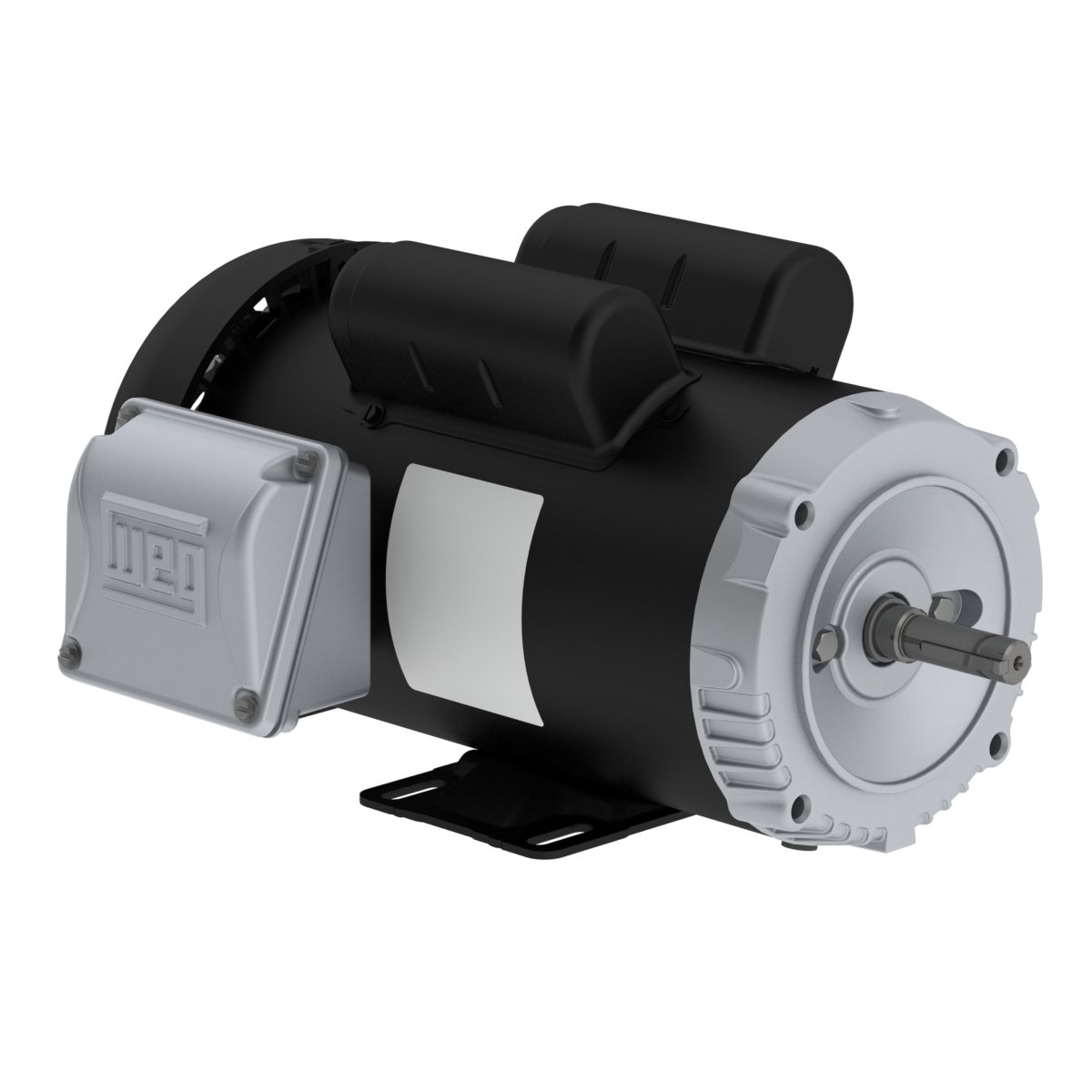

Enlarge Photo

Product ID: .7536ES1B56C-S

.7536ES1B56C-S WEG 3/4HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536ES1B56C-S

Selected accessories will also be added to cart
$314.17 / Each
Quantity:
IC411 - TEFC, 56C Frame, 115/208-230VAC Single Phase 60Hz, 12882564, C-Face, Foot Mount, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output0.75 HP (0.550 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current8.00/4.42-4.00 A
L. R. Amperes64.0/35.4-32.0 A
LRC8.0x(Code L)
No load current4.00/1.72-2.00 A
Rated torque1.11 ft.lb
Locked rotor torque280 %
Breakdown torque290 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)0.0394 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.15 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Approx. weight³28.6 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
52.062.066.0

Power factor

50%75%100%
0.810.870.91

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
TEFC
Horsepower
3/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
