/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, TEFC/Jet Pump/.7536ES1BJPR56C WEG 3/4HP Centrifugal Pump Electric Motor, 3600RPM

Product ID: .7536ES1BJPR56C

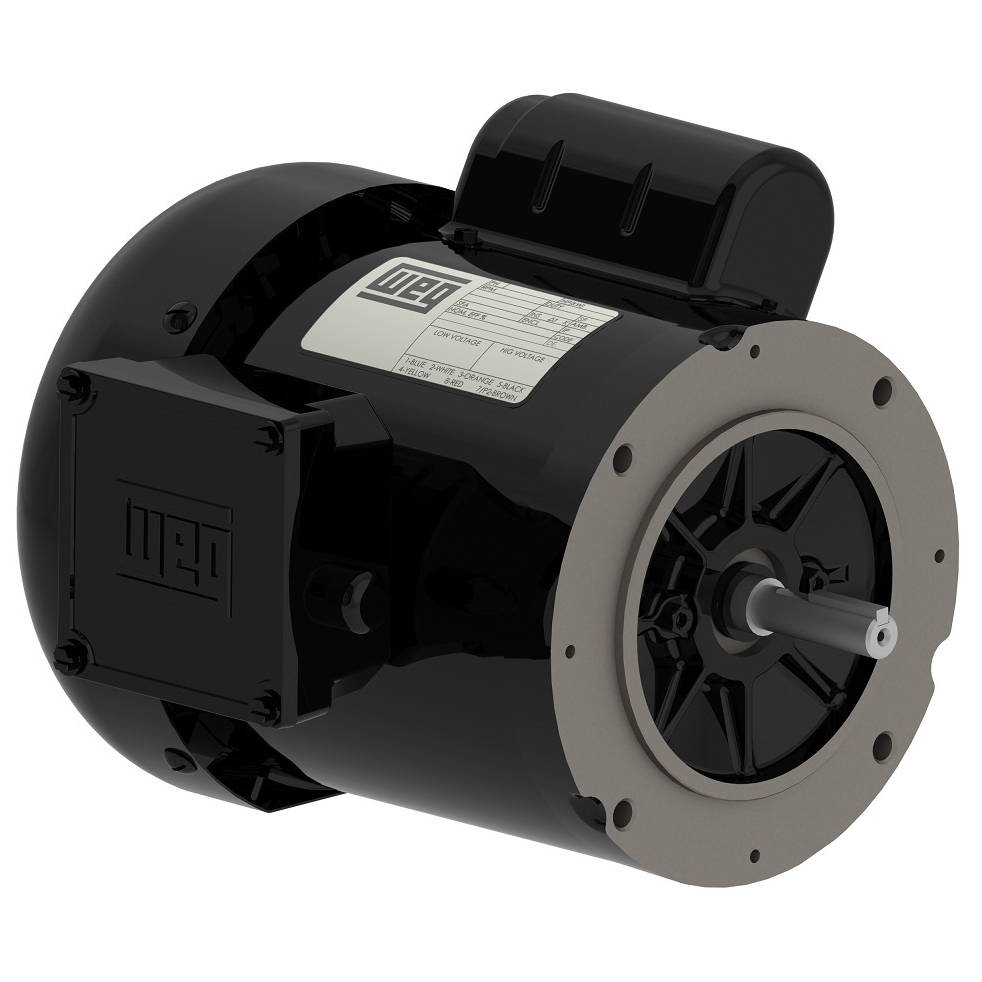

.7536ES1BJPR56C WEG 3/4HP Centrifugal Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536ES1BJPR56C

Selected accessories will also be added to cart

$303.49 / Each

Quantity:

IC411 - TEFC, IP55, B56C Frame, 115/208-230VAC 60Hz Single Phase, 10386961, Footless, C-Face, Rolled Steel Frame, 316 Stainless Steel Keyed Shaft

Electric Motors

Frame	B56C
Output	0.75 HP (0.550 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3490 rpm
Slip	3.06 %
Rated voltage	115/208-230 V
Rated current	10.4/5.00-5.20 A
L. R. Amperes	65.5/31.5-32.8 A
LRC	6.3x(Code M)
No load current	7.60/3.28-3.80 A
Rated torque	1.13 ft.lb
Locked rotor torque	300 %
Breakdown torque	290 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.0396 sq.ft.lb
Insulation Class	B
Temperature rise	80 K
Service factor	1.15 (1.00 @ 208V)
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20Â°C to +40Â°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
RotationÂ¹	Both (CW and CCW)
Noise levelÂ²	55.0 dB(A)
Approx. weightÂ³	27.6 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
52.0	60.0	64.0

Power factor

50%	75%	100%
0.54	0.64	0.72

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	2xNPT 1/2"
Terminal Block	Without
Drain	Rubber, automatic
Shaft Material	AISI 316 Stainless Steel
Painting	Munsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Shaft End	Key
Resilient Base	Without
Overload protector (phenolic)	Automatic

6203-2RS-C3 JTEKT/Koyo Ball Bearing, Double Sealed

6203-2RS-C3 JTEKT/Koyo Ball Bearing, Double Sealed

40mm x 17mm x 12mm
Available Stock: 71

MFG: The Timken Company

6203-2RS

$8.98 / Each

62022RDC3 Koyo Ball Bearing, Rubber Sealed

62022RDC3 Koyo Ball Bearing, Rubber Sealed

6202-2RS, 15mm x 35mm x 11mm
Available Stock: 17

MFG: JTEKT Corporation

6202-2RS

$8.64 / Each

Type

Electric Motor

Input Phase

Single Phase

Speed

3600RPM

Enclosure

TEFC

Horsepower

3/4HP

Input Voltage

230VAC

Input Voltage

208VAC

Input Voltage

115VAC

Frame

B56C
