/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TENV, C-Face, Footless/.7536NT3EHD56CFL WEG 3/4HP Hydroduty Washdown Electric Motor, 3600RPM
Click Image to Expand

Product ID: .7536NT3EHD56CFL

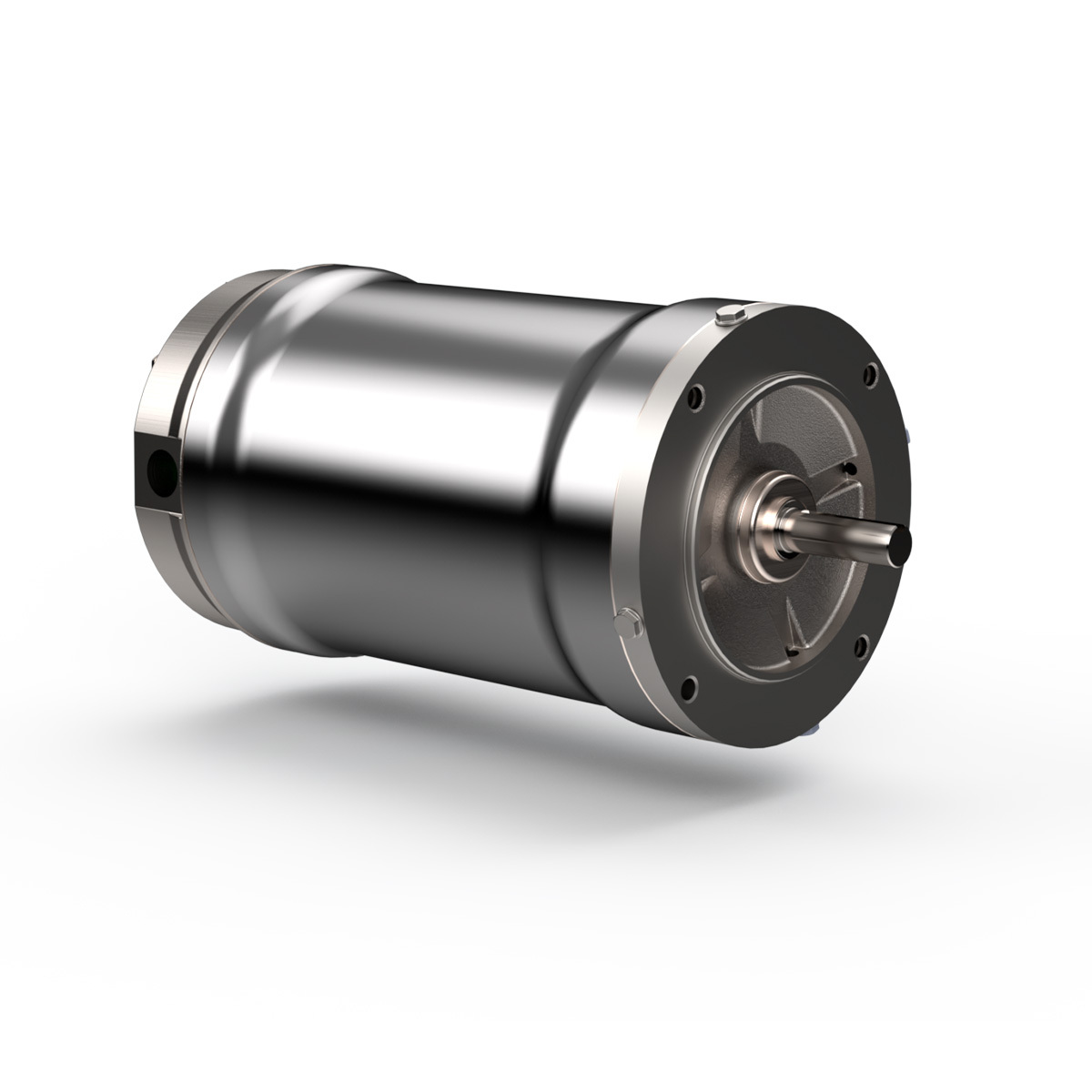

.7536NT3EHD56CFL WEG 3/4HP Hydroduty Washdown Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536NT3EHD56CFL

Selected accessories will also be added to cart
$1,284.27 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14763236, C-Face, Footless, Stainless Steel, Standard Efficiency, 5/8" Keyed Shaft, EZ-Connect
Accessories
Select any of the accessories below to purchase them with this inventory item:

Specifications

StandardNEMA MG-1
Degree of ProtectionIP66
MountingF-1
FlangeC
Frame MaterialStainless steel
Frequency60/50 Hz
Output rating0.75 HP
EnclosureTENV
Number of poles2P
Motor ApplicationHydroDuty
MountingFootless
EfficiencyStandard Efficiency
Terminal box¹Left position
Frame56C
Voltage230/460 V
Synchronous speed3600/3000 rpm

Promo Video

Documents

Type
Electric Motor
Speed
3600RPM
Frame
56C
Enclosure
TENV
Input Phase
3-Phase
Horsepower
3/4HP
Input Voltage
230VAC
Input Voltage
460VAC
