/Products/Electric Motors/Single Phase/WEG Single Phase Electric Motors/Rolled Steel, ODP/Jet Pump/.7536OS1BJPRW56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

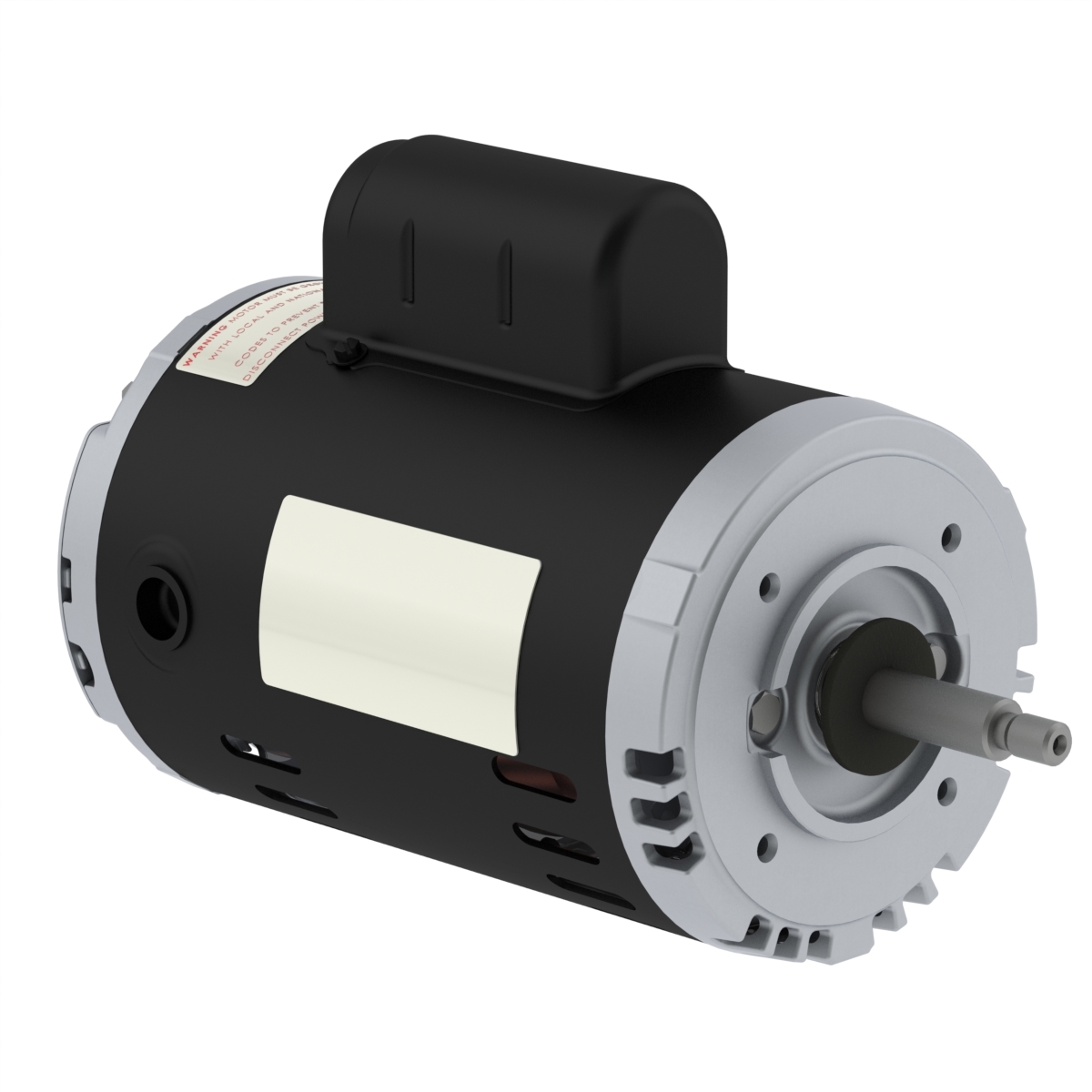

.7536OS1BJPRW56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: .7536OS1BJPRW56J-S

.7536OS1BJPRW56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OS1BJPRW56J-S

Selected accessories will also be added to cart
$263.44 / Each
Quantity:
Jet Pump - 56J 3450RPM 115/208-230V Single Phase 60Hz, ODP, Footless, 13664416

Electric Motors

FrameW56J
Output0.75 HP (0.550 kW)
Number of Poles2
Frequency60 Hz
Rated speed3500 rpm
Slip2.78 %
Rated voltage115/208-230 V
Rated current9.60/5.31-4.80 A
L. R. Amperes76.8/42.5-38.4 A
LRC8.0x(Code N)
No load current6.80/2.93-3.40 A
Rated torque1.11 ft.lb
Locked rotor torque260 %
Breakdown torque300 %
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0273 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.50 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹CCW
Noise level²56.0 dB(A)
Approx. weight³22.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
56.063.067.0

Power factor

50%75%100%
0.540.660.74

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodNot Balanced
Drip CoverWithout
Resilient BaseWithout

 Loading...

 Loading...

Bearing details

 Drive EndNon Drive End
Bearing type6203 2RS 6202 2RS
SealingSem vedaçãoWithout Bearing Seal
Lubrication interval--
Lubricant amount--
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
21 lb43 lb

 Loading...

Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Frame
56J
Horsepower
3/4HP
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
