/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Rolled Steel, ODP/Jet Pump, Foot Mount/.7536OS3HJP56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

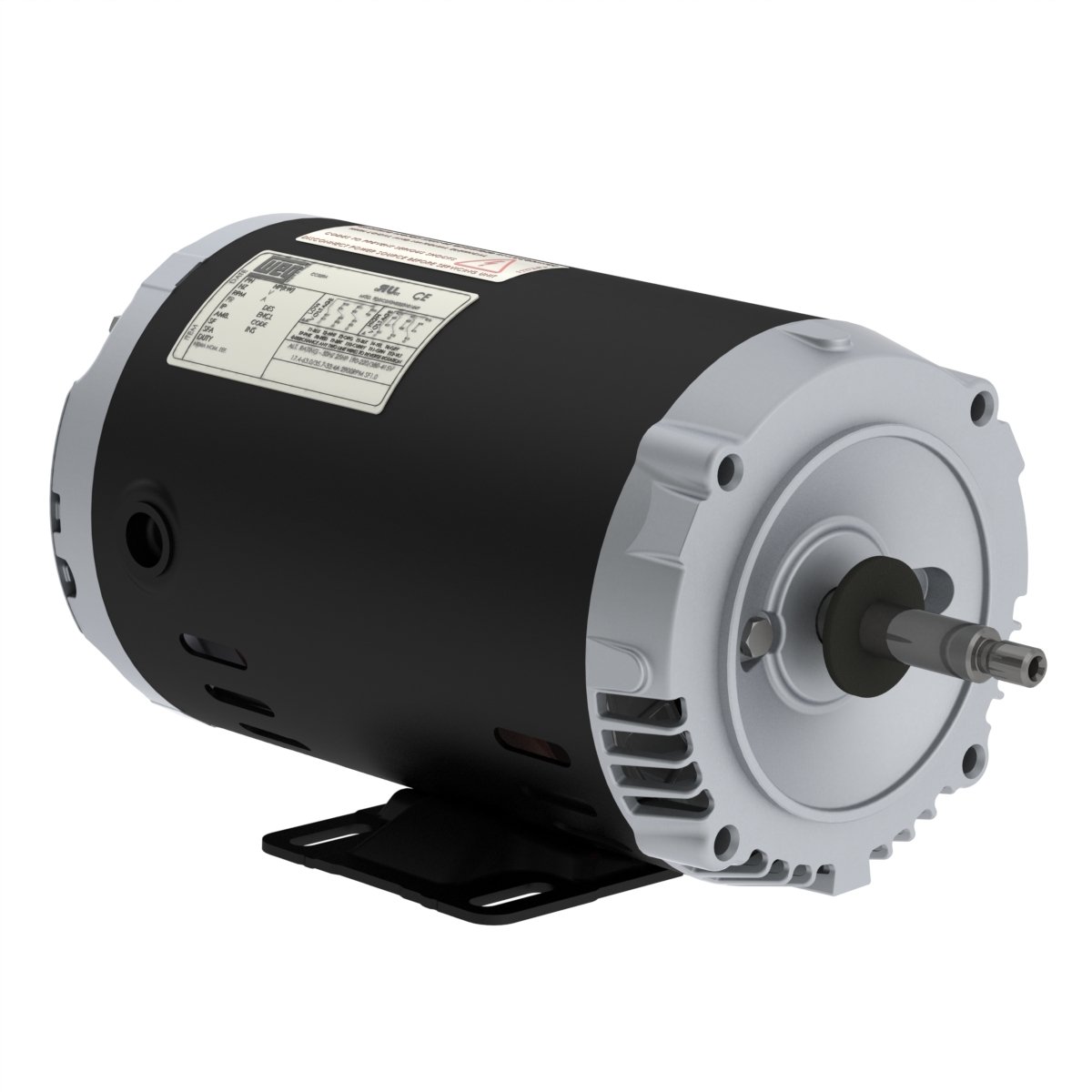

.7536OS3HJP56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: .7536OS3HJP56J-S

.7536OS3HJP56J-S WEG 3/4HP Jet Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OS3HJP56J-S

Selected accessories will also be added to cart
$241.19 / Each
Quantity:
IC01 - ODP, 56J Frame, 575VAC 3-Phase 60Hz, 12676614, J-Type, Foot Mount, Rolled Steel, Standard Efficiency

Electric Motors

Frame56J
Output0.75 HP (0.550 kW)
Number of Poles2
Frequency60 Hz
Rated speed3475 rpm
Slip3.47 %
Rated voltage575 V
Rated current0.992 A
L. R. Amperes6.15 A
LRC6.2x(Code K)
No load current0.640 A
Rated torque1.12 ft.lb
Locked rotor torque210 %
Breakdown torque260 %
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)0.0453 sq.ft.lb
Insulation ClassF
Service factor1.50
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation?CCW
Noise level?62.0 dB(A)
Approx. weight?21.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
64.0  68.5  70.0

Power factor

50%75%100%
0.57  0.70  0.79

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialAISI 304 Stainless Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing MethodWithout Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Frame
56J
Enclosure
ODP
Horsepower
3/4HP
Input Voltage
575VAC
