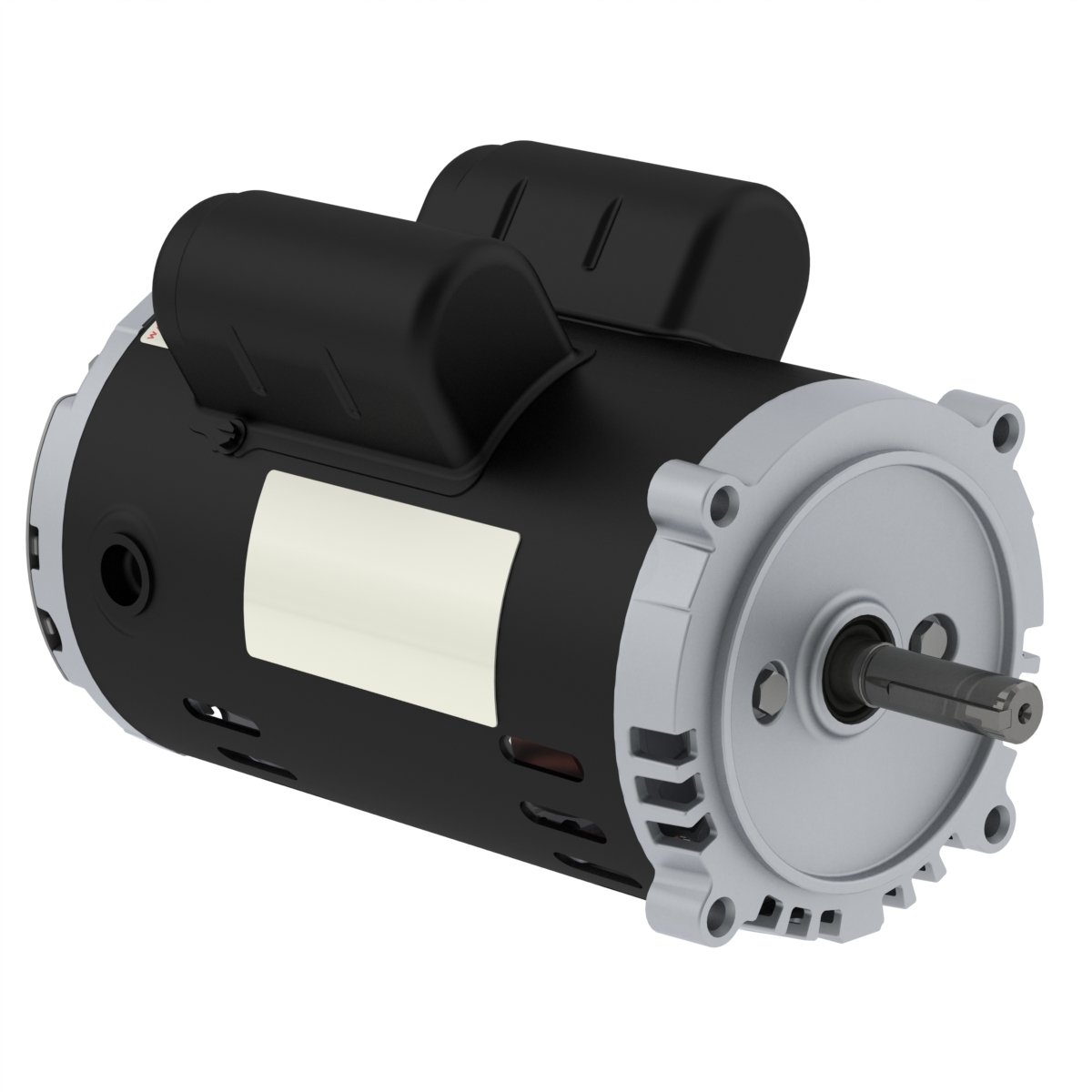

.7536OT1BO56CFL-S WEG 3/4HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: .7536OT1BO56CFL-S

.7536OT1BO56CFL-S WEG 3/4HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: .7536OT1BO56CFL-S

Selected accessories will also be added to cart
$324.85 / Each
Quantity:
IC01 - ODP, 56C Frame, 115/208-230VAC Single Phase 60Hz, 14573014, C-Face, Footless, Rolled Steel, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output0.75 HP (0.550 kW)
Number of Poles2
Frequency60 Hz
Rated speed3510 rpm
Slip2.50 %
Rated voltage115/208-230 V
Rated current6.80/3.76-3.40 A
L. R. Amperes58.5/32.3-29.2 A
LRC8.6x(Code K)
No load current2.40/1.03-1.20 A
Rated torque1.11 ft.lb
Locked rotor torque300 %
Breakdown torque300 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.0434 sq.ft.lb
DesignN
Insulation ClassF
Temperature rise80 K
Service factor1.25 (1.00 @ 208V)
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingF-1
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Approx. weight³29.0 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
64.071.076.2

Power factor

50%75%100%
0.880.920.93

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Frame
56C
Enclosure
ODP
Horsepower
3/4HP
Input Voltage
230VAC
Input Voltage
208VAC
Input Voltage
115VAC
