/Products/Electrical Components/Square D/8910DP32V02 Square D Definite Purpose Contactor, 2 Pole, 30 FLA
Click Image to Expand

Product ID: LF30220

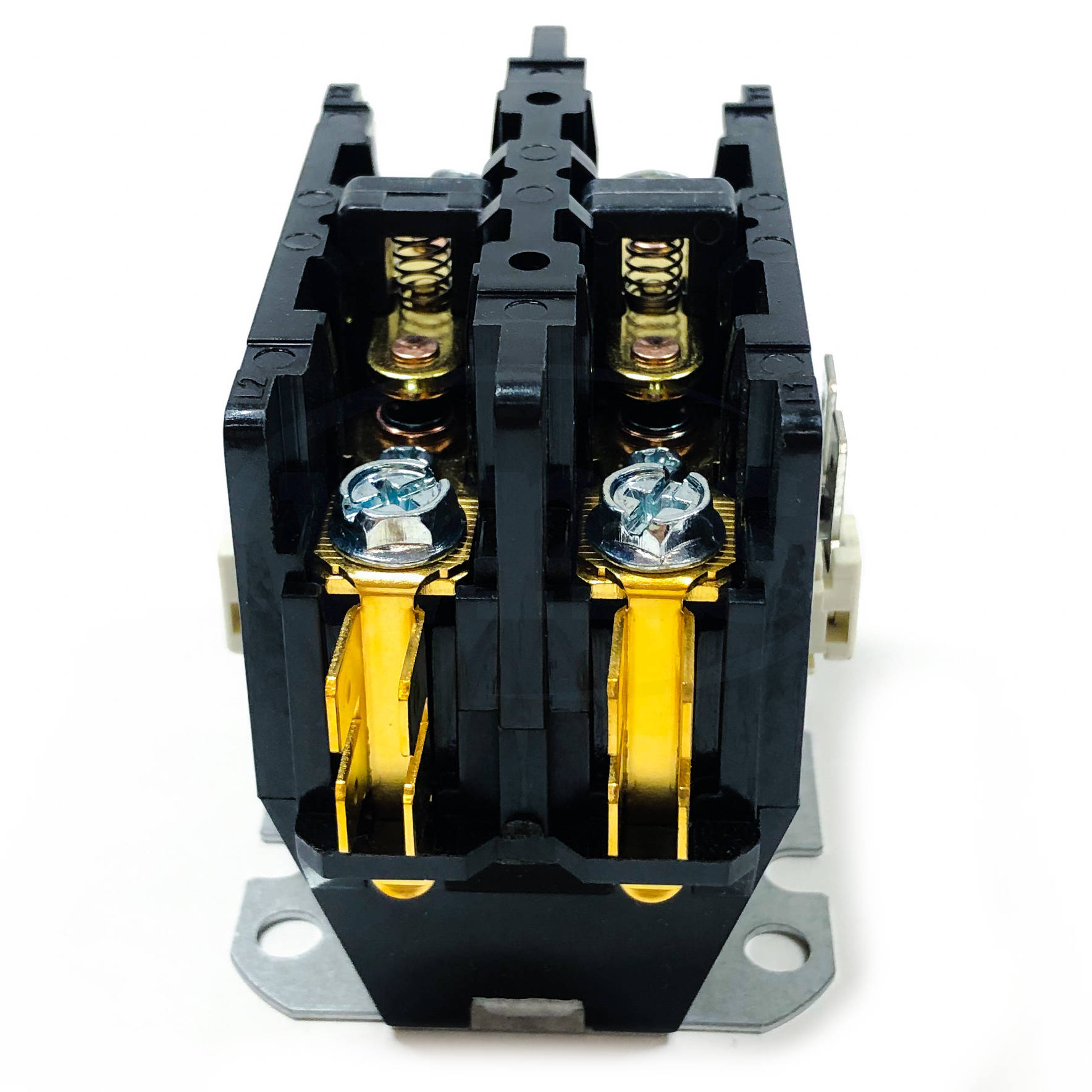

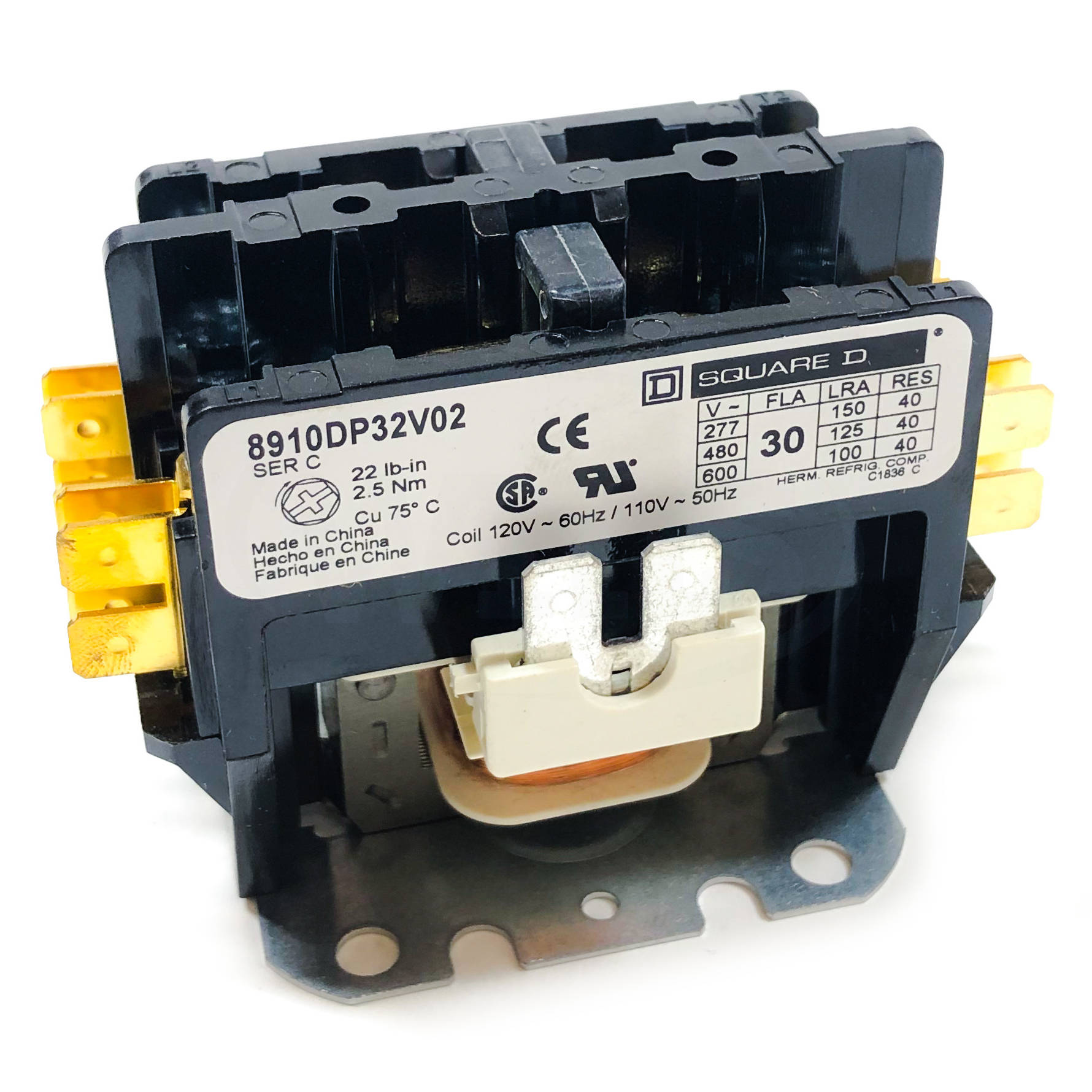

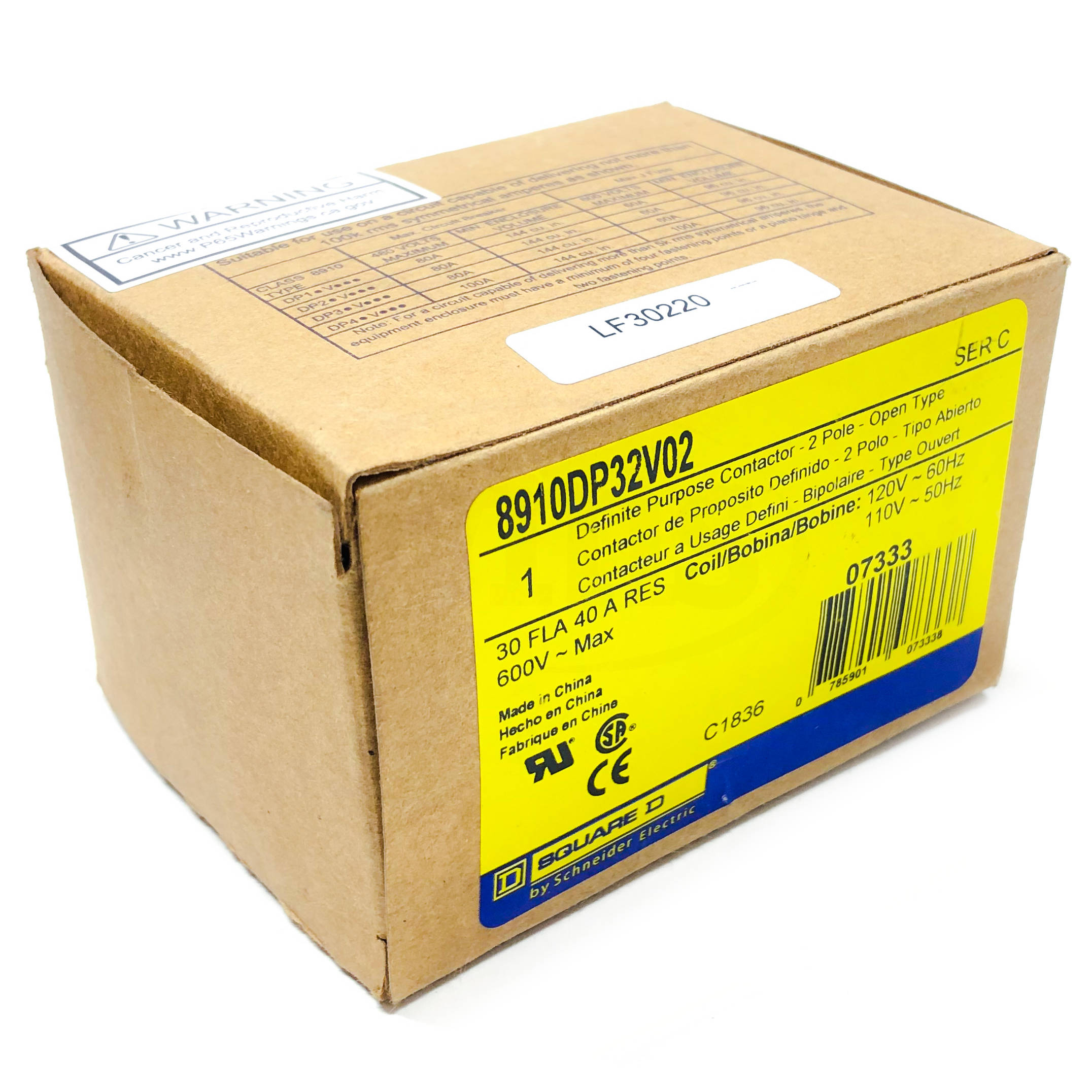

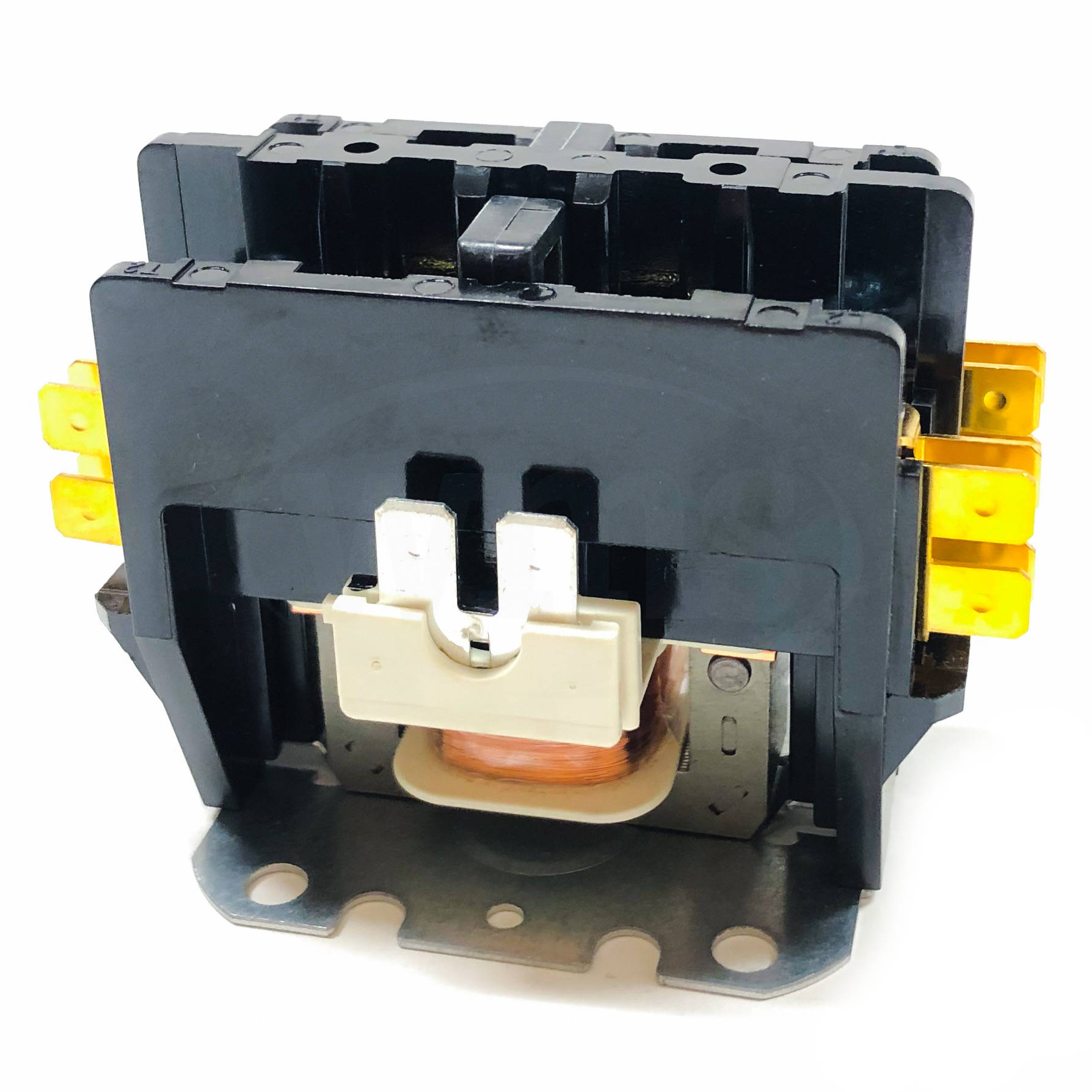

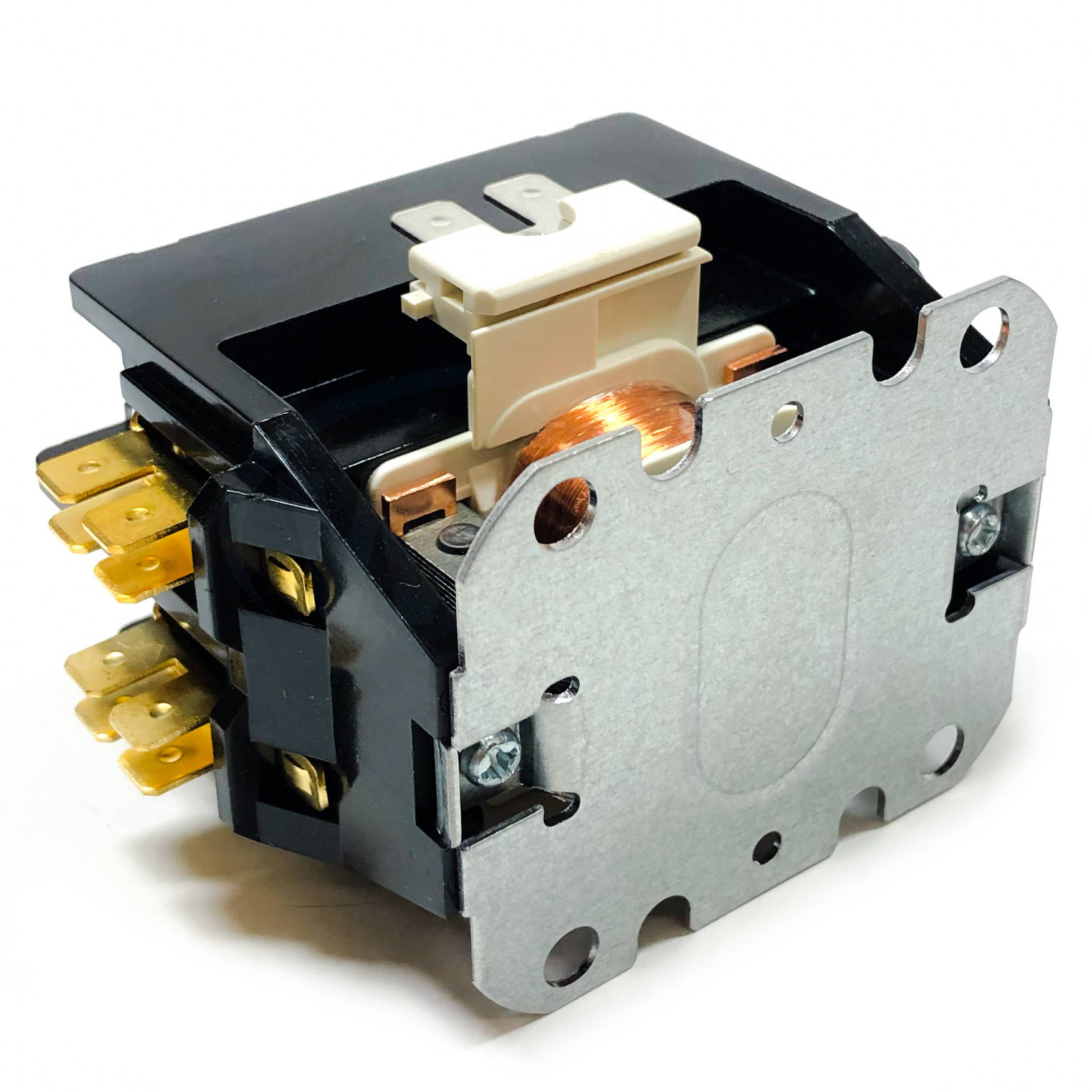

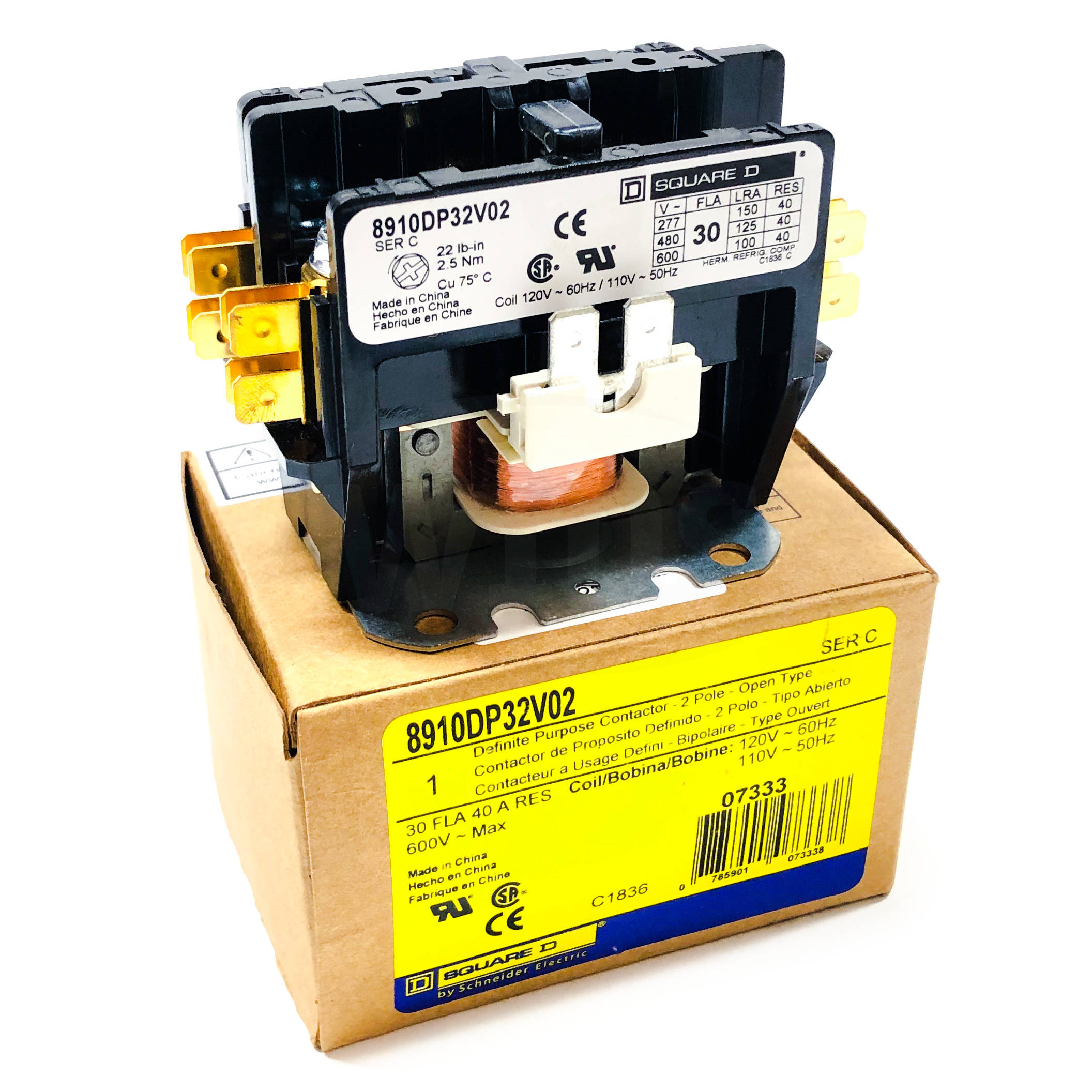

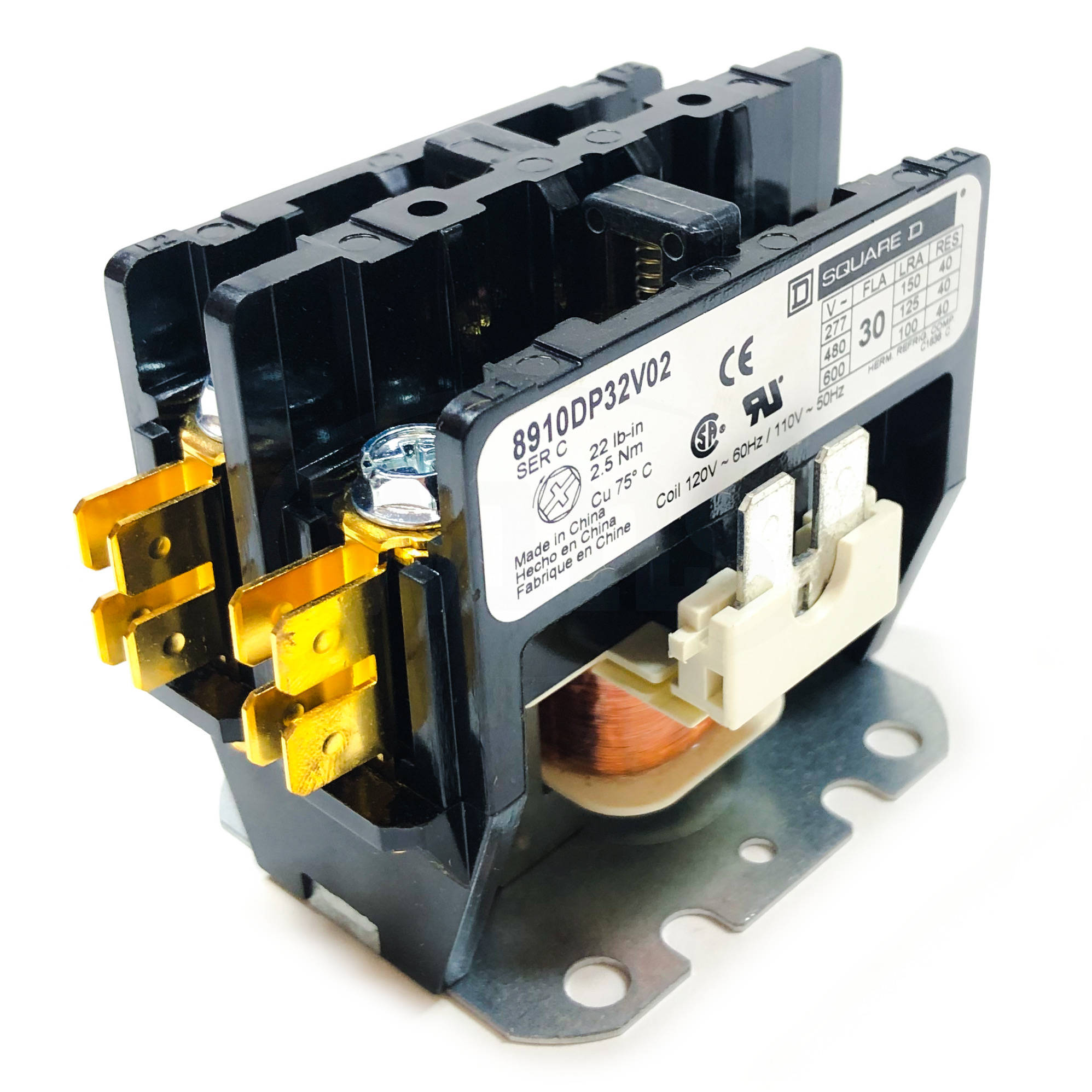

8910DP32V02 Square D Definite Purpose Contactor, 2 Pole, 30 FLA

MFG: Schneider Electric (Square D)
MFG Part Number: 8910DP32V02

Temporarily out of stock
Selected accessories will also be added to cart
$36.00 / Each
120VAC 60Hz Coil, 600VAC Max
Main
product or component type
Definite Purpose Contactor
Line Rated Current
30 A
Number of Poles
2P
pole contact composition
2 NO
range of product
DP
Complementary
Maximum Horse Power Rating
2 hp 115 V AC, 1 phase
5 hp 230 V AC, 1 phase
locked rotor rated current
125 A 460 V AC
100 A 575 V AC
150 A 277 V AC
[Ue] rated operational voltage
600 V AC
[Uc] control circuit voltage
120 V AC 60 Hz
110 V AC 50 Hz
Phase
1 phase
electrical connection
Binder head
Quick connect terminals
Environment
product certifications
UL recognized
CSA
Ordering and shipping details
Category
21356 - 8910 DP 32
Discount Schedule
CP1B
GTIN
00785901073338
Package weight(Lbs)
0.27 kg (0.6 lb(US))
Returnability
Country of origin
CN
