/Products/Surplus Industrial/Switches/9001KA2 Square D 30mm Fingersafe Contact Block
Click Image to Expand

Product ID: 9001KA2

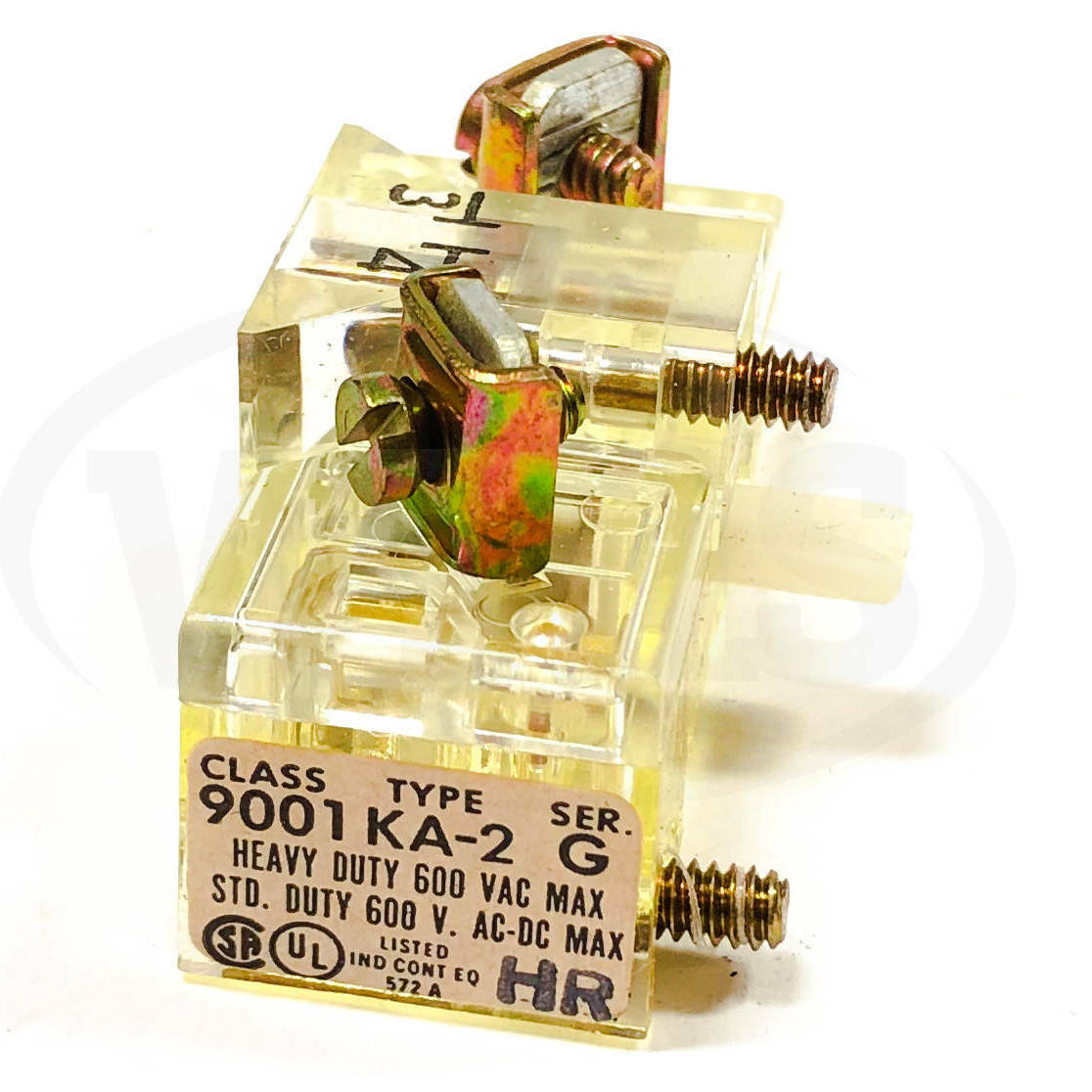

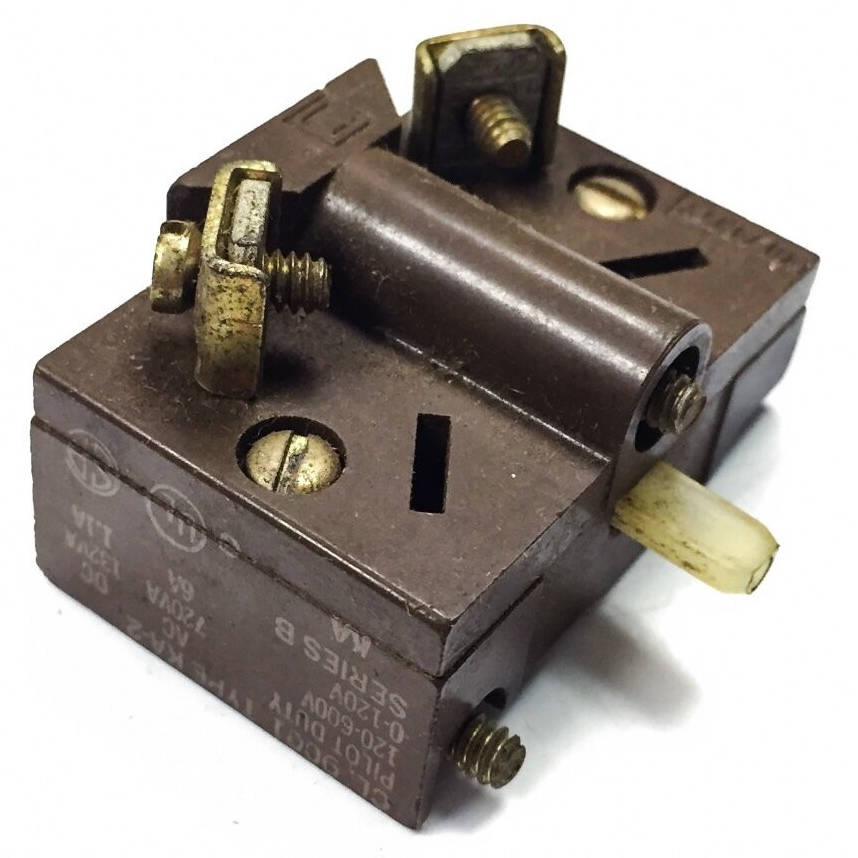

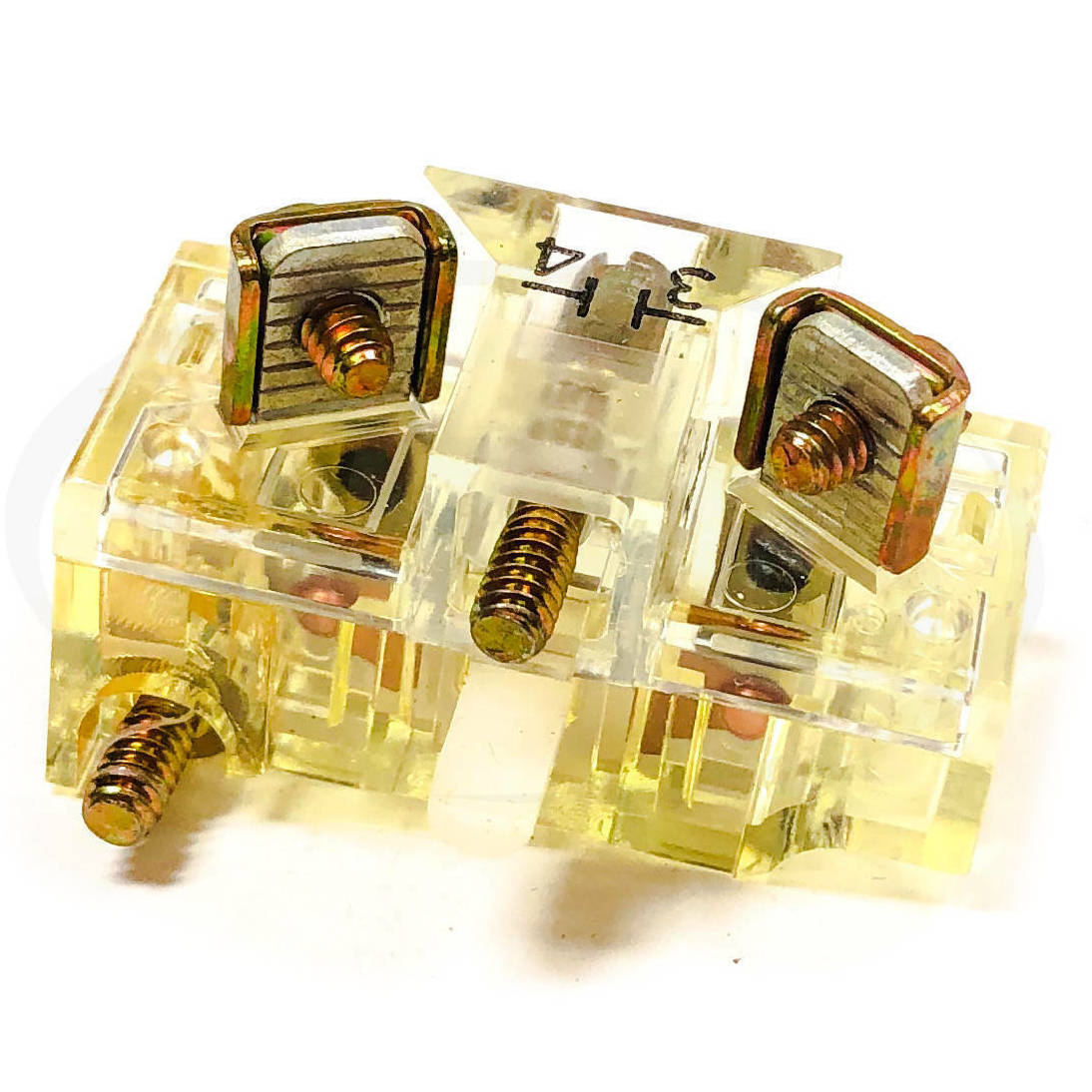

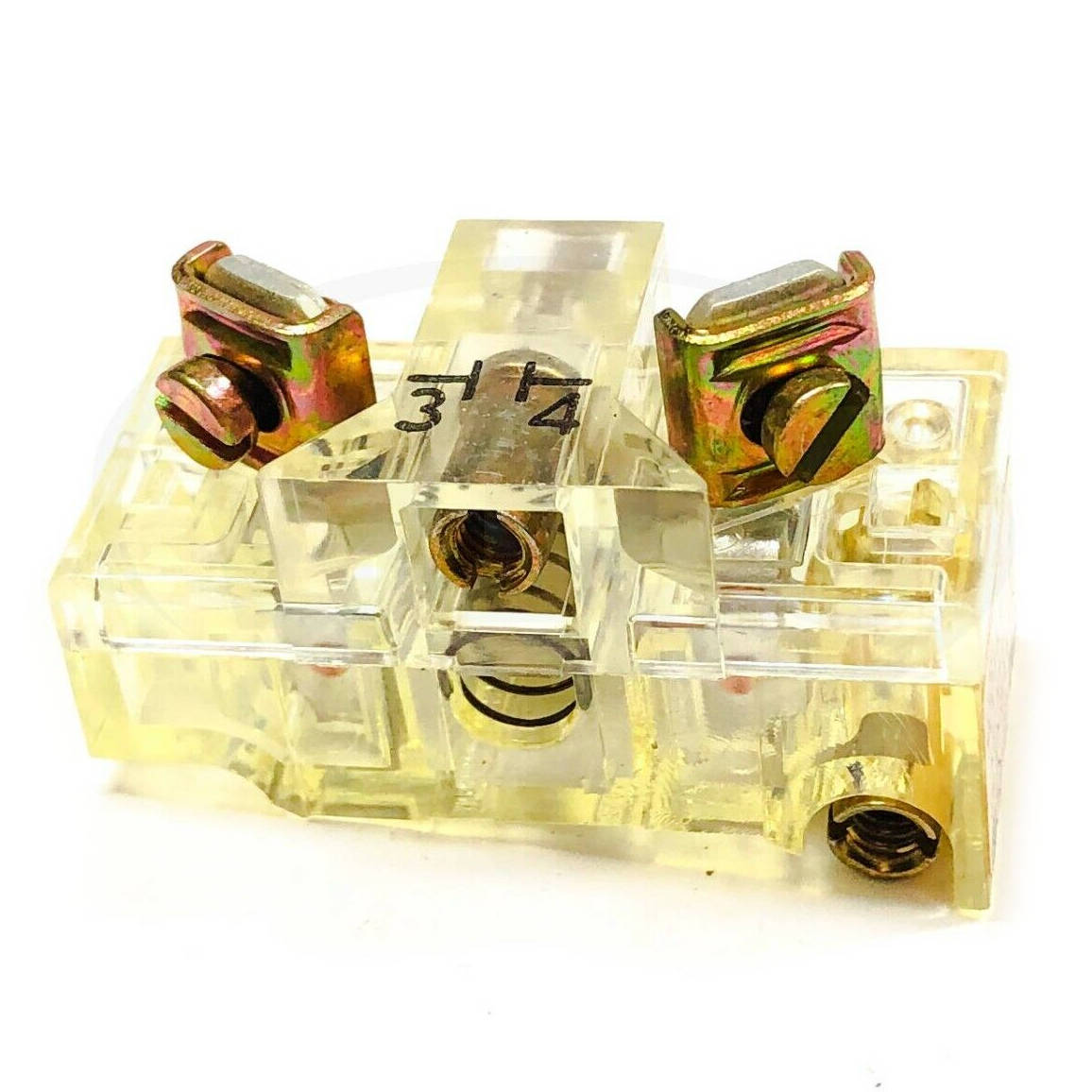

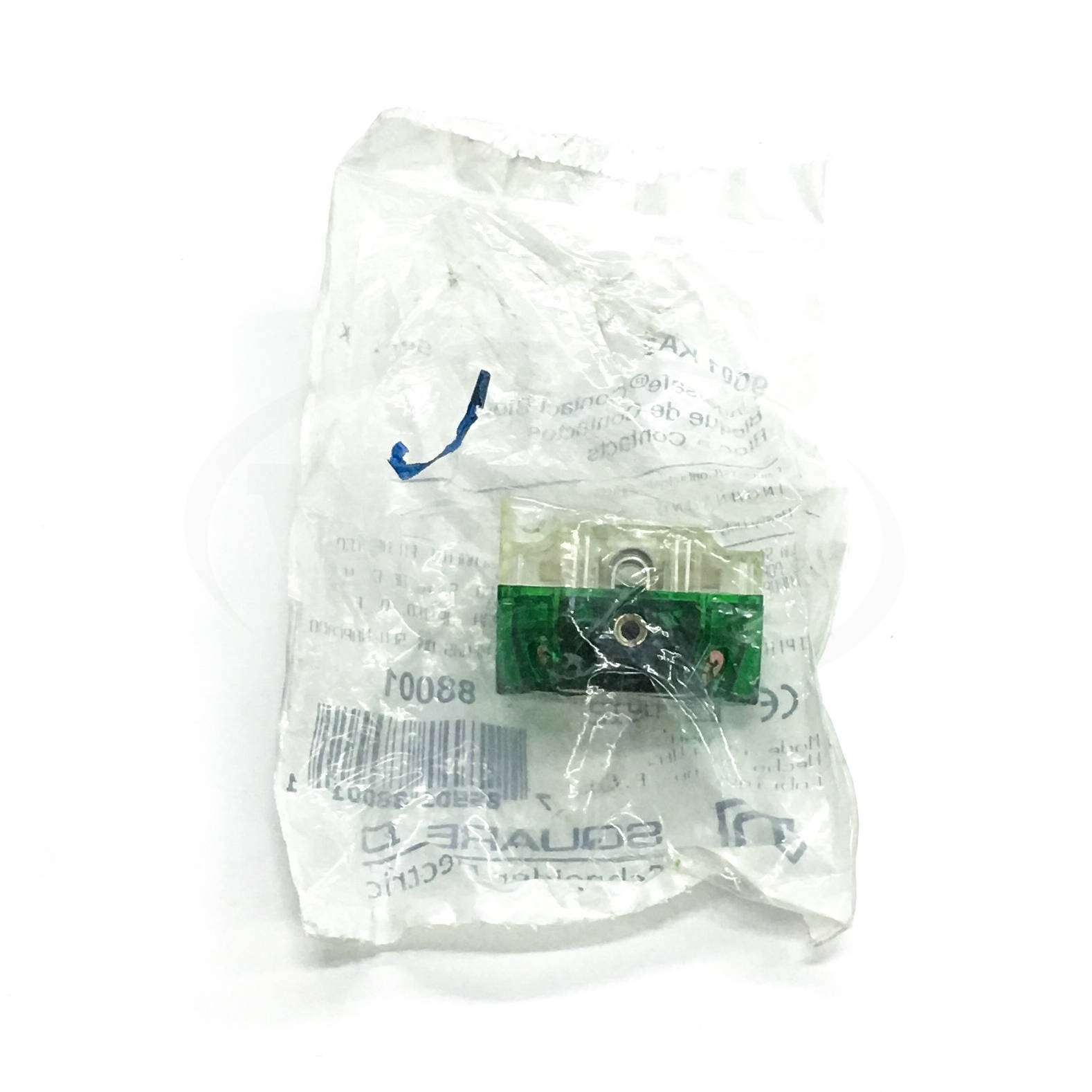

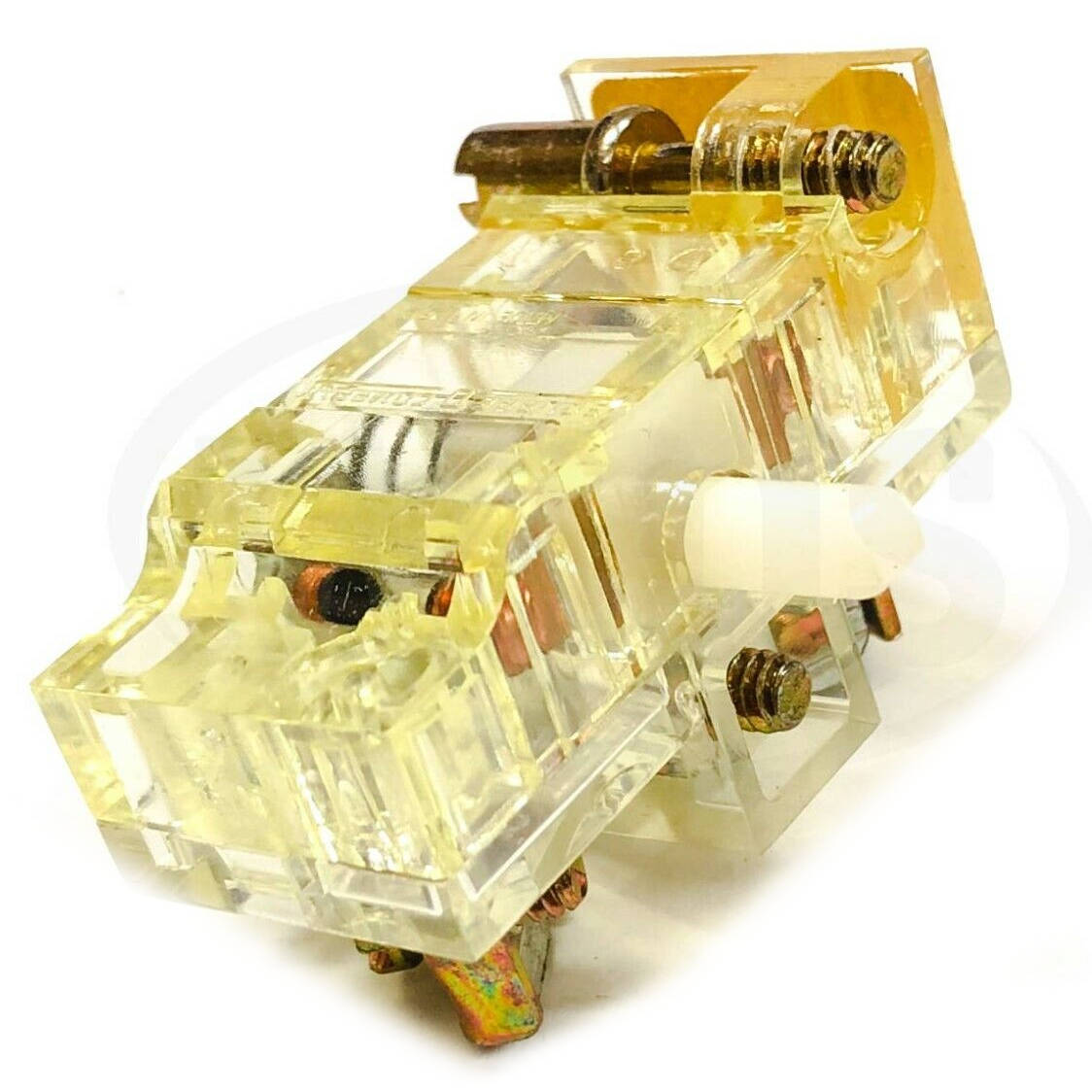

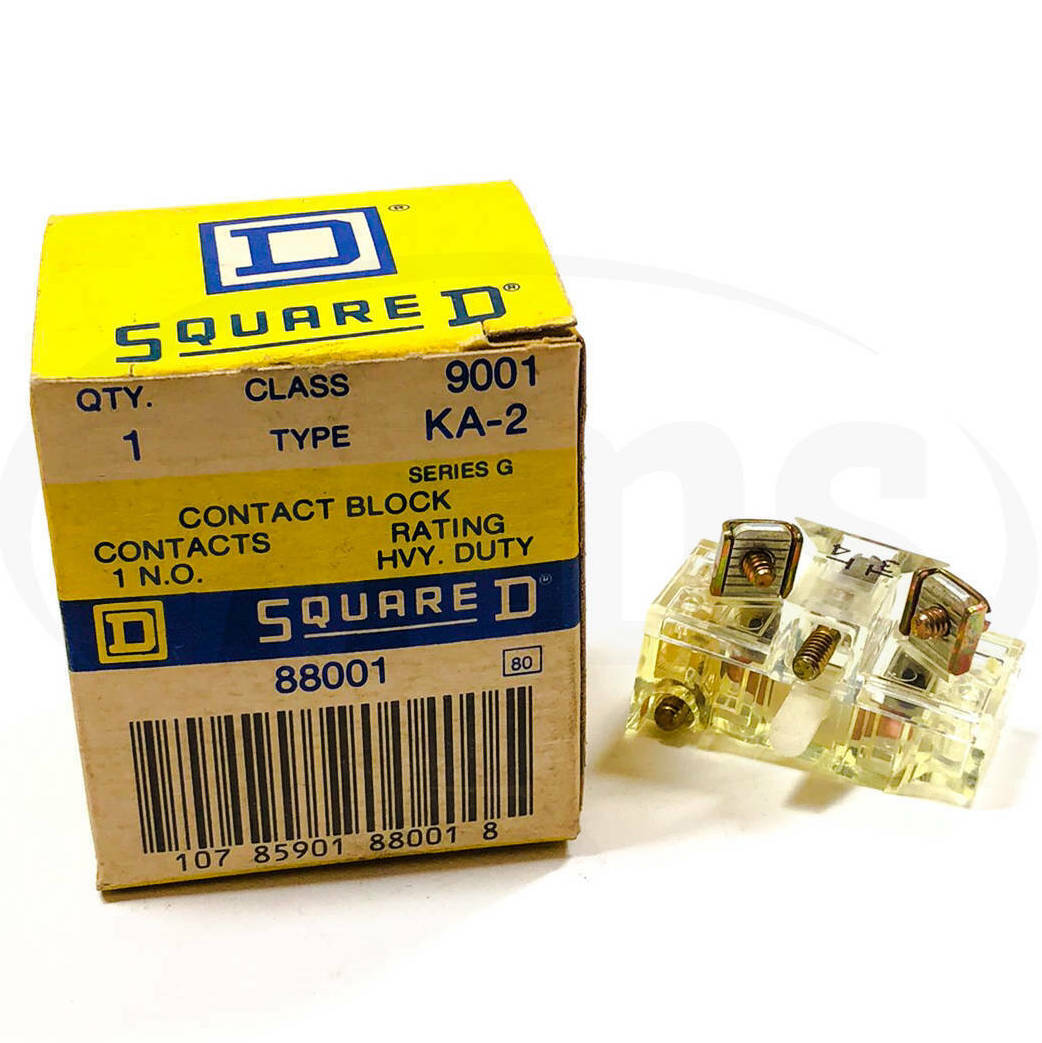

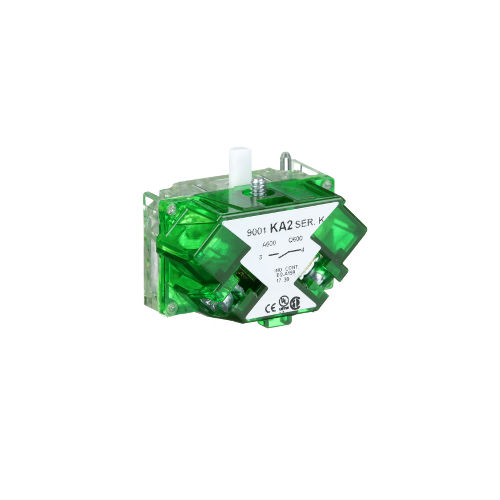

9001KA2 Square D 30mm Fingersafe Contact Block

MFG: Schneider Electric (Square D)
MFG Part Number: 9001KA2

Available Stock: 2
Selected accessories will also be added to cart
$14.97 / Each
Quantity:
New, Surplus Stock
Main
range of product
Harmony 9001K
product or component type
Contact block with protected terminals
device short name
9001K
Complementary
terminals description ISO n°1
(1-2)NC
product weight
0.05 lb(US) (0.023 kg)
contacts type and composition
1 NO
contact operation
Standard
positive opening
Without
connections - terminals
Screw clamp terminals (1 x 0.22...2 x 1.5 mm²) conforming to IEC 60947-1
tightening torque
7.08 lbf.in (0.8 N.m) conforming to IEC 60947-1
shape of screw head
Cross slotted head
contacts material
Silver alloy contacts
short-circuit protection
10 A cartridge fuse conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Ui] rated insulation voltage
250 V (degree of pollution: 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 kV conforming to IEC 60947-1
[Ie] rated operational current
3 A at 240 V AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V DC-13, A600-Q600 conforming to NEMA
[Icm] rated short-circuit making capacity
<= 0.1 kA at 600 V DC-13
<= 12 kA at 600 V AC-15, 7200 VA
<= 15 kA at 480 V AC-15, 7200 VA
<= 30 kA at 240 V AC-15, 7200 VA
<= 60 kA at 120 V AC-15, 7200 VA
<= 0.27 kA at 250 V DC-13, 7200 VA
<= 0.55 kA at 125 V DC-13, 7200 VA
rated breaking capacity
<= 3 kA at 240 V AC-15, 720 VA
<= 6 kA at 120 V AC-15, 720 VA
<= 0.1 kA at 600 V DC-13
<= 0.27 kA at 250 V DC-13
<= 0.55 kA at 125 V DC-13
<= 1.2 kA at 600 V AC-15, 720 VA
<= 1.5 kA at 480 V AC-15, 720 VA
compatibility code
9001K
Environment
protective treatment
TC
ambient air temperature for storage
-40...158 °F (-40...70 °C)
ambient air temperature for operation
-13...158 °F (-25...70 °C)
electrical shock protection class
Class II conforming to IEC 61140
IP degree of protection
IP20 conforming to IEC 60529
standards
UL 508
EN/IEC 60947-5-4
JIS C 852
EN/IEC 60947-1
JIS C 4520
EN/IEC 60947-5-1
CSA C22.2 No 14
product certifications
UL 508
NEMA
vibration resistance
7 gn (f = 2...500 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn conforming to IEC 60068-2-27
Ordering and shipping details
Category
21434 - 9001 KA CONTACT BLOCKS
Discount Schedule
CS1
GTIN
00785901880011
Nbr. of units in pkg.
1
Package weight(Lbs)
5.0000000000000003E-2
Returnability
Y
Country of origin
MX
