/Products/Electric Motors/Single Phase Electric Motors/Marathon Single Phase Electric Motors/Air Compressor/9035 Marathon 2HP Air Compressor Electric Motor, 3600RPM
Click Image to Expand

Product ID: 9035

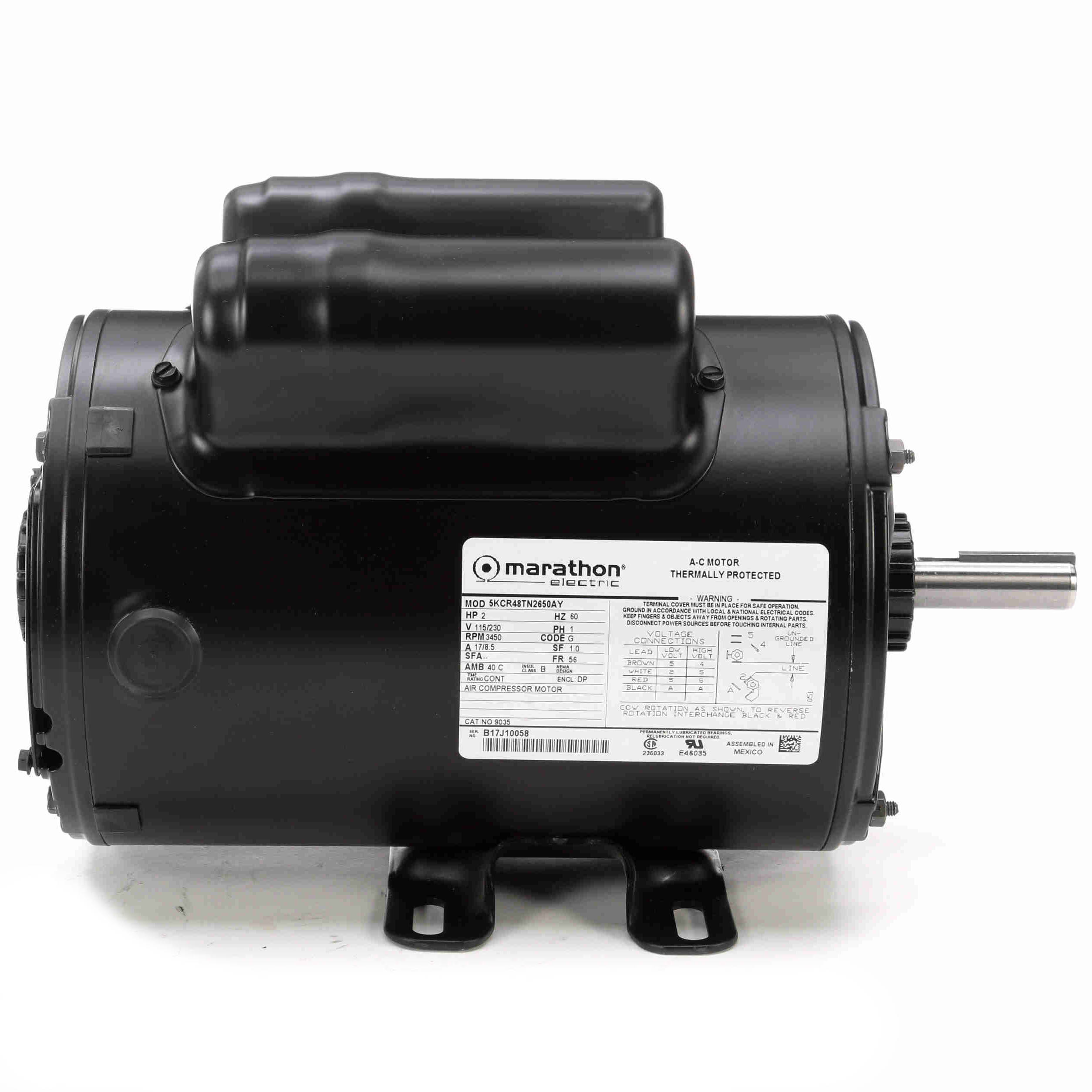

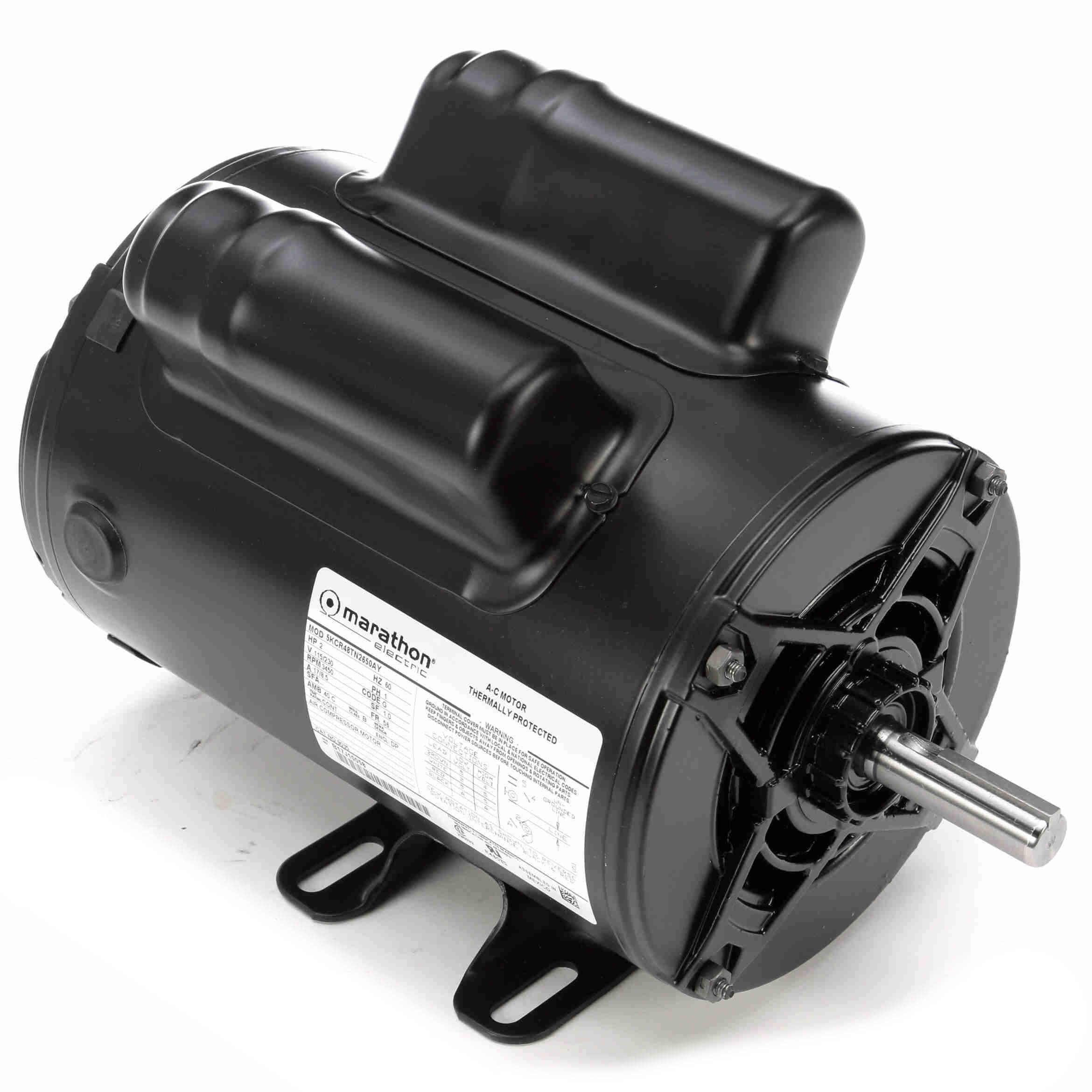

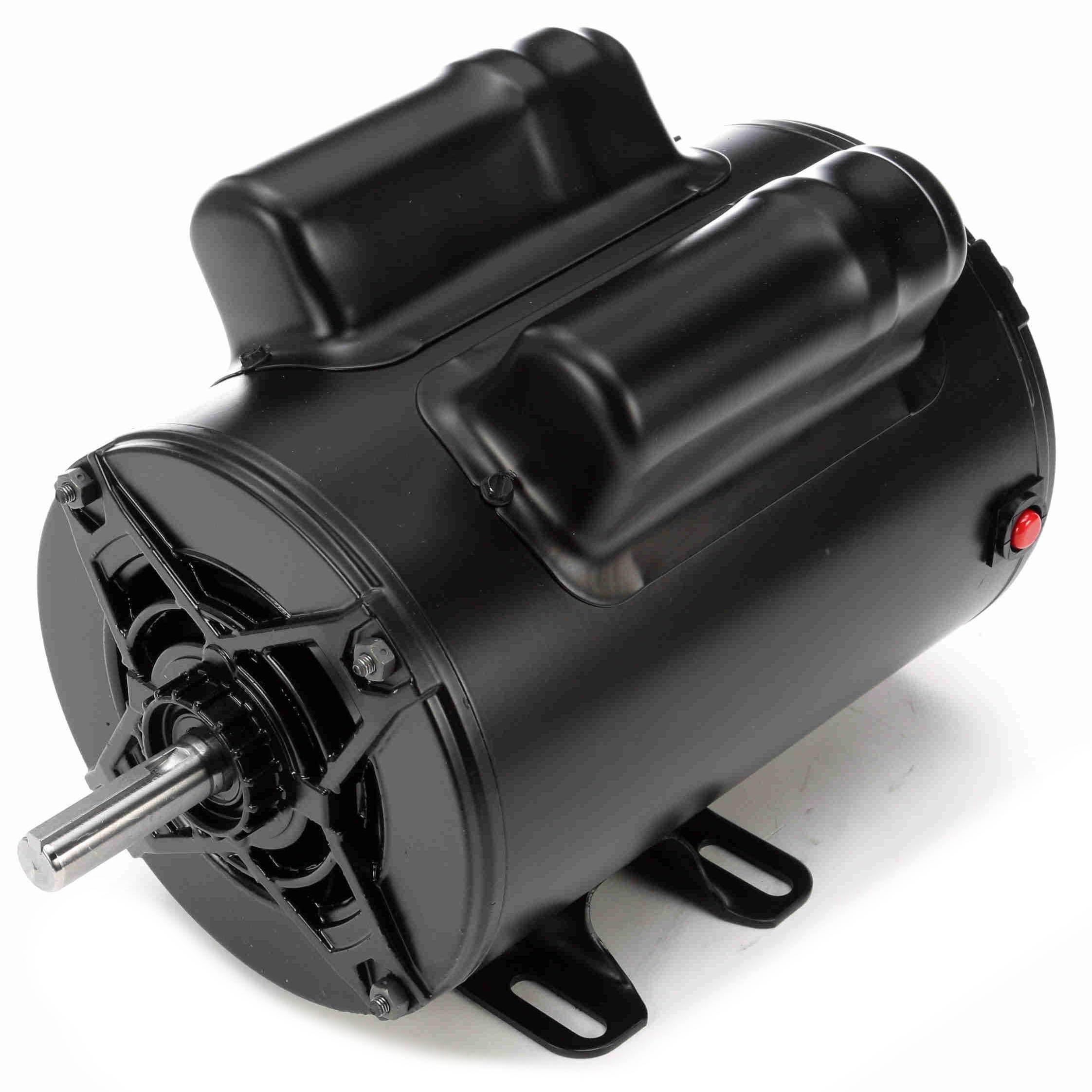

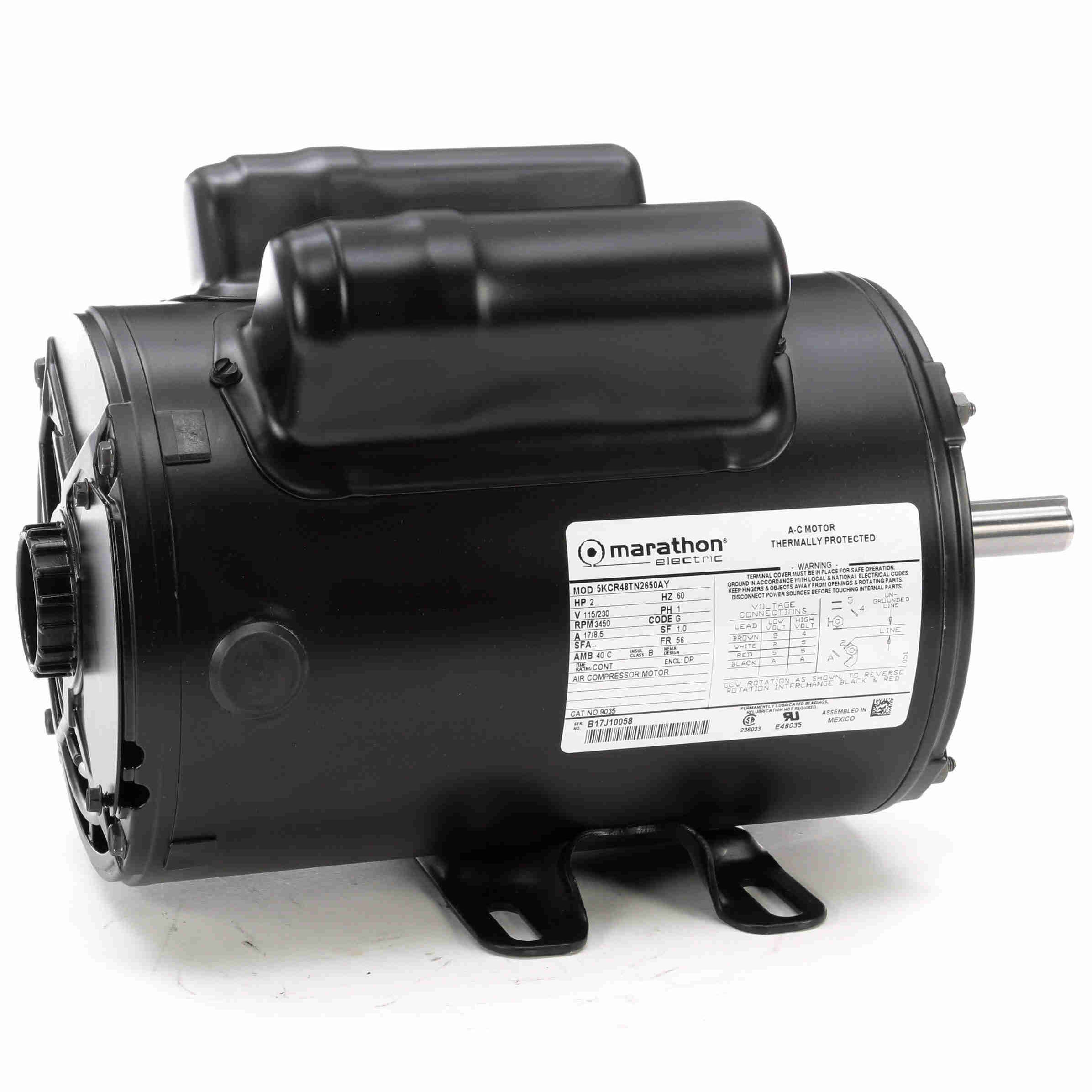

9035 Marathon 2HP Air Compressor Electric Motor, 3600RPM

MFG: Marathon Electric
MFG Part Number: 9035

Selected accessories will also be added to cart
$779.97 / Each
Quantity:
ODP, 56 Frame, 115/230VAC 60Hz Single Phase, 5KCR48TN2650Y, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Capacitor start / capacitor run design for low amps and high efficiency
  • High starting and breakdown torque
  • Heavy gauge steel frame and base
  • Continuous duty at nameplate ratings
  • Connected for CW rotation facing opposite shaft end. Reversible by reconnection of leads
  • Energy saver design

General Specifications

UPC:722856048226Weight:38.00 LB

Nameplate Specifications

Output HP:2 HpOutput KW:1.5 kW
Frequency:60 HzVoltage:115/230 V
Current:15.0,7.5 ASpeed:3450 rpm
Service Factor:1Phase:1
Efficiency:79.1 %Power Factor:0
Duty:ContinuousInsulation Class:B
KVA Code:GFrame:56
Enclosure:Drip ProofThermal Protection:MAN
Ambient Temperature:40 ?CDrive End Bearing Size:6203
Opp Drive End Bearing Size:6203UL:Recognized
CSA:YesCE:N

Technical Specifications

Electrical Type:Capacitor Start Capacitor RunStarting Method:SM
Poles:2Rotation:Clockwise/Counterclockwise
Mounting:Rigid BaseMotor Orientation:ANY
Drive End Bearing:BALLOpp Drive End Bearing:BALL
Frame Material:Rolled SteelOverall Length:12.76 in
Frame Length:8.43 inShaft Diameter:0.63 in
Shaft Extension:1.88 in
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
2HP
Frame
56
