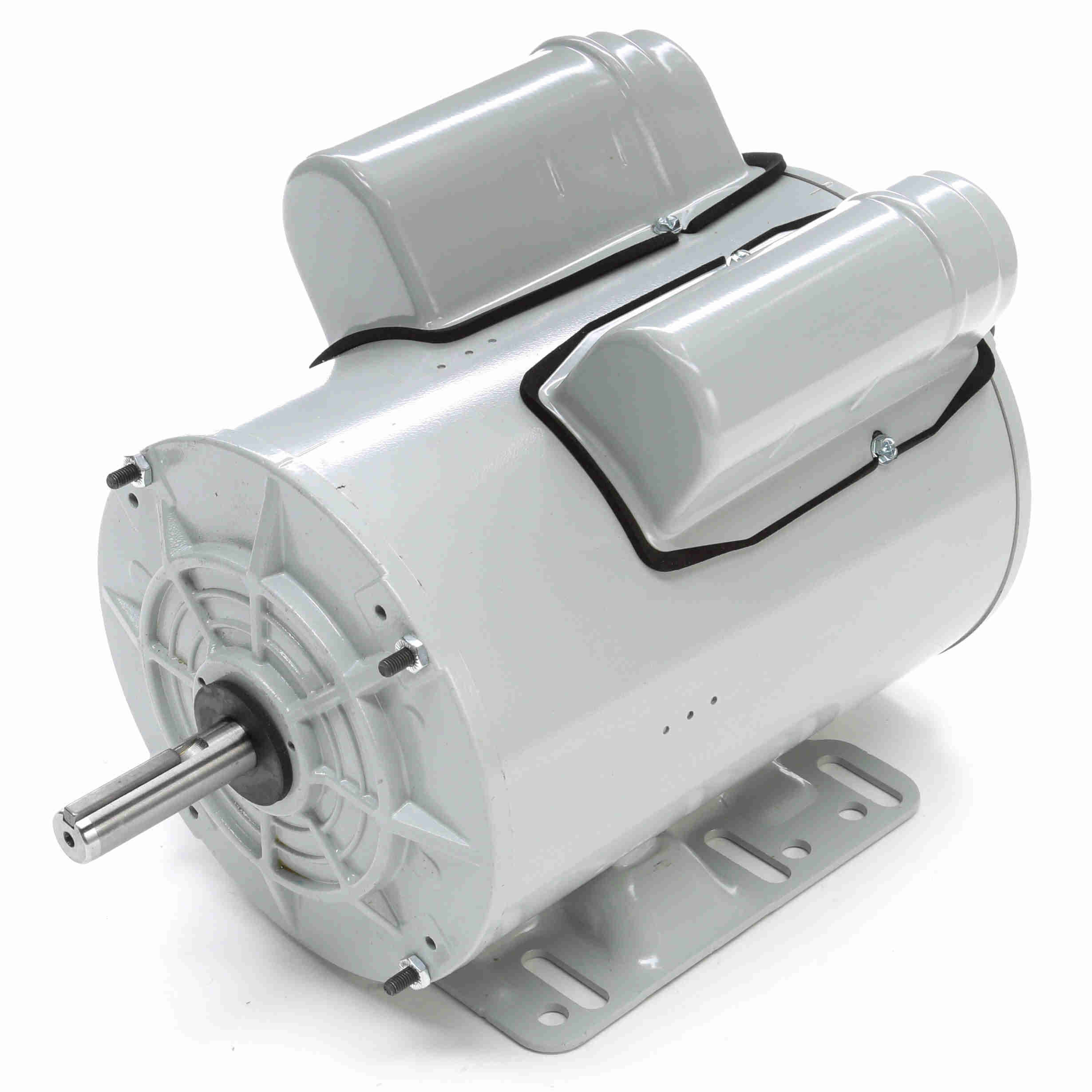

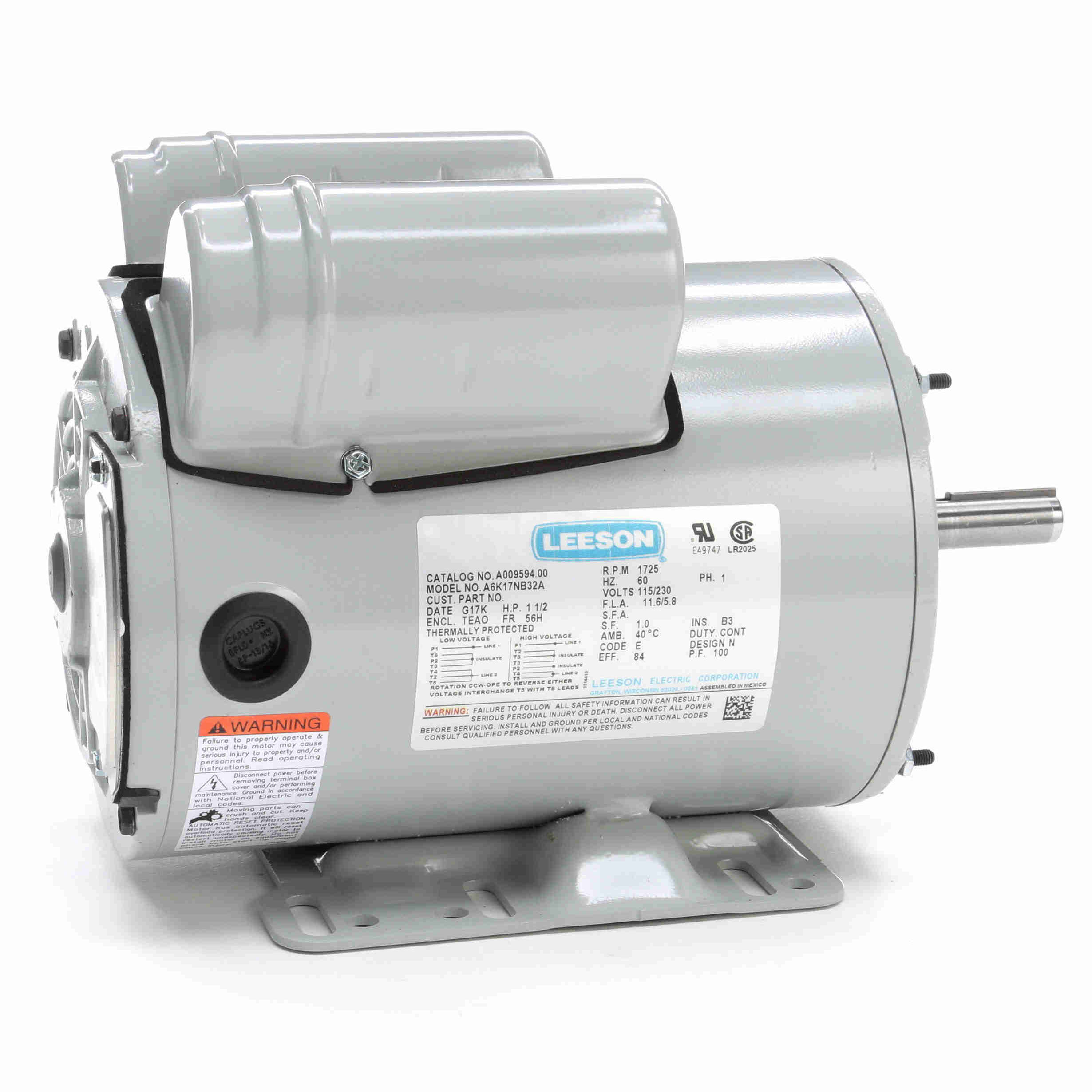

Catalog No A009594.00 Model A6K17NB32A
Product type AC MOTOR Stock Stock

Description ..1.5
HP..1800RPM.56H.TEAO.115/230V.1PH.60HZ.CONT.40C..RIGID......FARM AG........

Information shown is for current motor's design

Engineering Data

Volts 115 Volts 230 Volts
F.L. Amps 11.6 F.L. Amps 5.8 F.L. Amps
S. F Amps S. F Amps S. F Amps
________________________________________
RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS AOM TYPE KN
KW 1.12
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design M Code E
Insul Class B Protection AUT LCK RTR ONLY Therm.Prot. CEJ38CY
Eff 100% 84 Eff 75% PF 100
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type Inverter Type Speed Range NONE
________________________________________
Motor Wt. 36 LB Enclosure TEAO Lubrication STANDARD
Nameplate 92005-6 Mounting RIGID Rotation SELECTIVE CCW
Assembly Shaft Dia. Ext. Diag. A-102006-85LE
Cust Part No Outline A-107336LE-806 Ext. Diag2
Packaging F Winding ZB4187
Carton Label GROUP: 3
Iris Paint GRAY - LIGHT Test Card
