/Blowers/A155 Fasco 1/30HP Electric Blower Motor, 3000RPM
Click Image to Expand

Product ID: A155

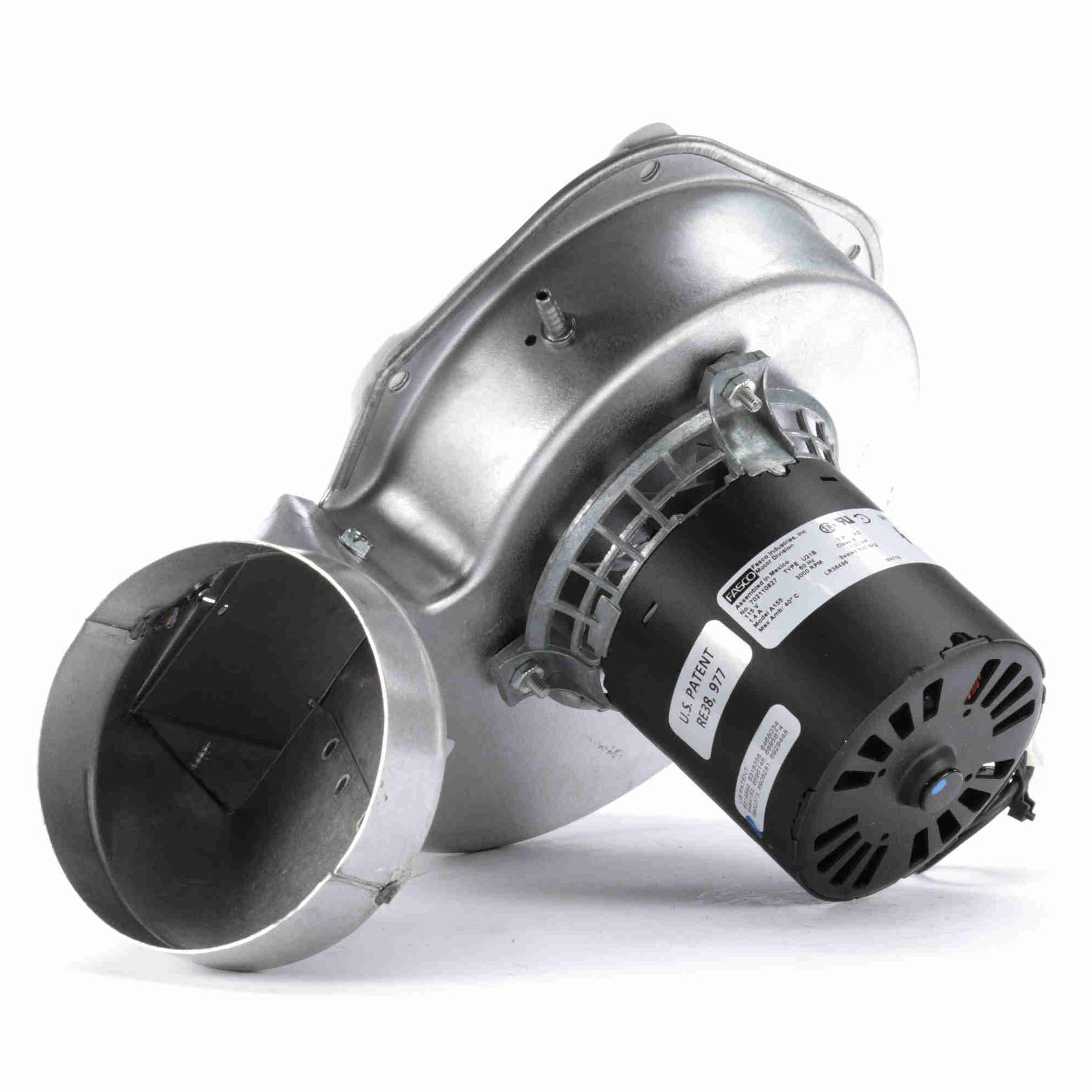

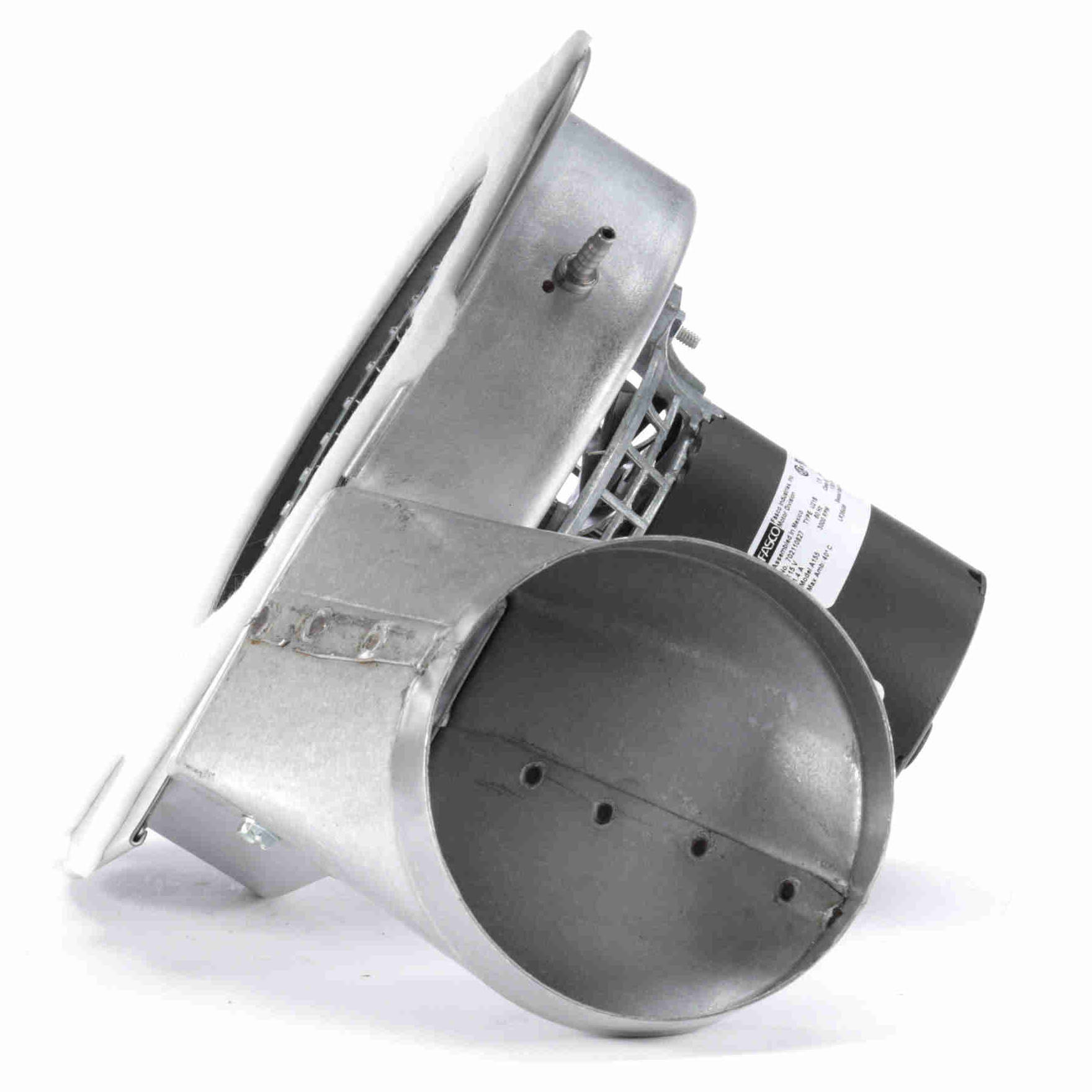

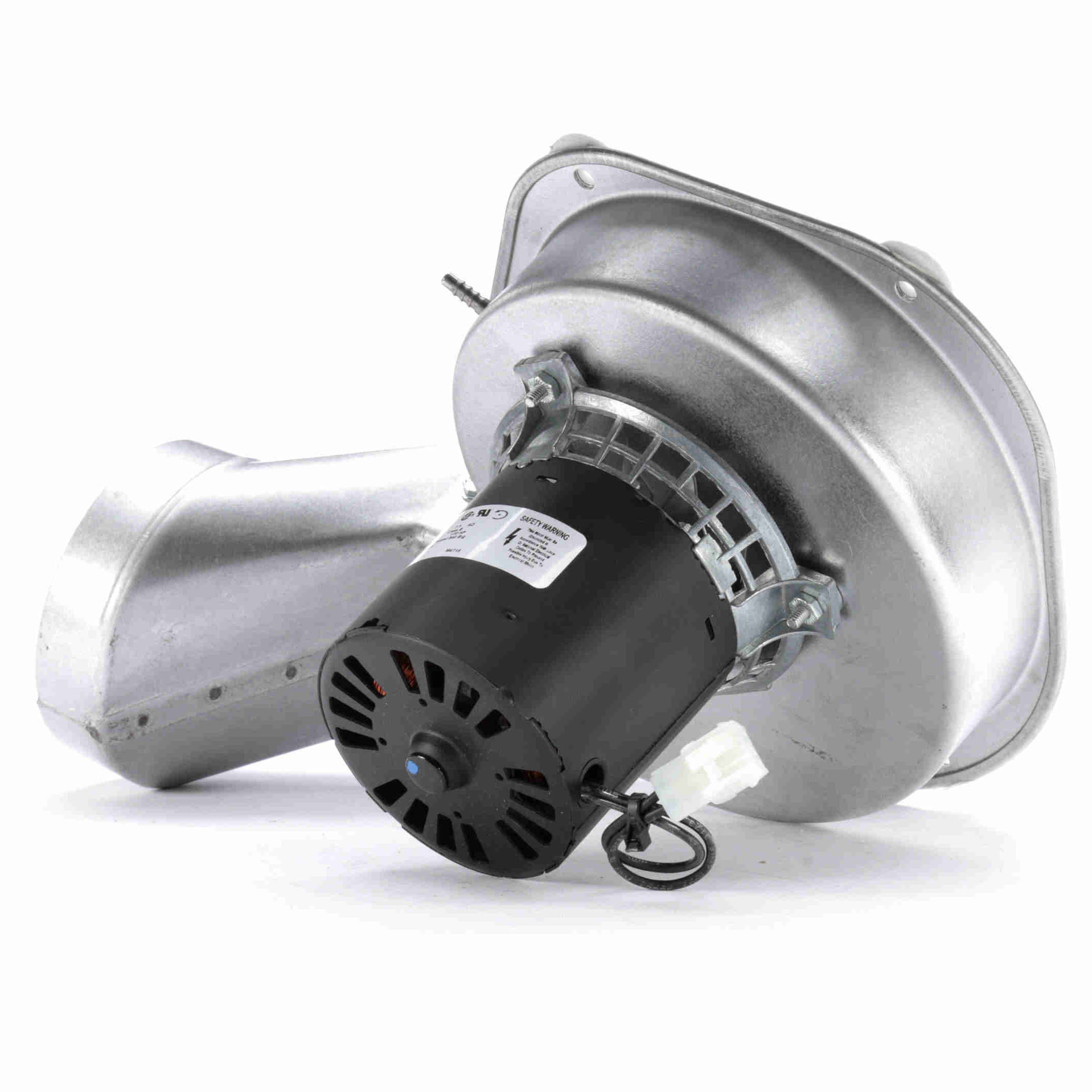

A155 Fasco 1/30HP Electric Blower Motor, 3000RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A155

Selected accessories will also be added to cart
$230.97 / Each
Quantity:
Open, 115VAC Single Phase 60Hz, CCW, Ball Bearing, Shaded Pole

Features

Features
  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 6" Leads with Socket Terminal

General Specifications

General Specifications
Model : Catalog No : A155
Part Description : 702110827.BLOWER...1 SPD. Category : Draft Inducer
Stock : Yes

Nameplate Specifications

Nameplate Specifications
Voltage : 115 V Motor Type : Shaded Pole
Overload Protector : Thermally Speed : 3000 RPM
Current : 1.4 A Number of Speeds : 1
Frequency : 60 Hz Phase : 1
Ambient Temperature : 40 °C UL : Yes
Insulation Class : B CSA : Yes

Technical Specifications

Technical Specifications
Blower Outlet Shape : Round Motor Enclosure : Open
Blower Outlet Flange : No Bearing Type : Ball
UPC : 815585026556 Weight : 6.00 LB

Speed & Load Characteristics
