/Blowers/A204 Fasco Round Outlet Draft Inducer Blower Electric Motor, 3400RPM
Click Image to Expand

Product ID: A204

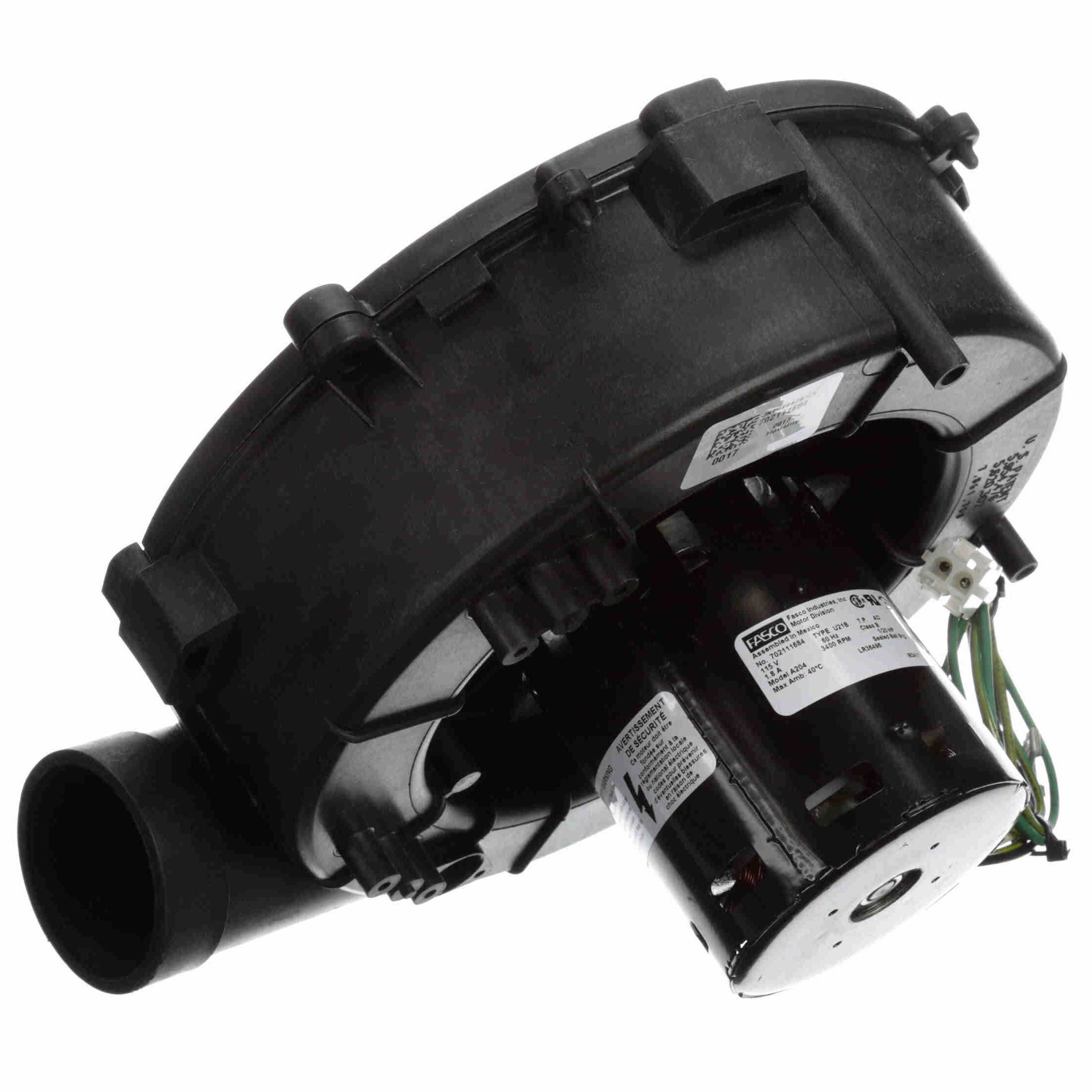

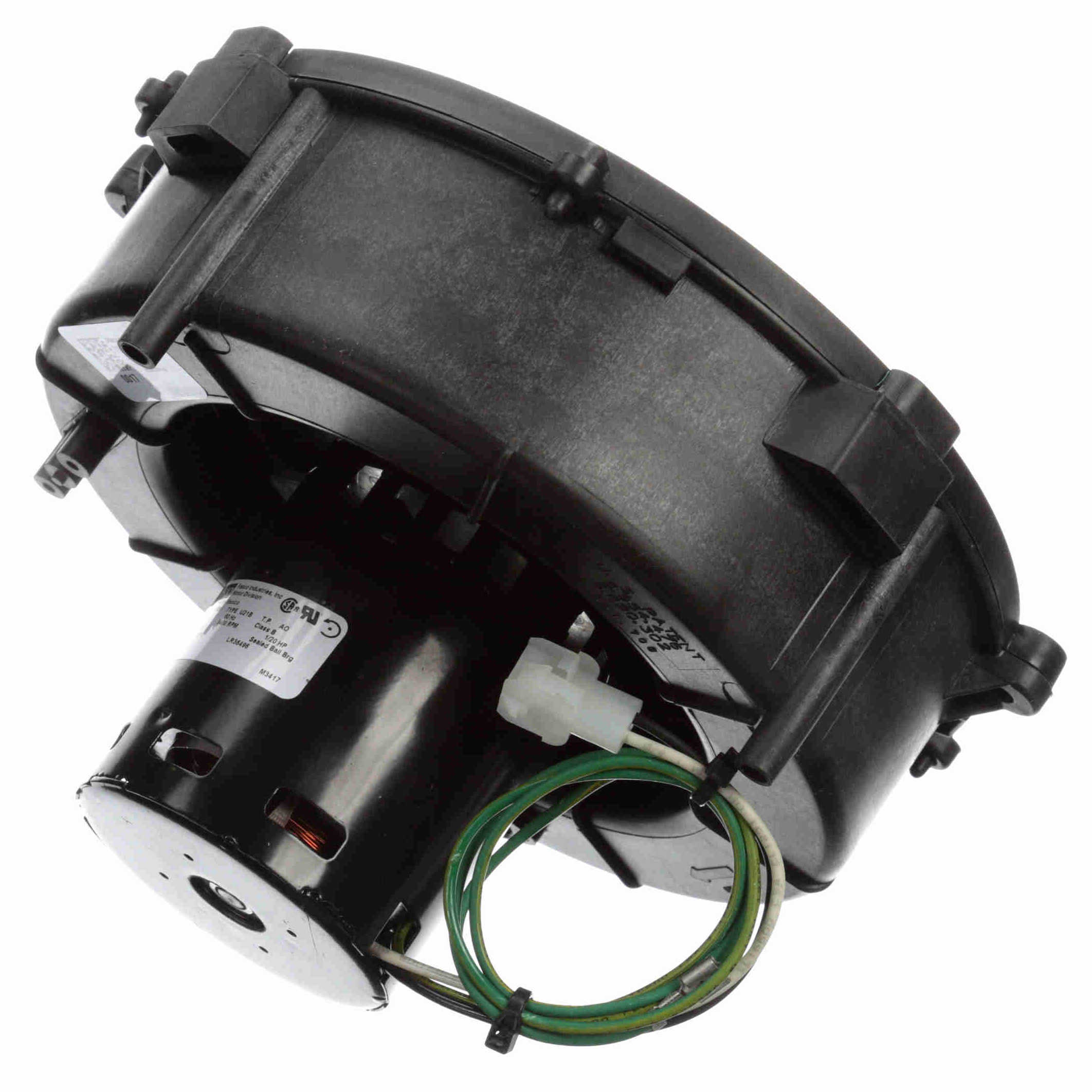

A204 Fasco Round Outlet Draft Inducer Blower Electric Motor, 3400RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: A204

Selected accessories will also be added to cart
$240.35 / Each
Quantity:
115VAC 60Hz Single Phase

Features

  • OEM Direct Replacement - Draft Inducer Blower
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 7" Leads with Socket Terminals

General Specifications

UPC: 815585025320 Weight: 7.00 LB
Packaged Length: 11 IN Packaged Width: 11 IN
Packaged Height: 10 IN

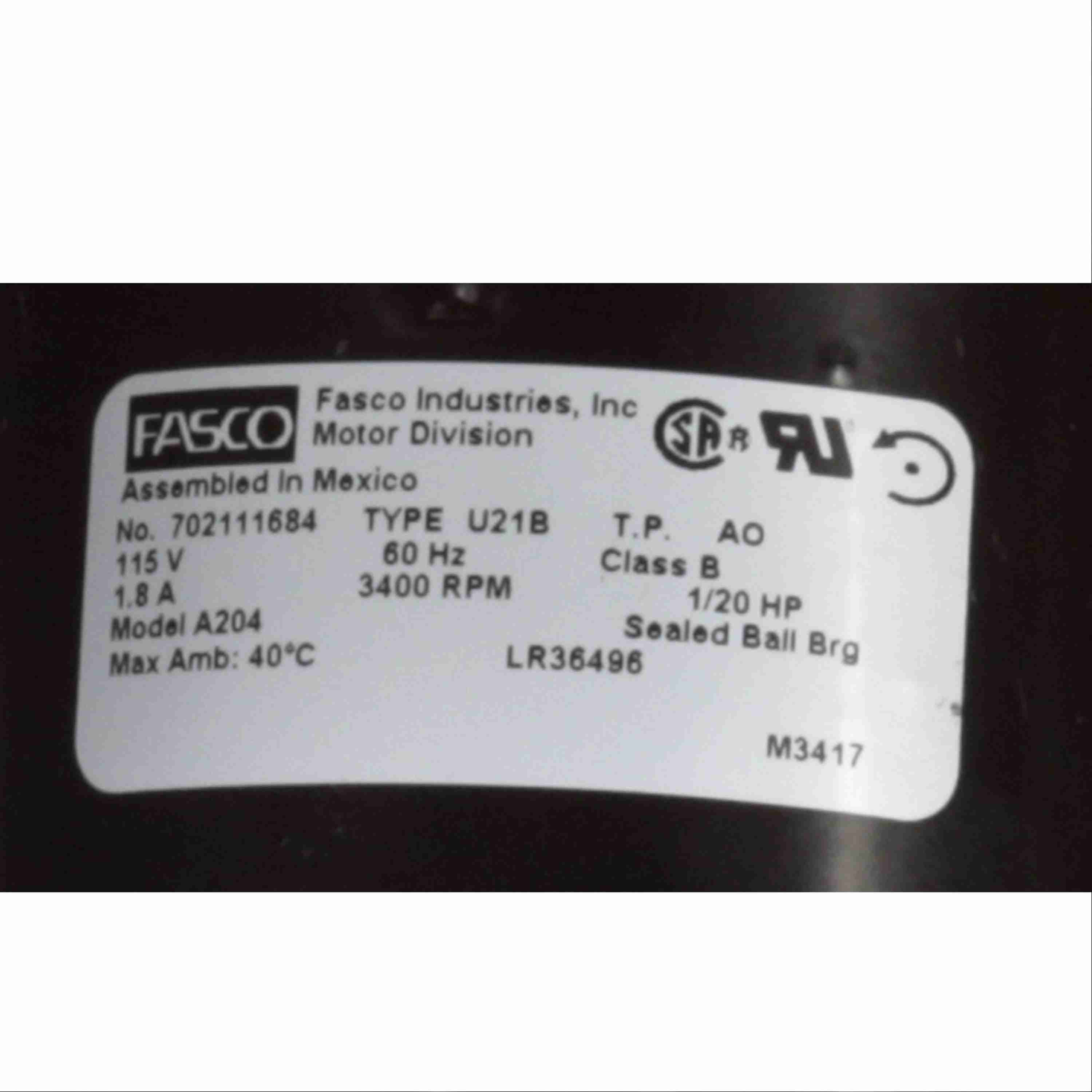

Nameplate Specifications

Voltage: 115 V Motor Type: Shaded Pole
Thermal Protection: Thermally Speed: 3400 rpm
Current: 1.8 A Number of Speeds: 1
Frequency: 60 Hz Phase: 1
Ambient Temperature: 40 °C UL: Yes
Insulation Class: B CSA: Yes

Technical Specifications

Blower Outlet Shape: Round Motor Enclosure: Open Fan Cooled
Blower Outlet Flange: No Bearing Type: Ball
Type
Electric Motor
Input Phase
Single Phase
Speed
3400RPM
