Mersen, formerly Ferraz Shawmut
UL Class RK1 Fuses, A6D Series

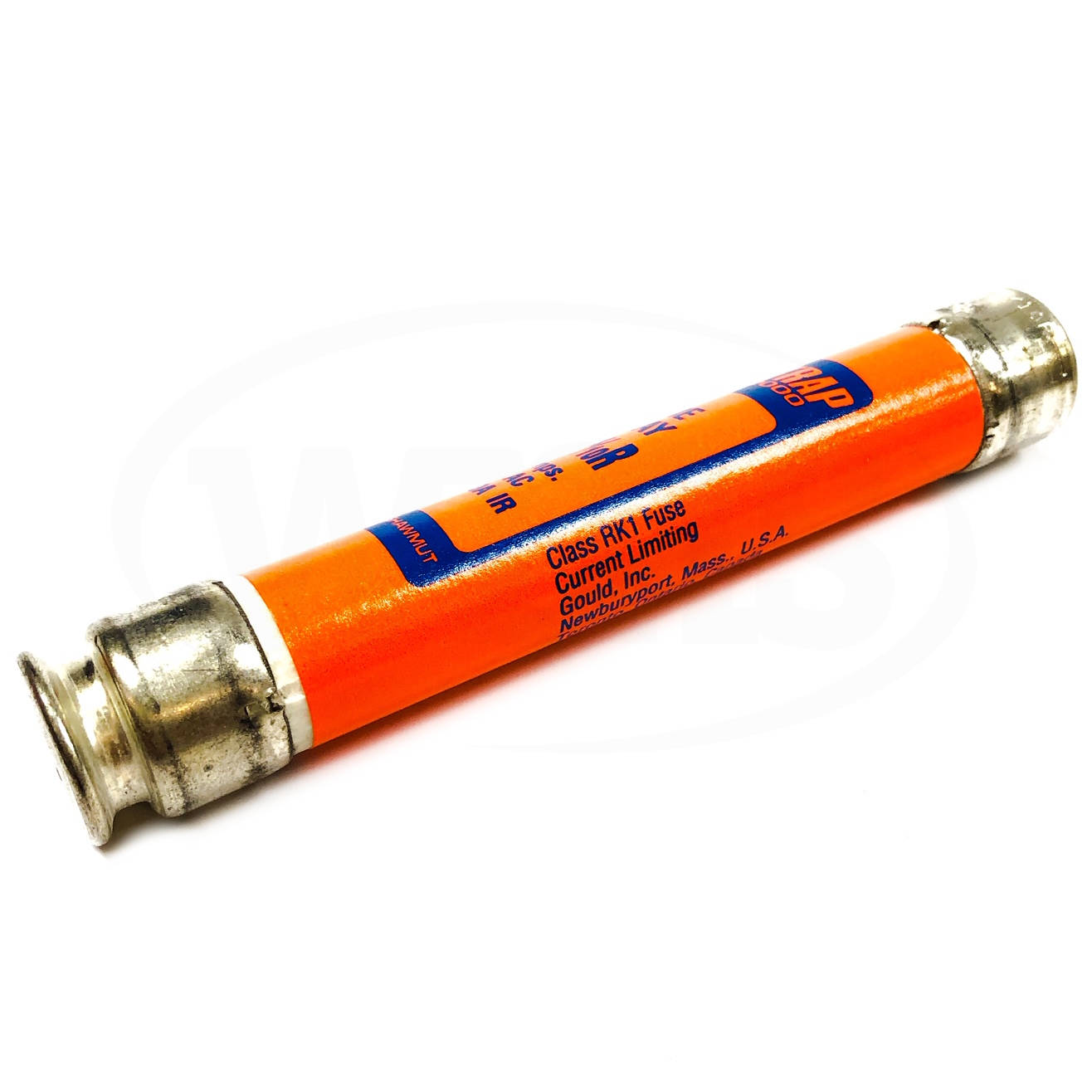

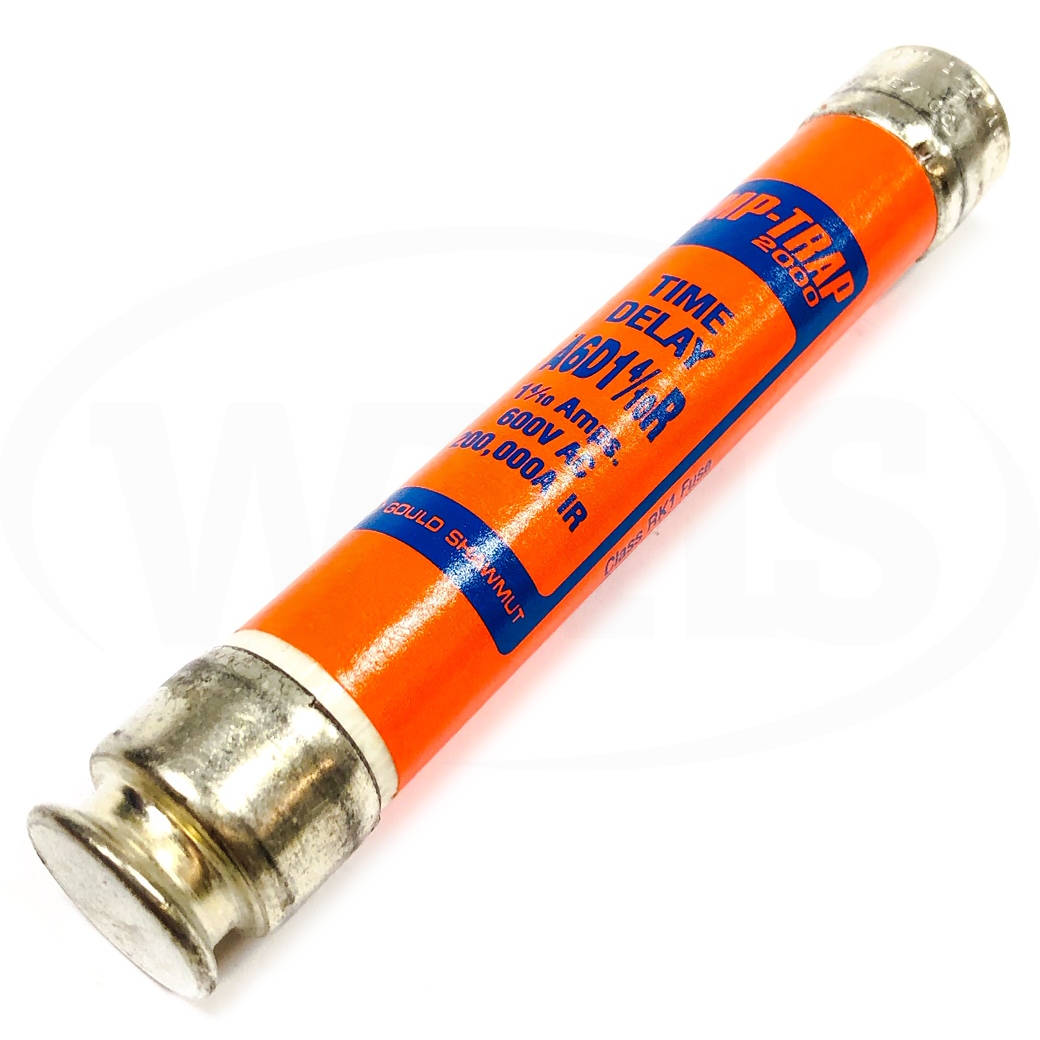

Item# A6D1.400R - Fuse, 600V 1-4/10A RK1 TD USE, L223087

A6D Series Information:
•.1~600 Amps
•600 Volts
•Fiberglass Body
•Cartridge or Single Slotted
•UL, CSA Approvals

Ferraz Shawmut A6D series fuses provide a visual open fuse indicator. With advanced material technology added A6D fuses provide IEC Type "2" (No Damage) protection to main, feeder, and branch circuits for all types of loads. Typical applications for the A6D series include motors, safety switches, transformers, disconnects, and control panels.
•Metal-embossed Date and Catalog Number
•High Visibility Orange Label

Specifications:
Item Number: A6D1.400R
UPC: 0782001991616
Brand: Mersen, formerly Ferraz Shawmut
Item Category:Fuses
Subcategory: UL Class RK1
Series: A6D
Amps: 1.4
Volts AC: 600
Volts DC: 600
Characteristic: Time Delay
Package Type: Cartridge
Interrupt Rating: 200KA @ 600V
