/Products/Pumps/Ashland Pump/Grinder Pumps/AGPR200W2-35 Ashland 2HP Grinder Pump, 230VAC Single Phase
Click Image to Expand

Product ID: AGPR200W2-35

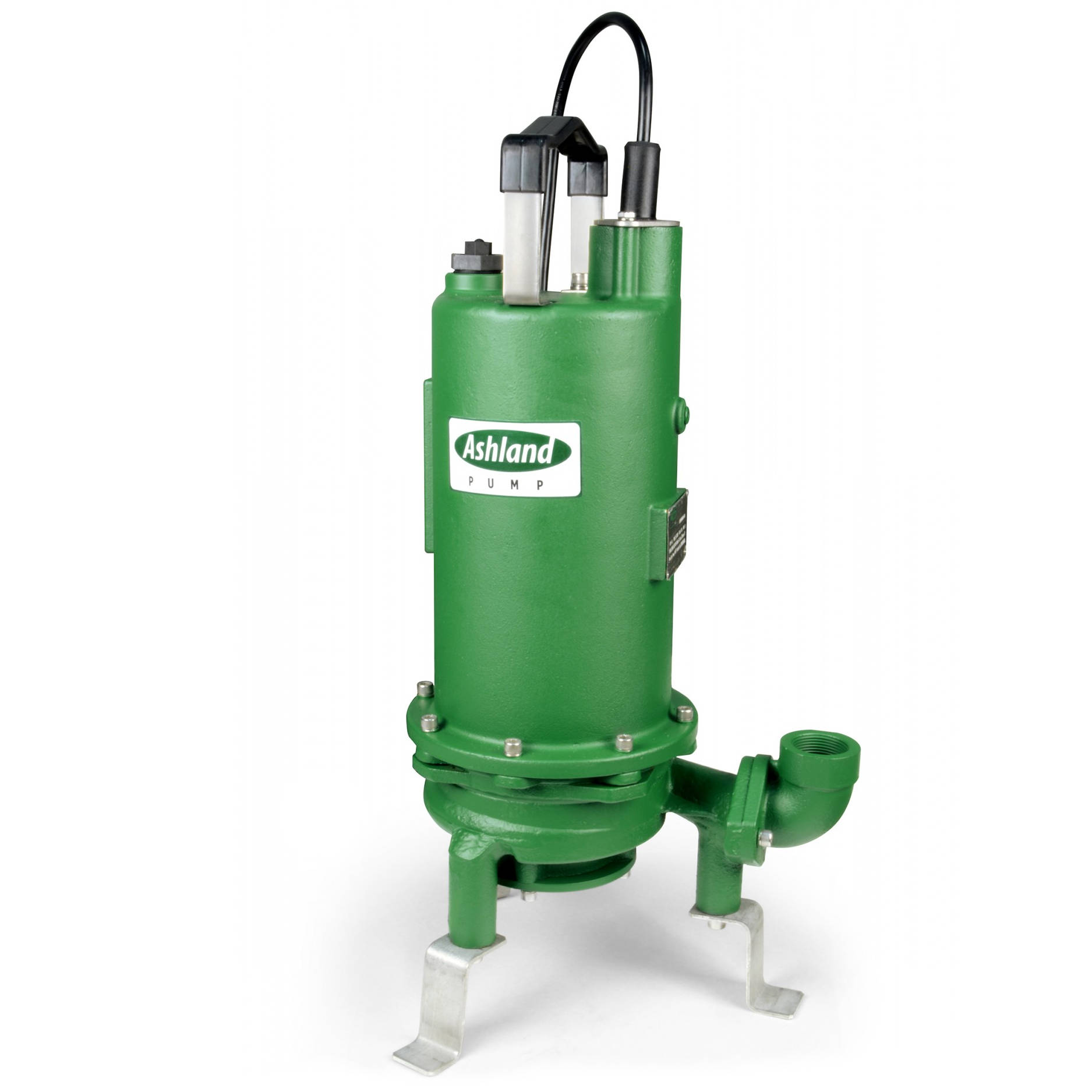

AGPR200W2-35 Ashland 2HP Grinder Pump, 230VAC Single Phase

MFG: Ashland Pump
MFG Part Number: AGPR200W2-35

Selected accessories will also be added to cart
$2,516.85 / Each
Quantity:
Integral Switch, Cast Iron Construction, 35' Cord, 3450RPM, Noryl Impeller

Features

  • Heavy duty cast iron construction
  • Single Carbon/Ceramic Buna-N Seal
  • 10 vane, open Noryl impeller
  • Quick change power cords
  • Quick change Integrated Float Switch Options
  • Single row deep groove radial ball bearings
  • 440C SS Hybrid cutting system
  • Vertical or horizontal discharge

Specifications

BrandAshland Pump
ModelAGPR200W2-35
HP3/4HP
Voltage230VAC 60Hz Single Phase
RPM3450 RPM
Full Load Amps15 Amps
NEMA Start CodeG
Cord TypeSJTOW
Cord Power Size14 AWG/3C
Cord O.D.0.36-0.37"
Solid State RelaySAMUSCO ESC225P
Start CapacitorMars 11068
Run CapacitorMars 12248
Switch TypeIntegral
Discharge Size1-1/4" NPT + Flanged Horizontal with Vertical Adapter
Impeller Type10-Vane
Noryl
Cable Length35'
Solids CompositionDomestic Wastewater with Fibrous Solids
Maximum Liquid Temperature140?F - Intermittent
104?F - Continuous
Acceptable pH Range6 - 8
Winding Insulation145?C
Insulation ClassH
Sensor Cord Type14AWG/3C (Single Phase)
Motor HousingCast Iron
CasingCast Iron
ImpellerNoryl
Motor ShaftStainless Steel 416
HardwareSS
O-RingsBUNA-N
Mechanical SealCarbon Ceramic
Upper Bearing6203
Lower Bearing6205
Cutters440 Stainless Steel ? Case Hardened 58-60 Rockwell
Motor TypeCSCR (Single Phase)
Voltage Tolerance+/-10%
Service Factor1.42

Links

Type
Grinder Pump
Horsepower
2HP
Input Voltage
230VAC
Input Phase
Single Phase
Speed
3450RPM
