/Products/Pulleys & Sheaves/AK Single Groove/AK1710 1.75" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK1710

AK1710 1.75" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric
MFG Part Number: AK17X5/8

Selected accessories will also be added to cart
$6.42 / Each
Quantity:

Available Stock: 2

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK1710
AK17X5/8
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 1.75"
Pulley Diameter “A” 1.50"
Pulley Diameter “3L” 1.16"

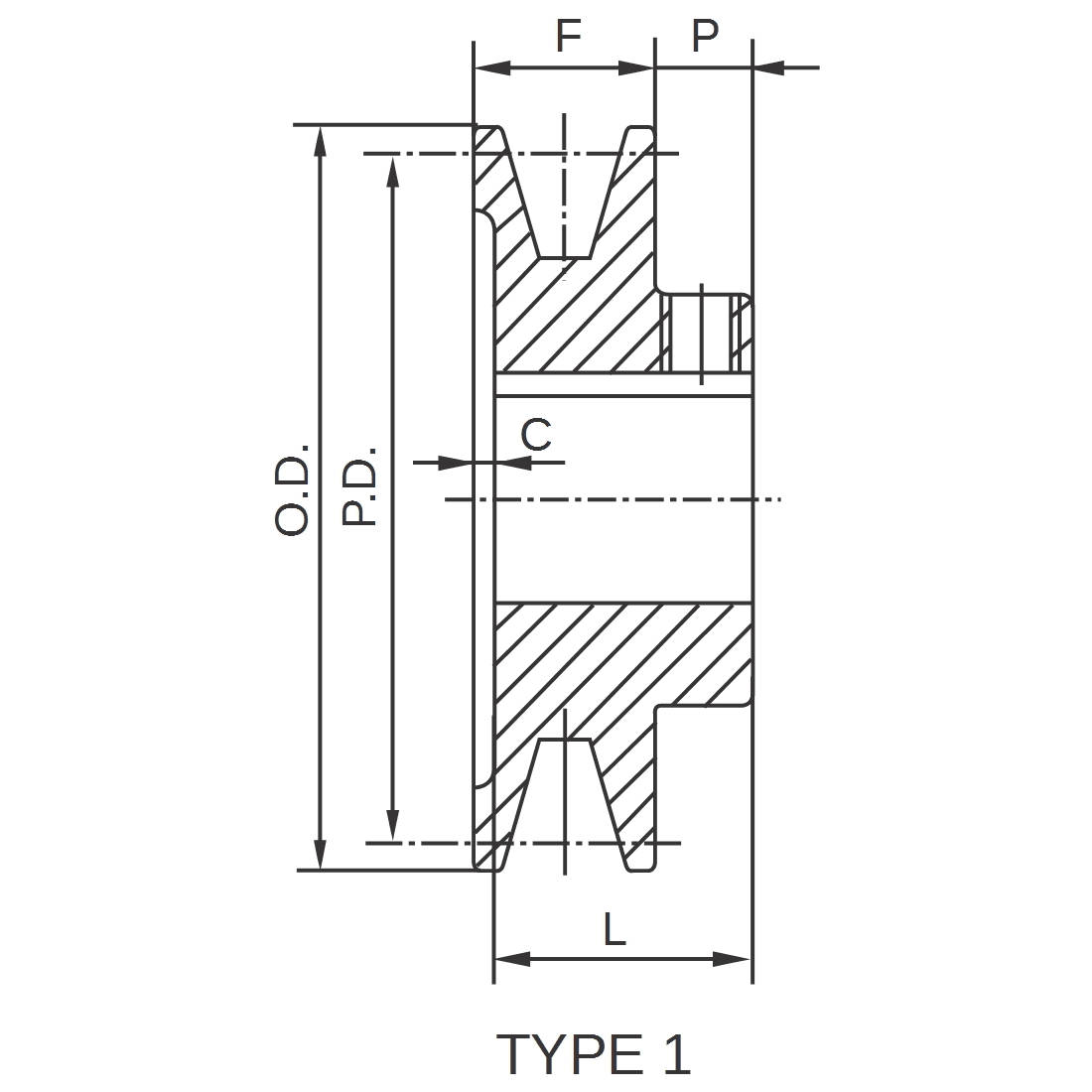

Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.2 lbs

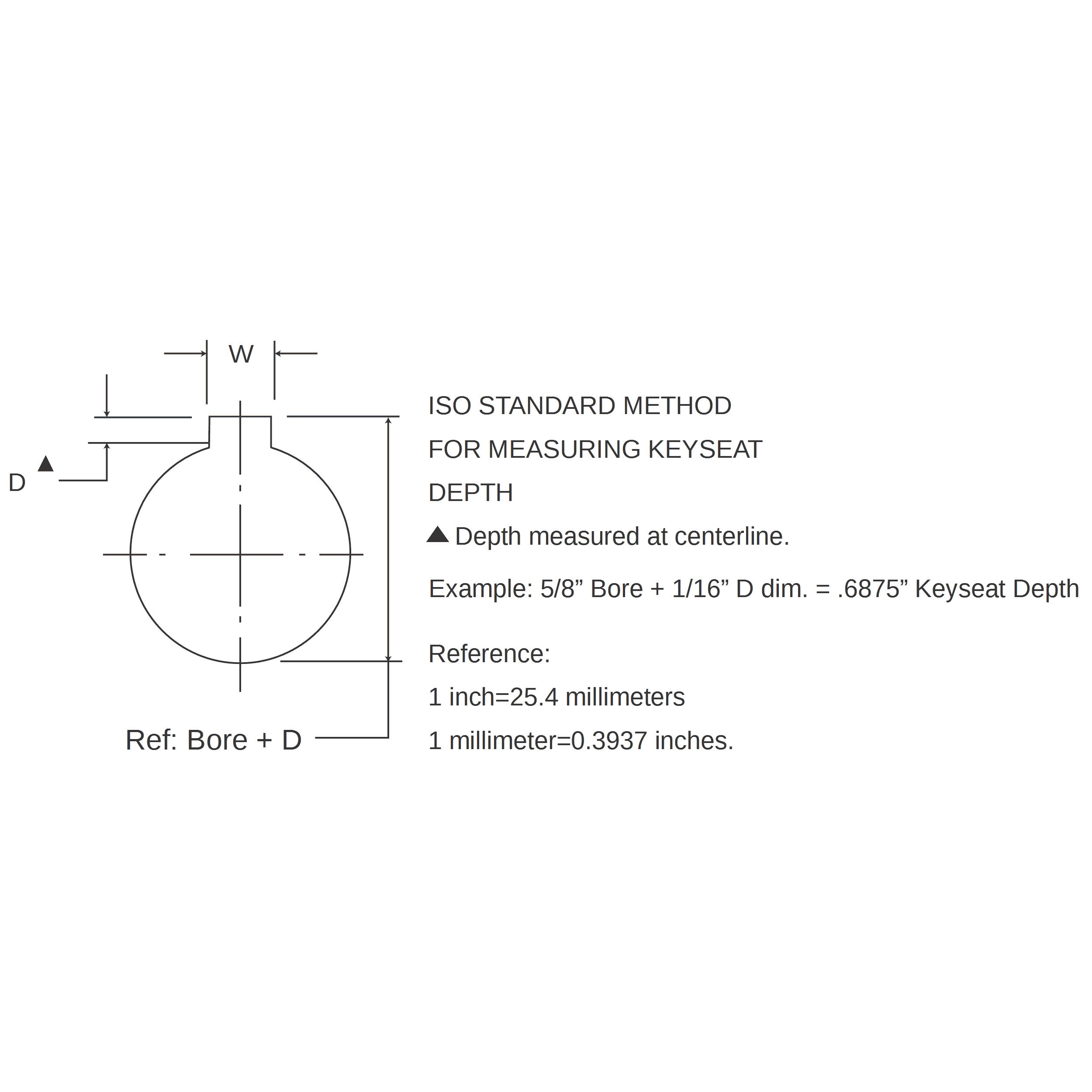

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
UPC 624832030013
Country of Origin China
