/Products/Pulleys & Sheaves/AK Single Groove/AK2010 AMEC 2" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2010

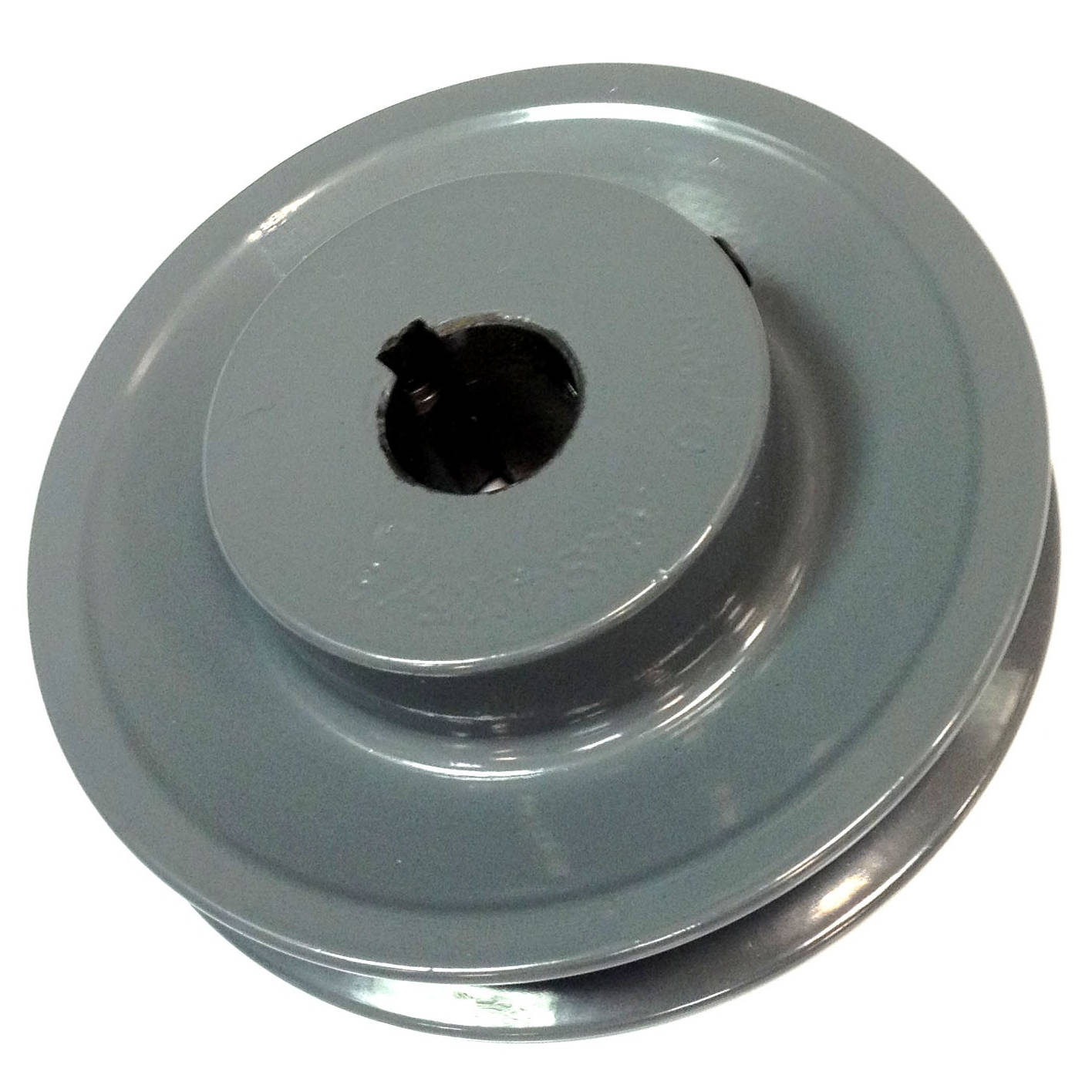

AK2010 AMEC 2" X 5/8" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK2010

Available Stock: 3
Selected accessories will also be added to cart
$8.18 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand AMEC
Various
Part Number AK2010
AK20X5/8
Bore 5/8"

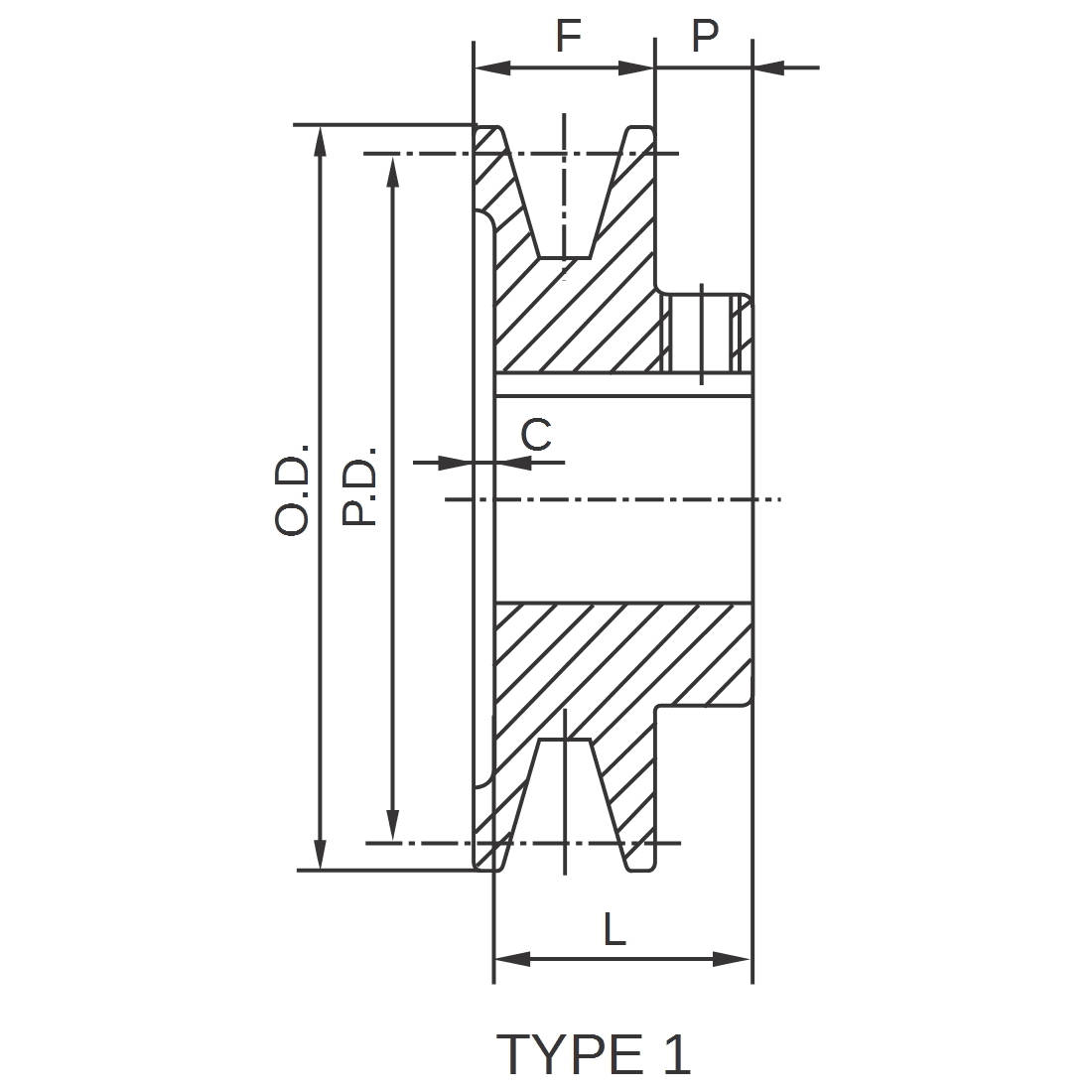

Sheave Cross Section AK
Outside Diameter 2.00
Pulley Diameter “A” 1.80"
Pulley Diameter “3L” 1.46"
Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.3 lbs

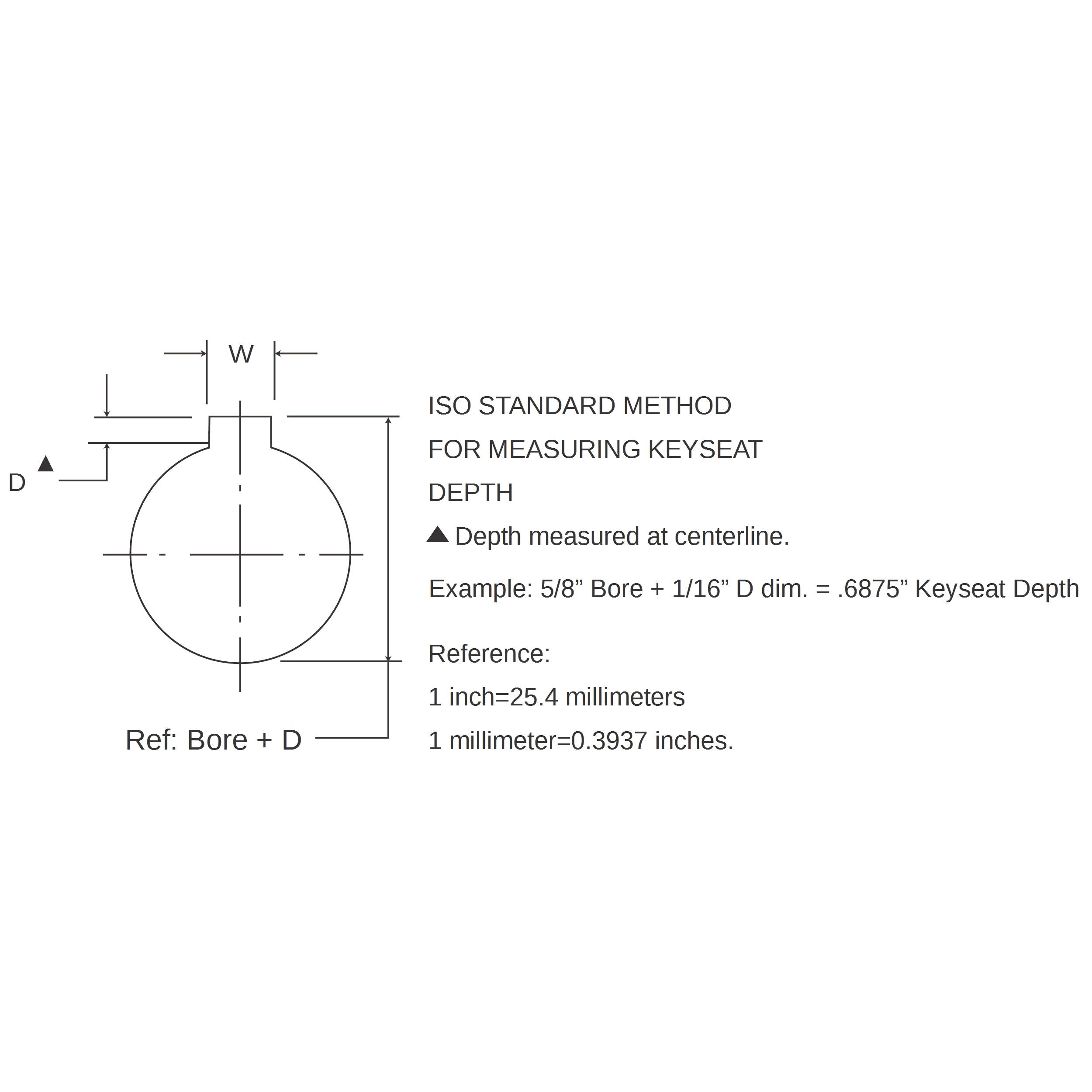

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin China
