/Products/Pulleys & Sheaves/AK Single Groove/AK2012 2" X 3/4" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2012

AK2012 2" X 3/4" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK20X3/4

Available Stock: 1
Selected accessories will also be added to cart
$4.34 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK2012
AK20x3/4
Bore 3/4"
Sheave Cross Section AK
Outside Diameter 2.00"
Pulley Diameter “A” 1.80"
Pulley Diameter “3L” 1.46"

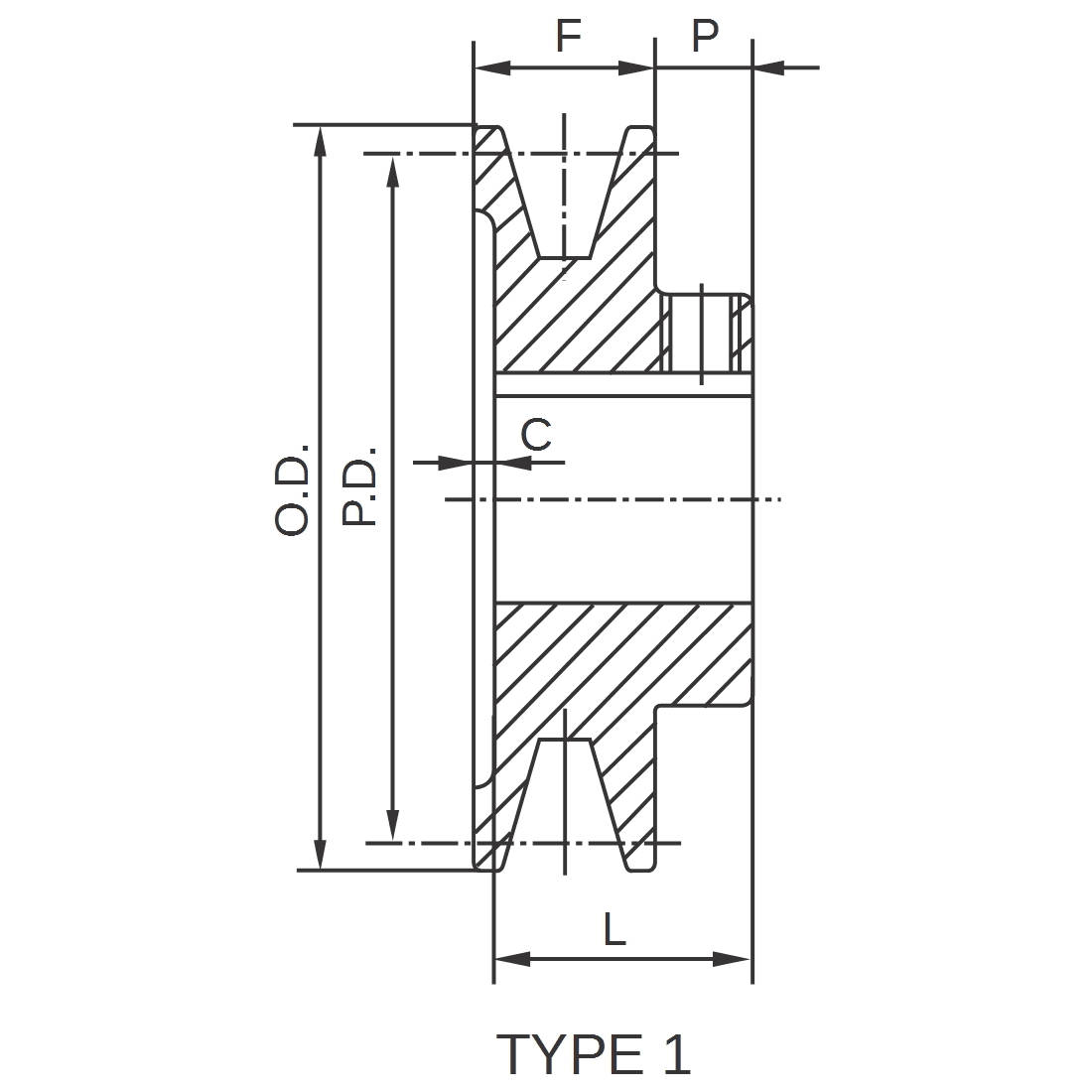

Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.3 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
