/Products/Pulleys & Sheaves/AK Single Groove/AK2208 2.20" X 1/2" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2208

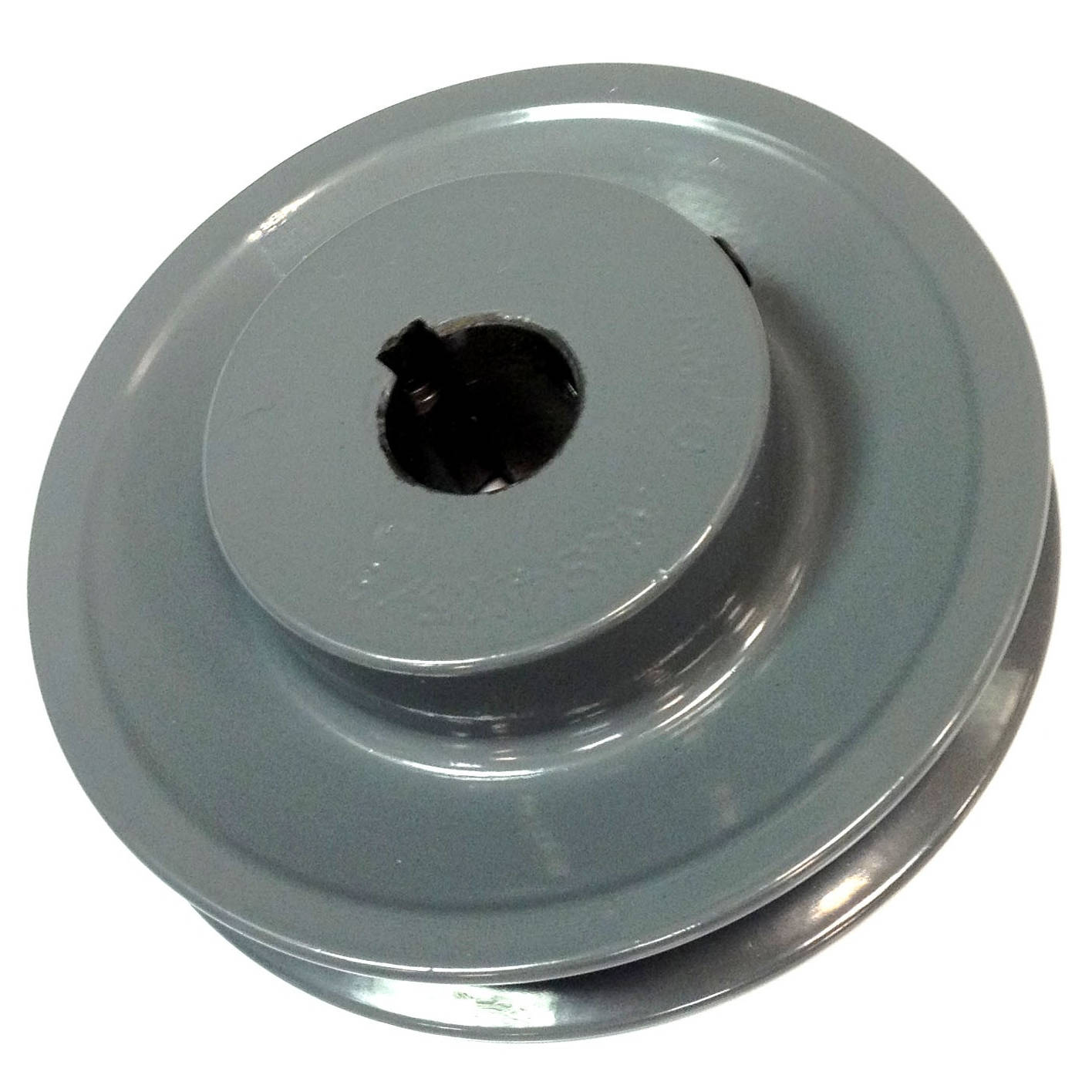

AK2208 2.20" X 1/2" AK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: AK22X1/2

Available Stock: 2
Selected accessories will also be added to cart
$7.92 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand NSPT
Part Number AK228
Bore 1/2"
Sheave Cross Section AK
Outside Diameter 2.20"
Pulley Diameter “A” 2.00"
Pulley Diameter “3L” 1.66"
Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.5 lbs

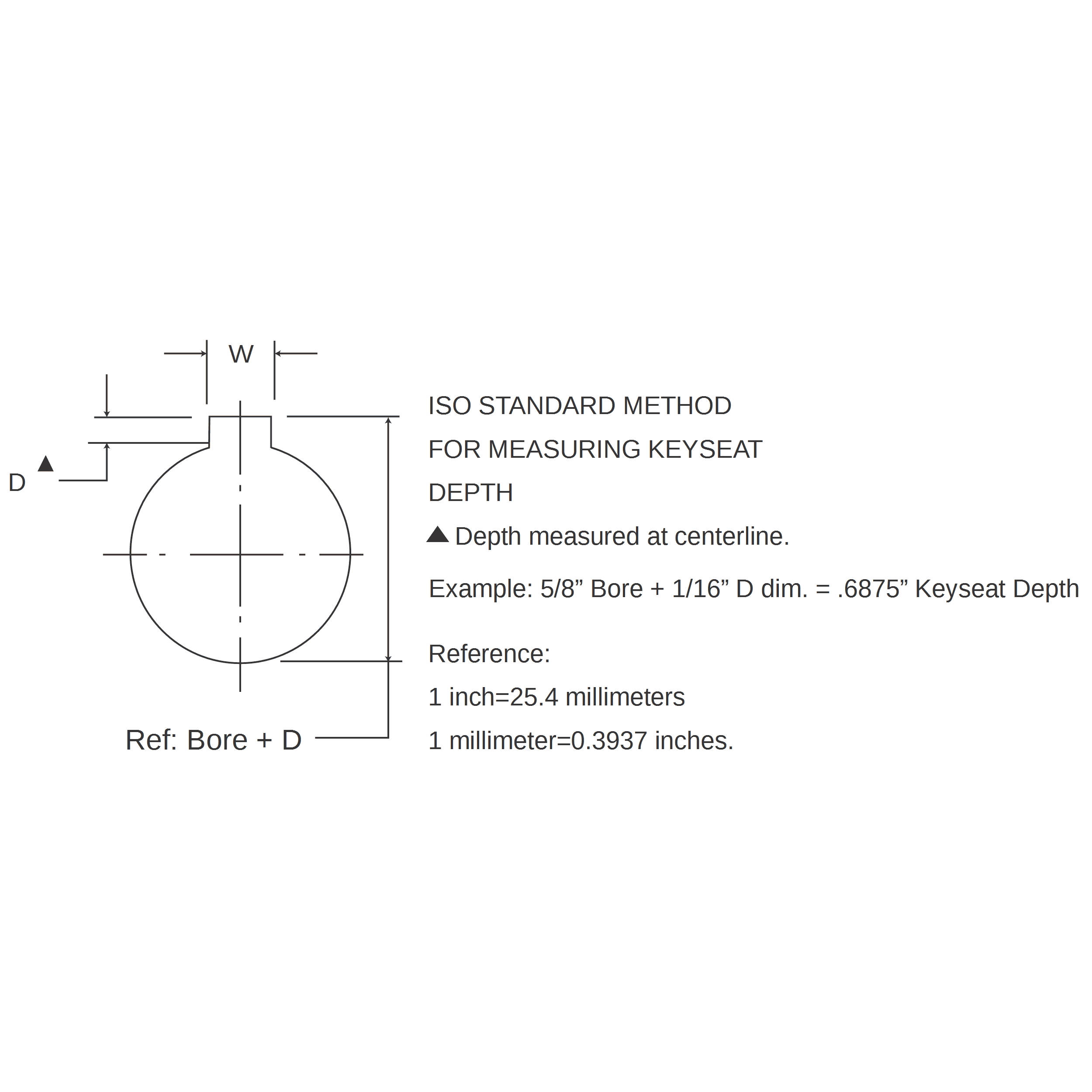

Keyseat (WxD) None
Set Screw(s) Yes, 2
Country of Origin Various
