Product ID: AK2210

AK2210 AMEC 2.20" X 5/8" AK Single Groove V-Pulley

MFG: AMEC Industry, Inc
MFG Part Number: AK2210

Temporarily out of stock
Selected accessories will also be added to cart
$8.94 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK2210
Bore 5/8"
Sheave Cross Section AK
Outside Diameter 2.20"
Pulley Diameter “A” 2.00"
Pulley Diameter “3L” 1.66"

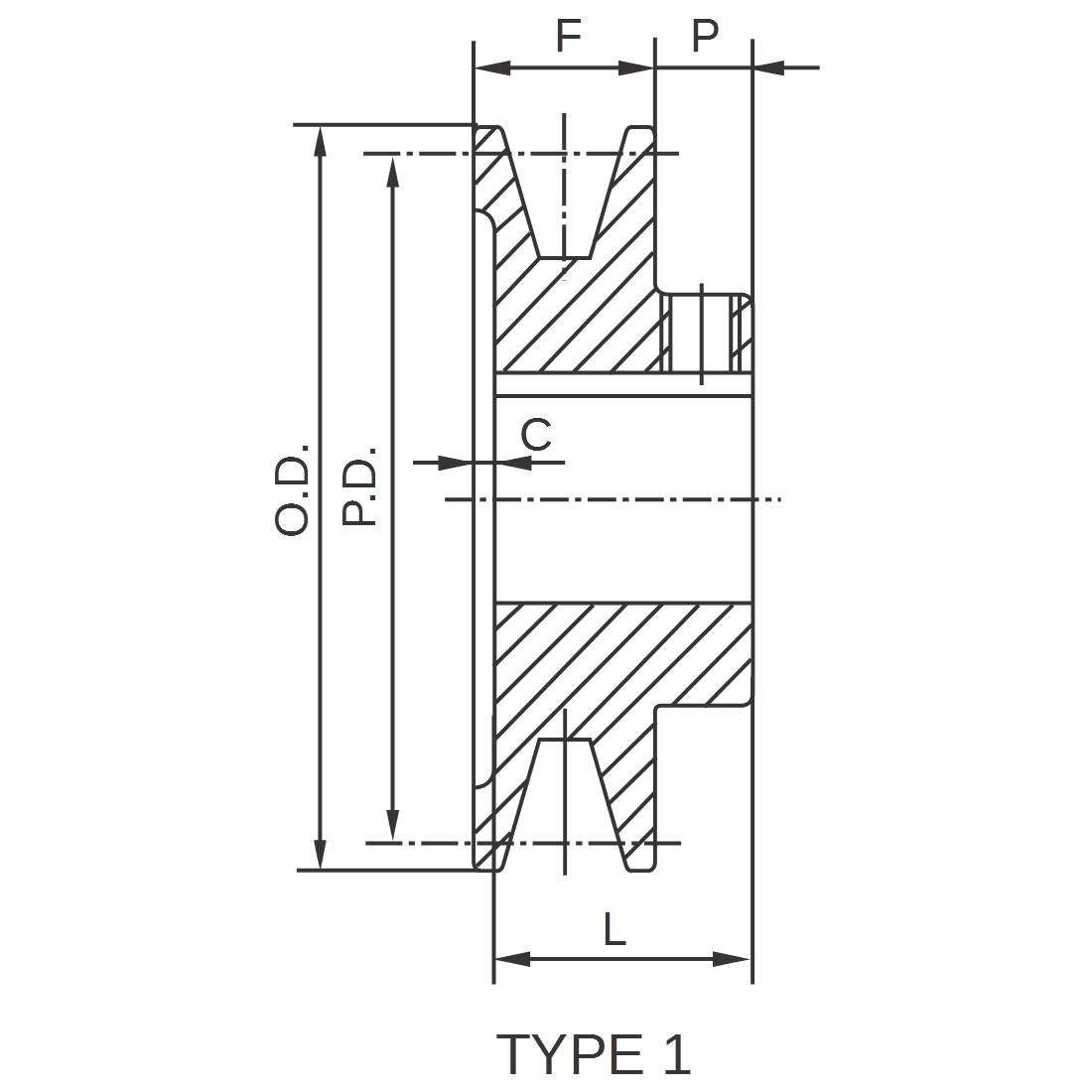

Type 1
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.5 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
