/Products/Pulleys & Sheaves/AK Single Groove/AK2808 2.8" X 1/2" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2808

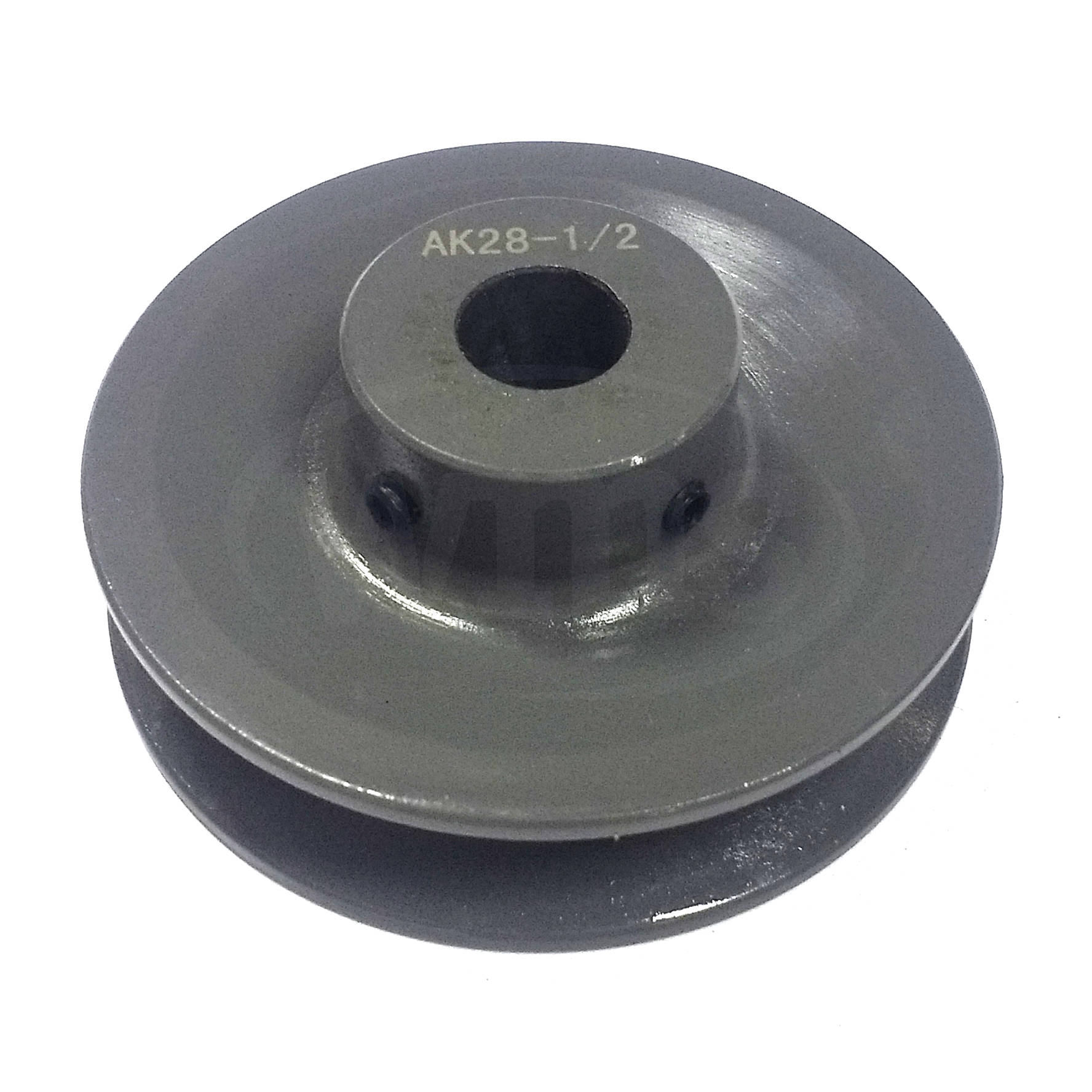

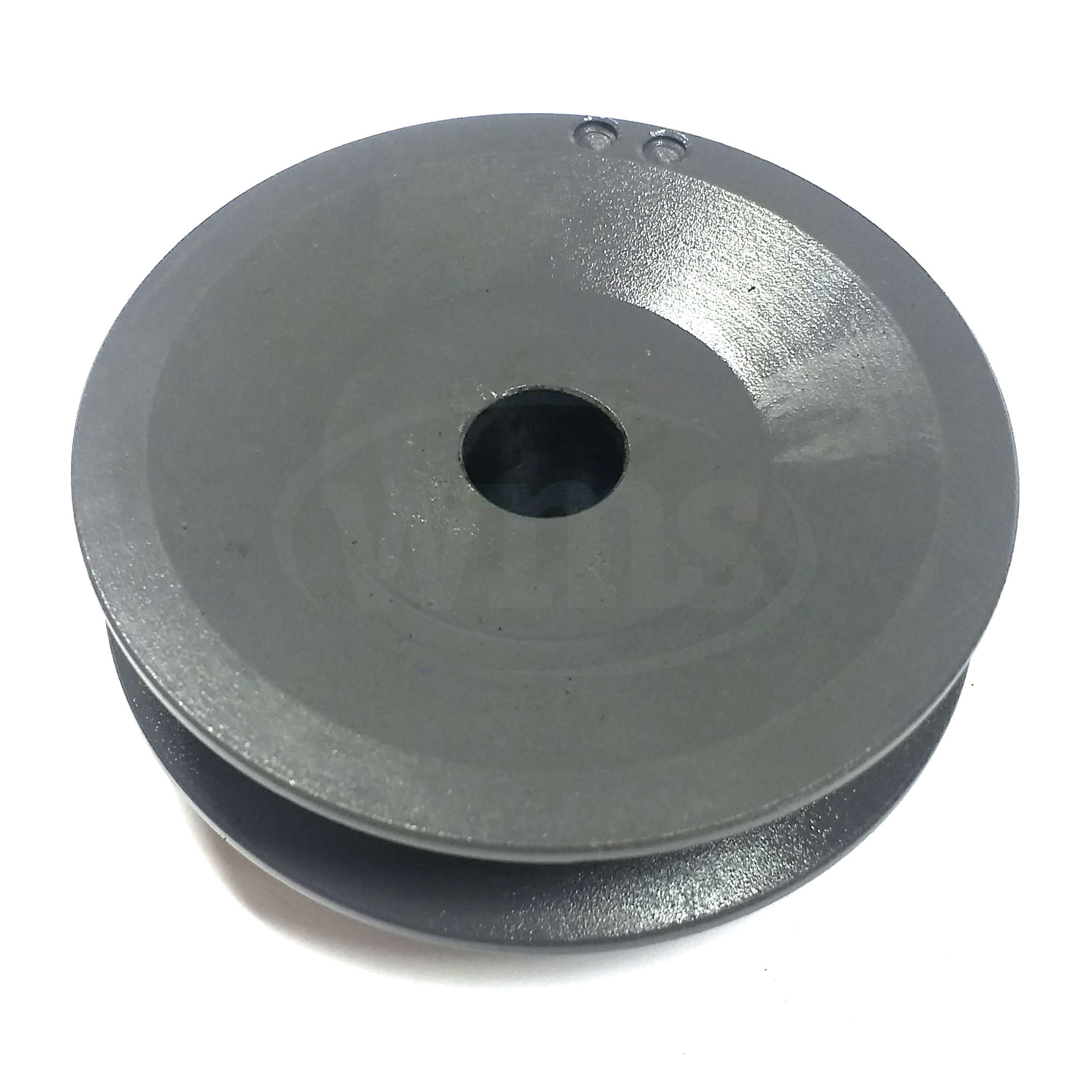

AK2808 2.8" X 1/2" AK Single Groove V-Pulley

MFG: Leeson Electric
MFG Part Number: AK28X1/2

Selected accessories will also be added to cart
$7.55 / Each
Quantity:

Available Stock: 2

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK28x1/2
AK2808
AK288
Bore 1/2"

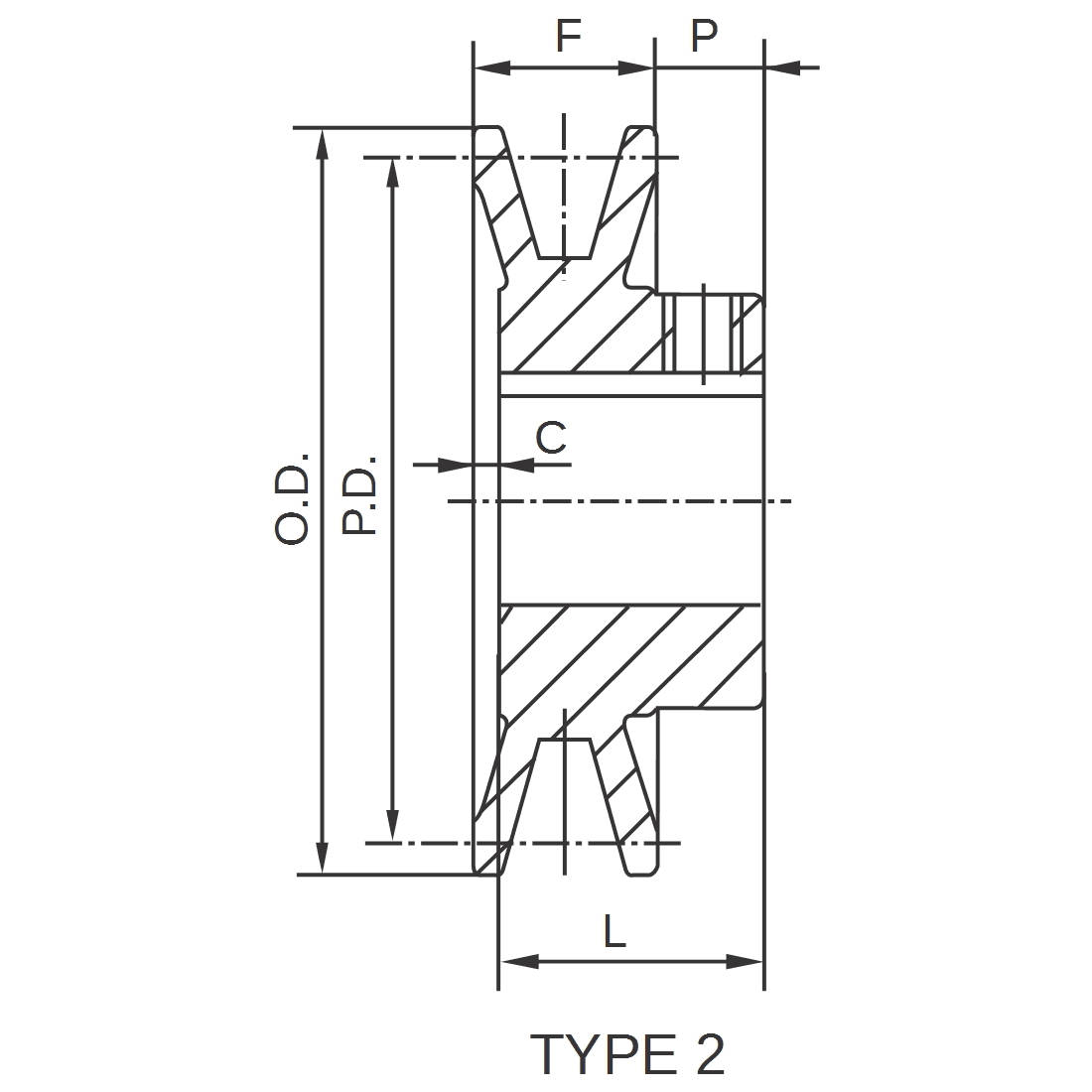

Sheave Cross Section AK
Outside Diameter 2.80"
Pulley Diameter “A” 2.60"
Pulley Diameter “B” 2.26"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) None
Set Screw Yes, 2
Country of Origin China
UPC 624832030235
