/Products/Pulleys & Sheaves/AK Single Groove/AK2810 2.8" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2810

AK2810 2.8" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK28X5/8

Available Stock: 4
Selected accessories will also be added to cart
$8.64 / Each
Quantity:

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK28x5/8
AK2810
Bore 5/8"

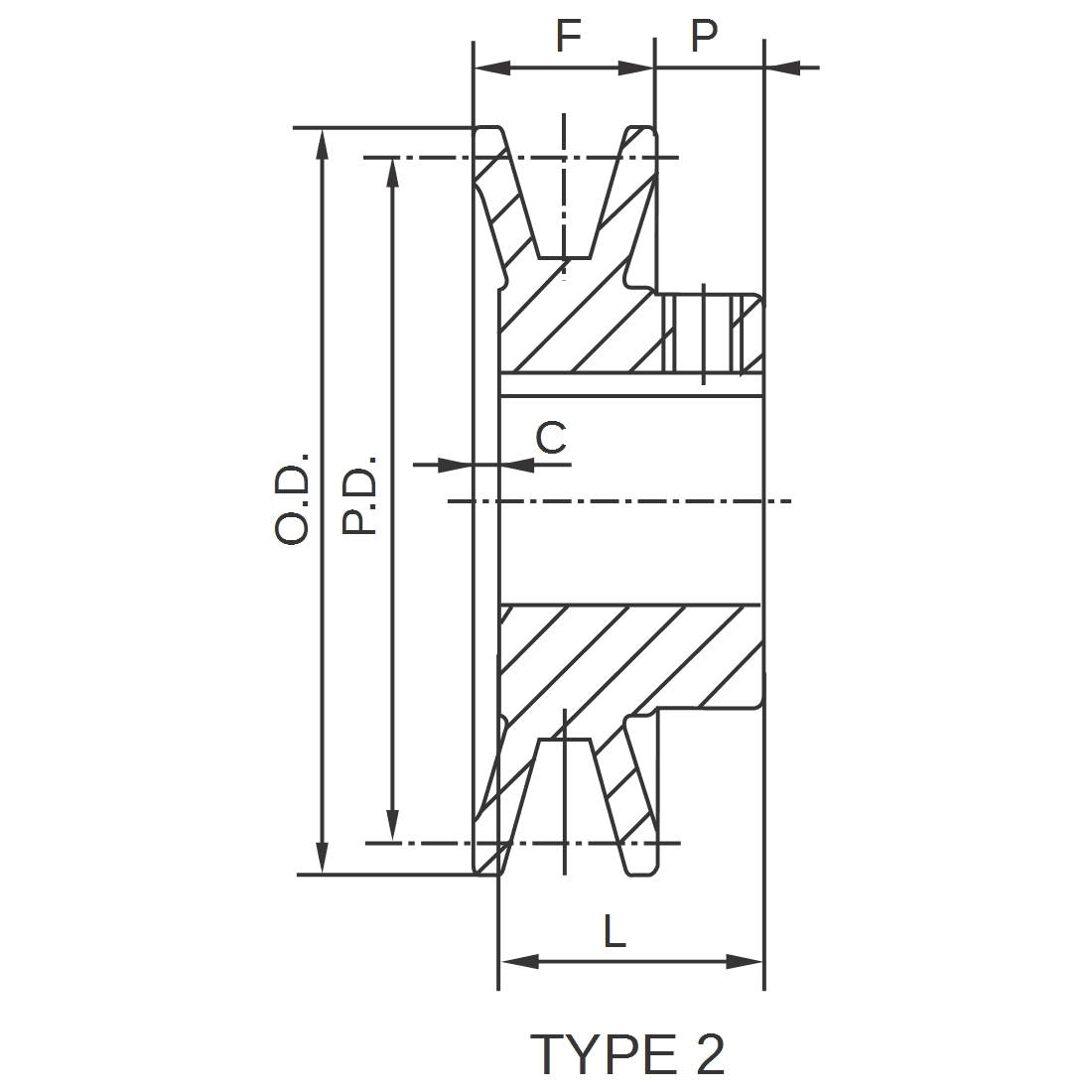

Sheave Cross Section AK
Outside Diameter 2.80"
Pulley Diameter “A” 2.60"
Pulley Diameter “3L” 2.26
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw Yes, 2
Country of Origin China
