/Products/Pulleys & Sheaves/AK Single Groove/AK2812 2.8" X 3/4" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK2812

AK2812 2.8" X 3/4" AK Single Groove V-Pulley

Selected accessories will also be added to cart
$6.85 / Each
Quantity:

Available Stock: 1

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number AK2812
AK28X3/4
Bore 3/4"

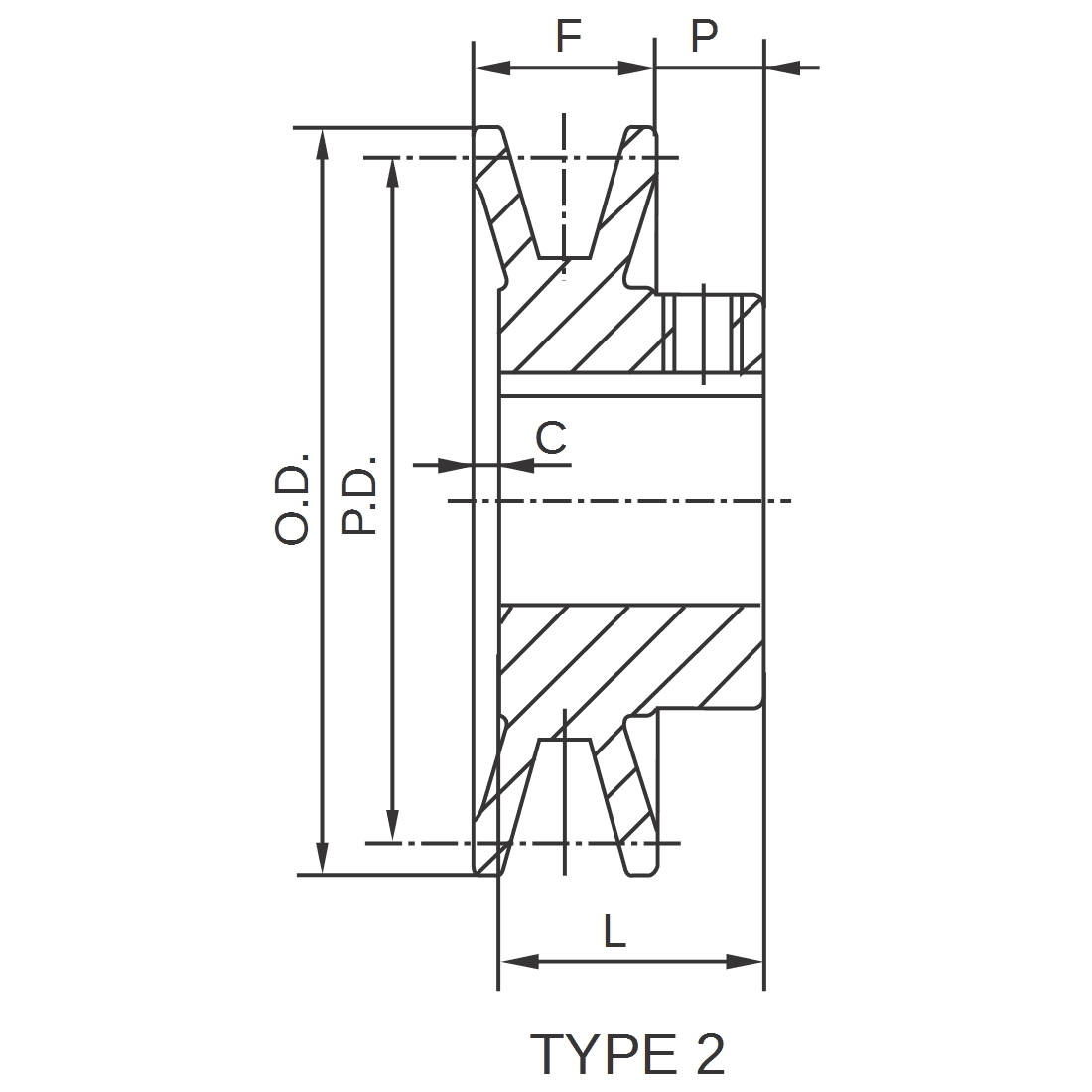

Sheave Cross Section AK
Outside Diameter 2.80"
Pulley Diameter “A” 2.60"
Pulley Diameter “3L” 2.26"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs

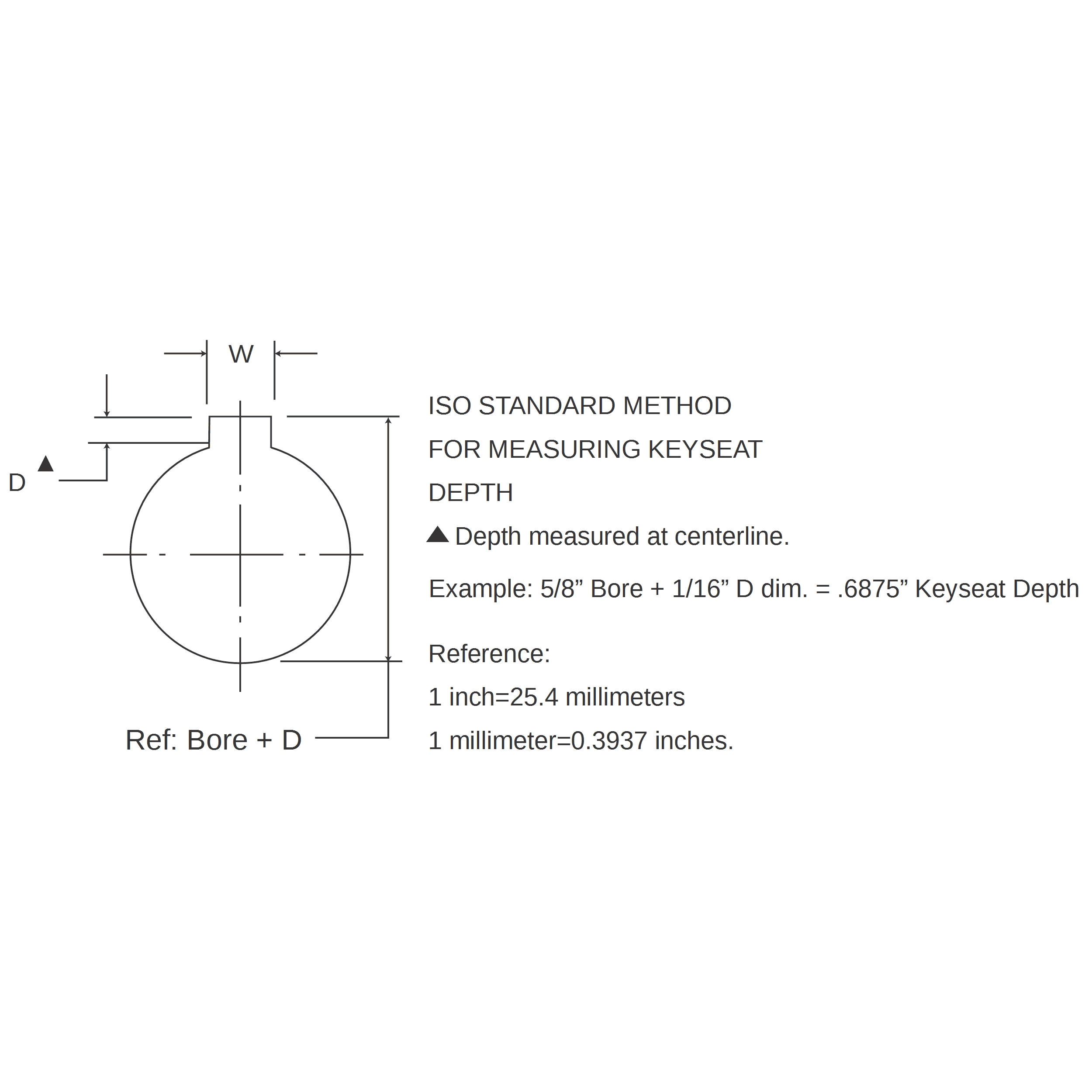

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
