Product ID: AK2814

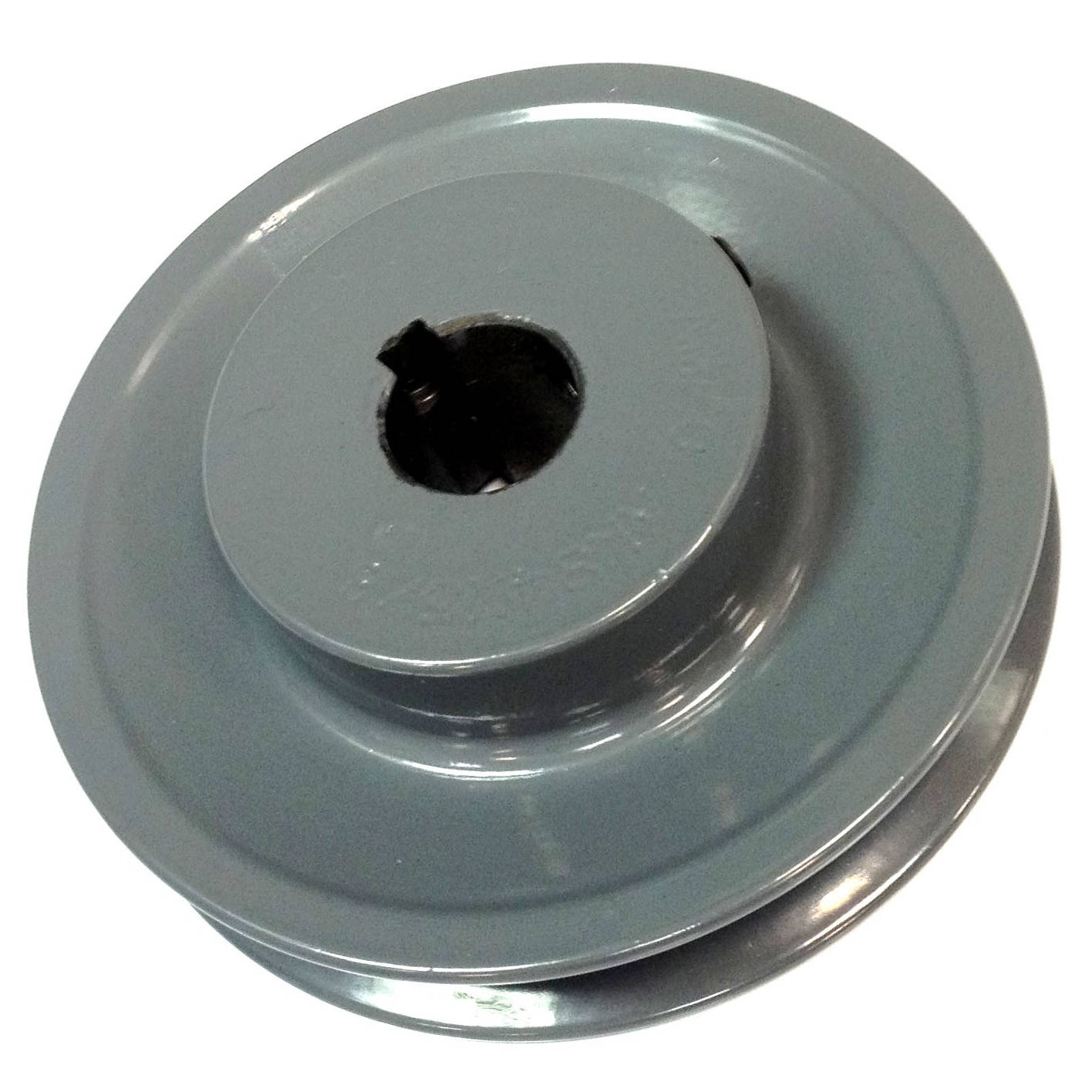

AK2814 2.8" X 7/8" AK Single Groove V-Pulley

MFG: Maska (Baldor)
MFG Part Number: AK28X7/8

Temporarily out of stock
Selected accessories will also be added to cart
$10.96 / Each


• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Maska (Baldor)
Part Number AK2814
Bore 7/8"

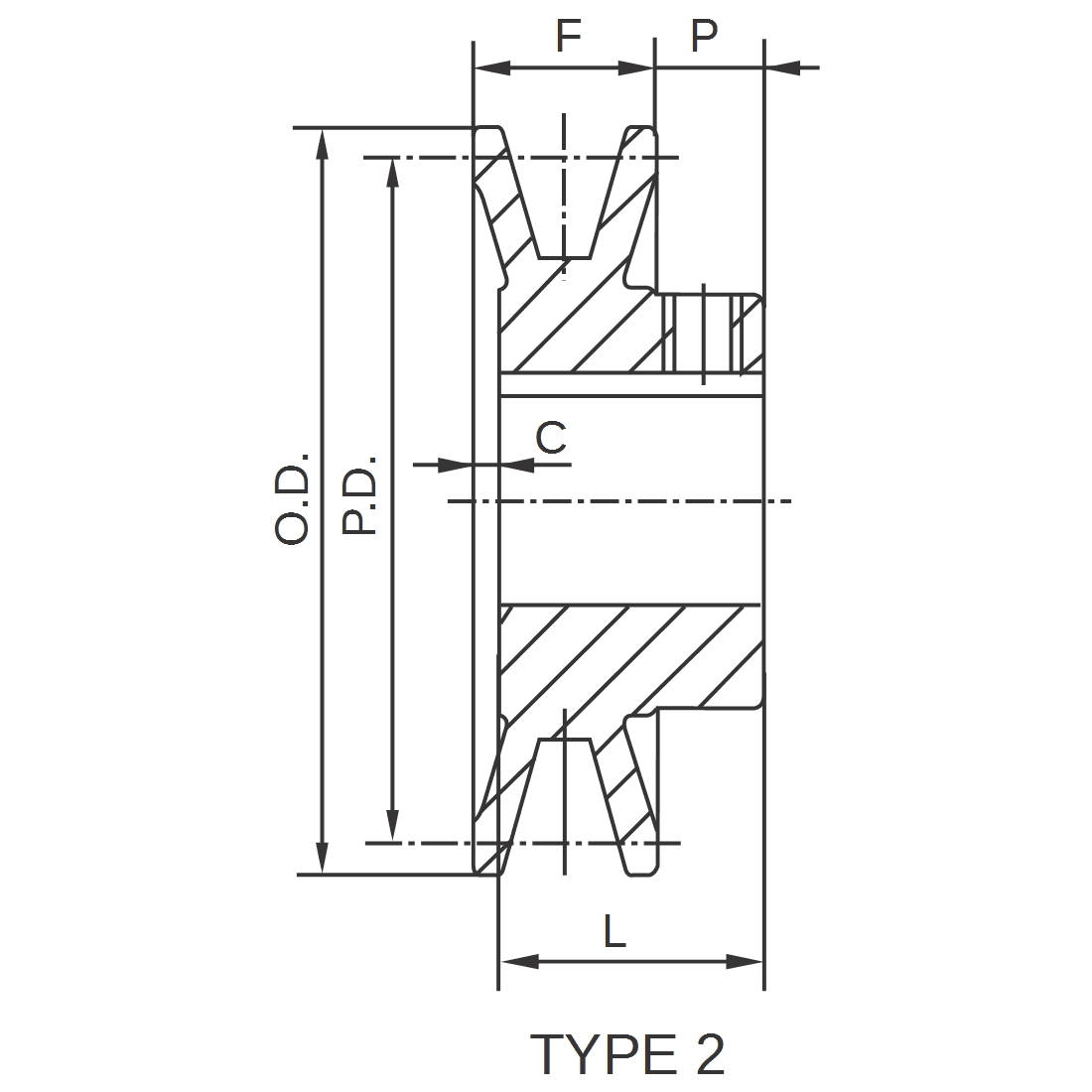

Sheave Cross Section AK
Outside Diameter 2.80"
Pulley Diameter “A” 2.60"
Pulley Diameter “3L” 2.26"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs
Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
